| Year | 2021 |
|---|---|
| Make | Toyo |
| Model | Si-4006S/J450EU |
Description |
400 Ton 45.3 oz Shot Size Electric Injection Molding Machine |
| Reference # | 8074104 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

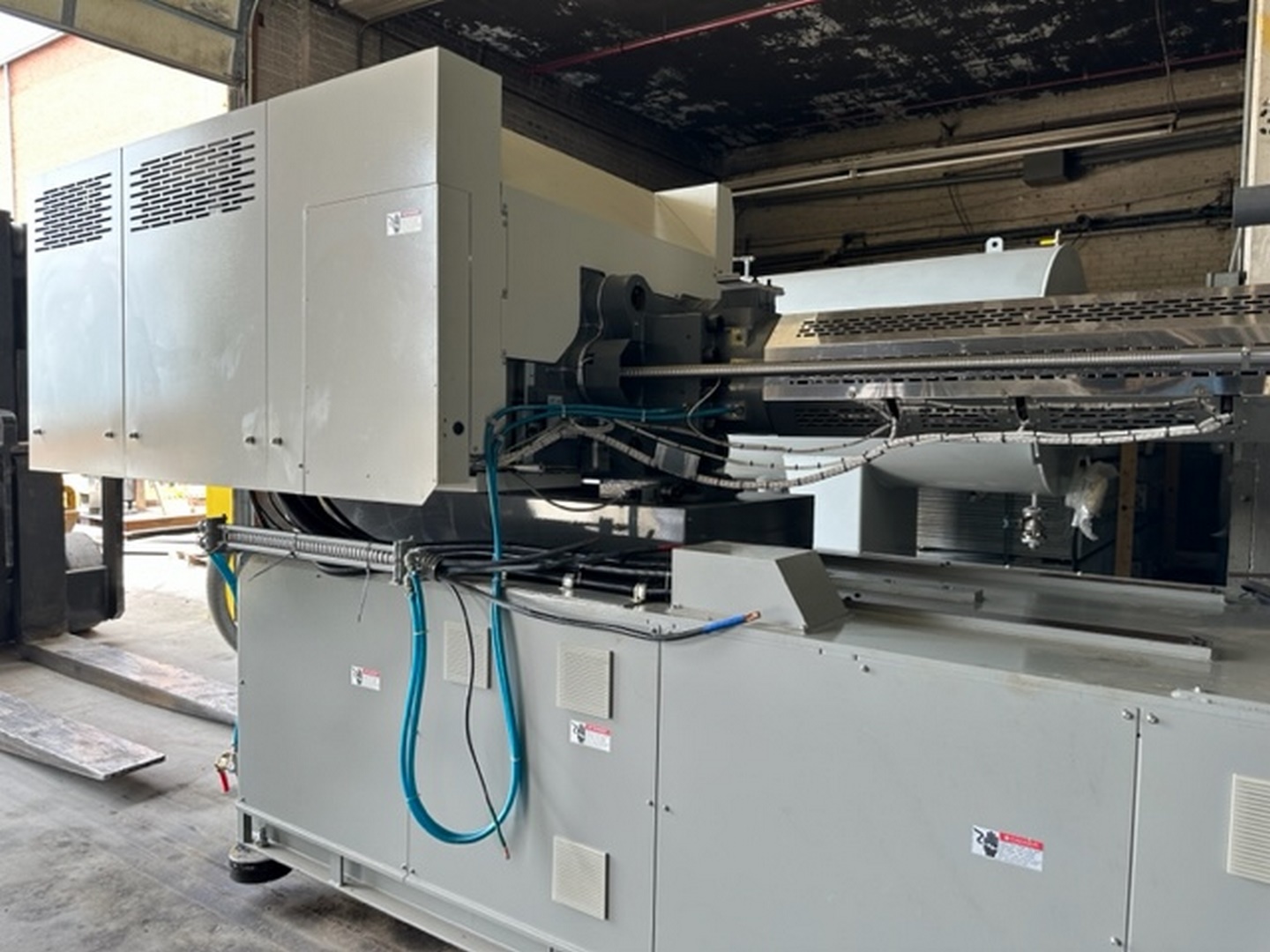

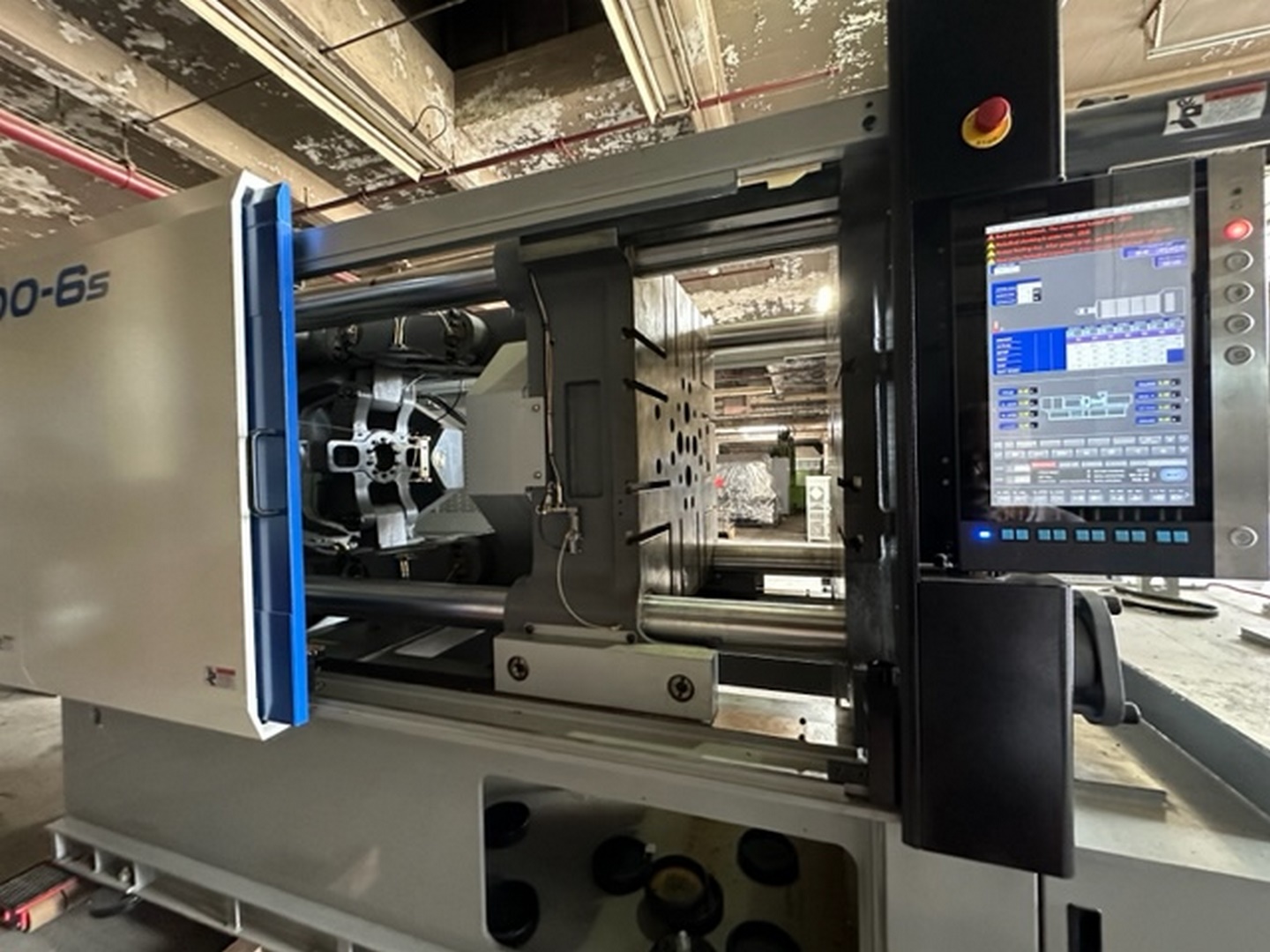

Used Toyo Si-4006S/J450EU (2021) Injection Molding Machine for Sale. This pre-owned Toyo plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Toyo Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
400 Ton |
|---|---|
| Shot Size |
45.3 oz |
| Tie Bar Spacing |
31.88" x 31.88" |

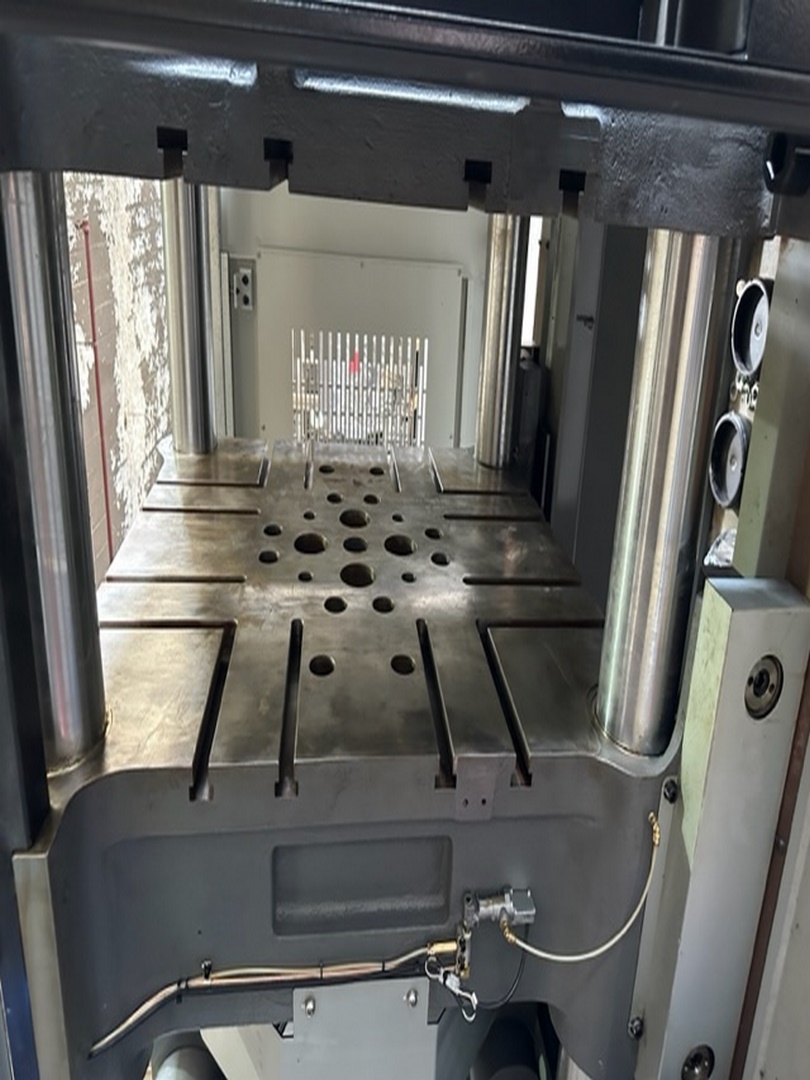

| Platen Size |
41.33" x 41.33" |
| Min /Max Mold Height |
11.81" / 30.31" |
| Clamp Stroke |
27.55" |
| Ejector Stroke |
5.9" |

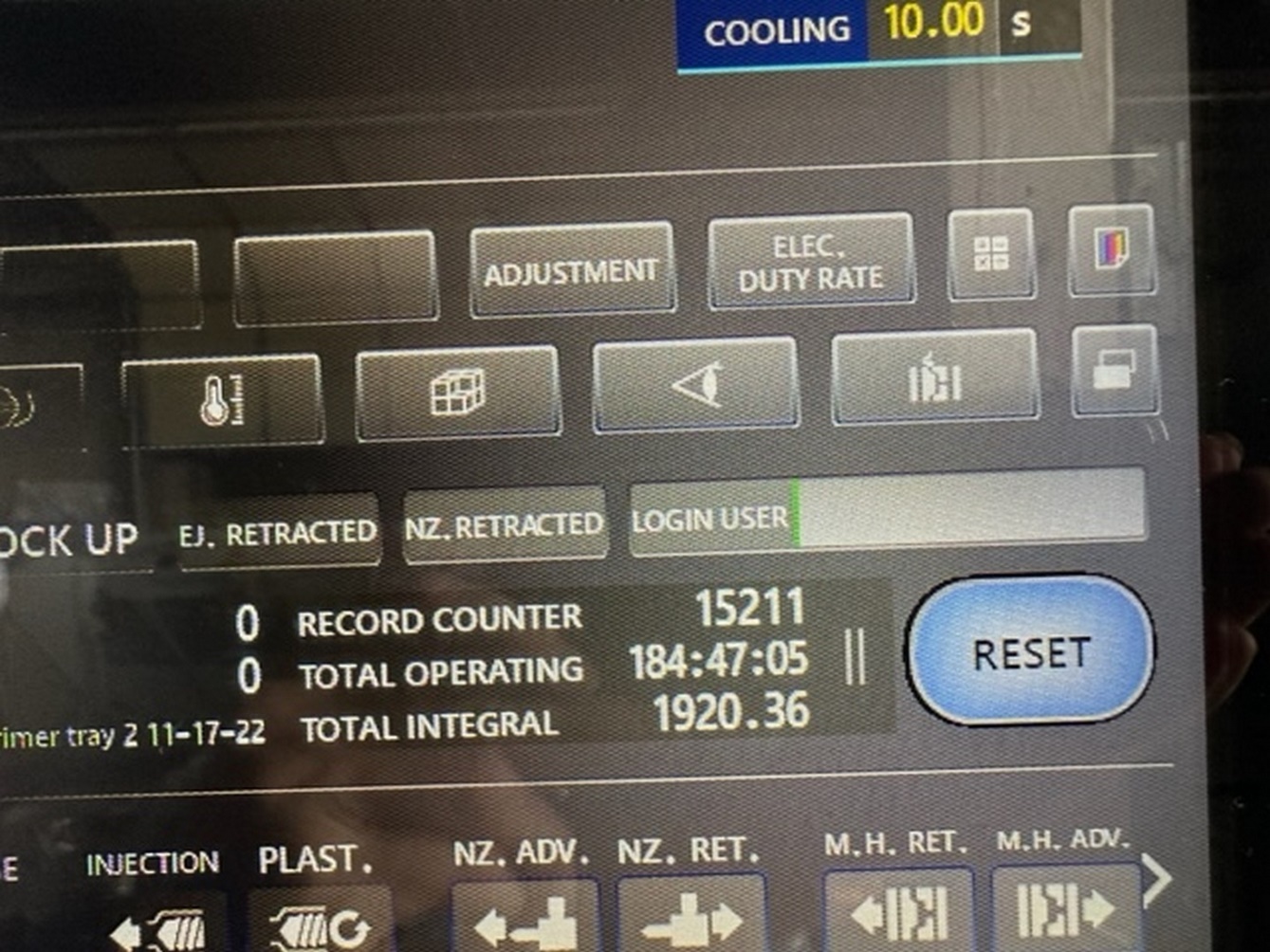

| Control |
System 800 |
| Machine Dimensions |
300" x 74.4" x 86.73" |
| Machine Weight |
49,000 Lbs |
Features
|
3-Tier Light |
75 KVA Transformer |
|
Double Line Air Blow |
Full SPI Robot Interface |
|
Less Than 200 Hours |
Premium Bimetallic Barrel with Colmonoy 56 Screw |
|
Premium Free Flow Valve Assy |
Wired for Double Core Pull Unit |
