| Year | 2022 |
|---|---|
| Make | Cincinnati |
| Model | 175BX10 |
Description |

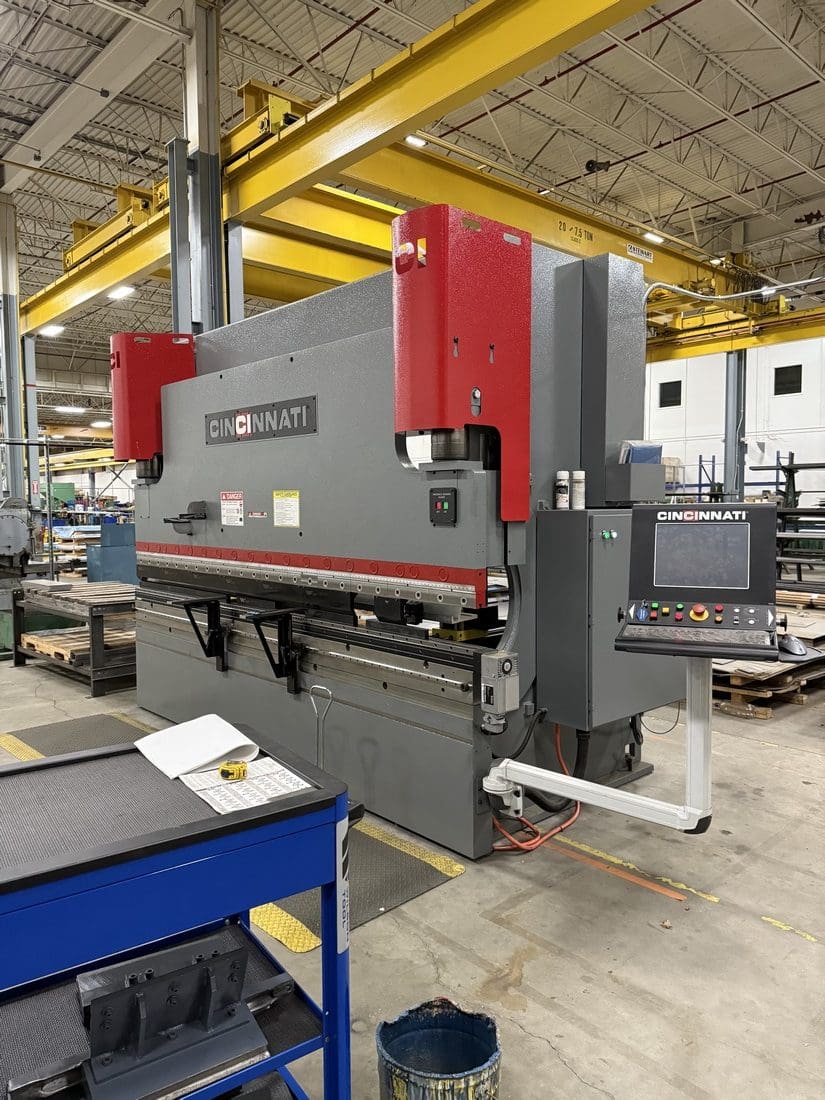

175 Ton x 12' Hydraulic Press Brake |
| Reference # | 8076962 |
Used Cincinnati 175BX10 (2022) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in The United States. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
175 Ton |
|---|---|
| Overall Length of Bed |
12' |
| Control |
Cincinnati PC Based CNC |
| Distance Between Housings |
126" |
| Back Gauge |
2 Axis |
| Stroke |
10" |
| Throat Depth |
16" |
| Open Height |
17" |
| Power Requirement |
460/3/60 |
| Resolution |
.0004" |
Features
|
Programmable Forming Modes (Angle - Position - Tonnage) |
Programmable Ram Tilt - Clamp - Retract Function |
|
Programmable Speeds (Forming and Return) |
Programmable Up Stroke and Down Stroke Stop |
|
Remote Monitoring Capability |
15.1" TFT LCD Flat Panel Display with Touchscreen Interface |
|
4" Flat-Top Filler Block (3.5" Tall x 4" Wide / Set Screws on 6" Centers) |
Tooling Package (Each Profile 1-Set Sectionalized / 7-Segments of 18" = Total Length of 143.88") |
|
Auto Tool Load Calculation |
Automatic Ram Leveling System |
|
Bolt-on Ram Nose (Sectionalized and Hardened) |
Graphical Tool Interface |
|
Heavy Duty Backgauge (24" X-Axis / 8" Manual R-Axis) |
PC Based Operator Control with Windows Operating System |
