Year 2022
Make Expand
Model Gen Turn SL-20 Y2

Description

Hybrid 8-Axis CNC Swiss Lathe
Reference # 8072086

Price

Activate PricingInquire Now

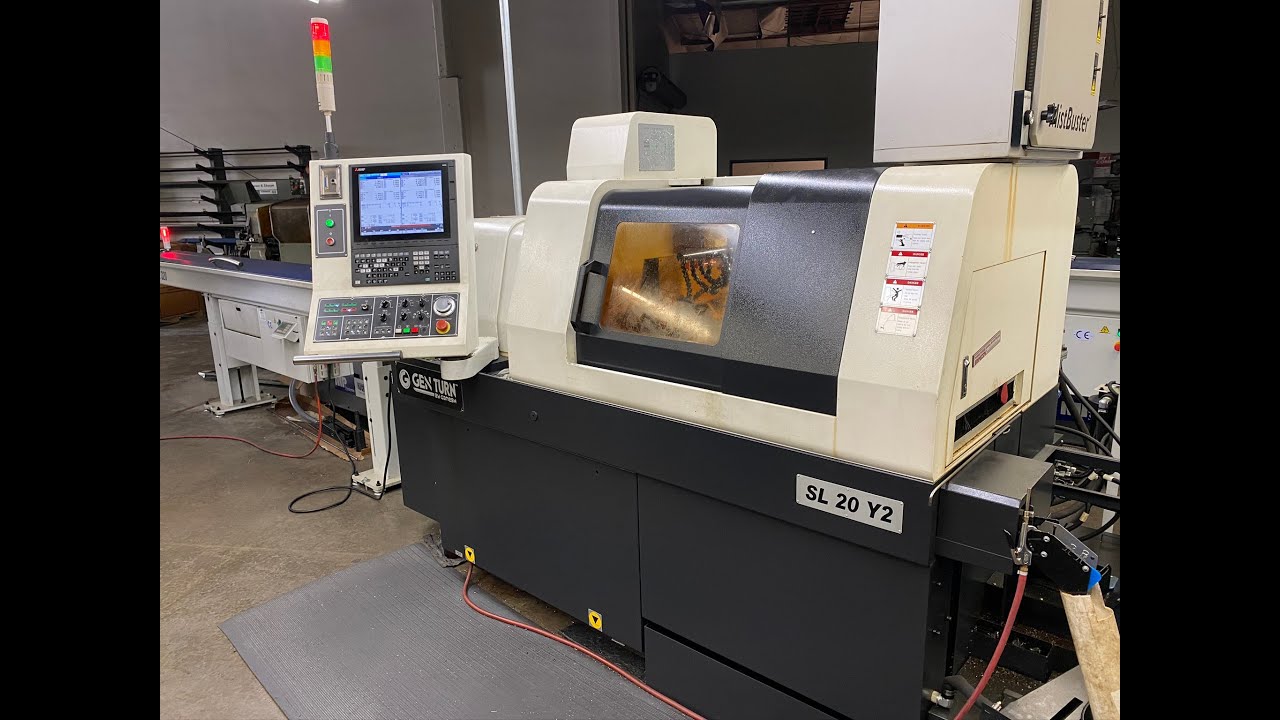

Expand Gen Turn SL-20 Y2 (2022) CNC Swiss Lathe for Sale.  This new Expand CNC swiss lathe is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Expand Swiss Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Control

Mitsubishi M830

Live Tooling

C-Axis Live Tooling, Y-Axis

Sub-Spindle

Yes

Main Spindle Speed

10,000 RPM / 5 HP

Main Spindle

17 Tool Positions, 5 Live Tools

Main Spindle Headstock Stroke

9.84"

Sub Spindle Speed

8,000 RPM / 5 HP

Sub Spindle

13 Back Working Tool Positions, 3 Live Tools

Chip Removal

Chip Conveyor

Power Requirement

220/3/60 - 53 Amps (20 KVA)

Machine Dimensions

118" x 55" x 78"

Machine Weight

5,954 Lbs

Features

Automatic Barfeeder Interface

Coolant Flow Confirmation

Cutoff Confirmation Sweep Arm Switch

Cutting Oil Chiller System

Edge Technologies Scout 320 12' Automatic Barloader (Installed)

Enclosure Pre-Drilled and Tapped for High Pressure Coolant

Parts Catcher and Finished Part Conveyor with Output Ramp & Collection Bin

Rigid Synchronous Tapping

Smooth Surface 15” Color Screen with Full 3D Graphics Control

Sub Spindle Programmable Air Blast and Finished Part Ejector

Synchronous Rotary Guide Bushing (Removable for Short Parts)

Synchronous Rotary Guide Bushing Holder

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
