| Year | 2022 |
|---|---|
| Make | Ficep |
| Model | Energy |
Description |
Automatic CNC Plate Drilling and Milling |
| Reference # | 8077304 |

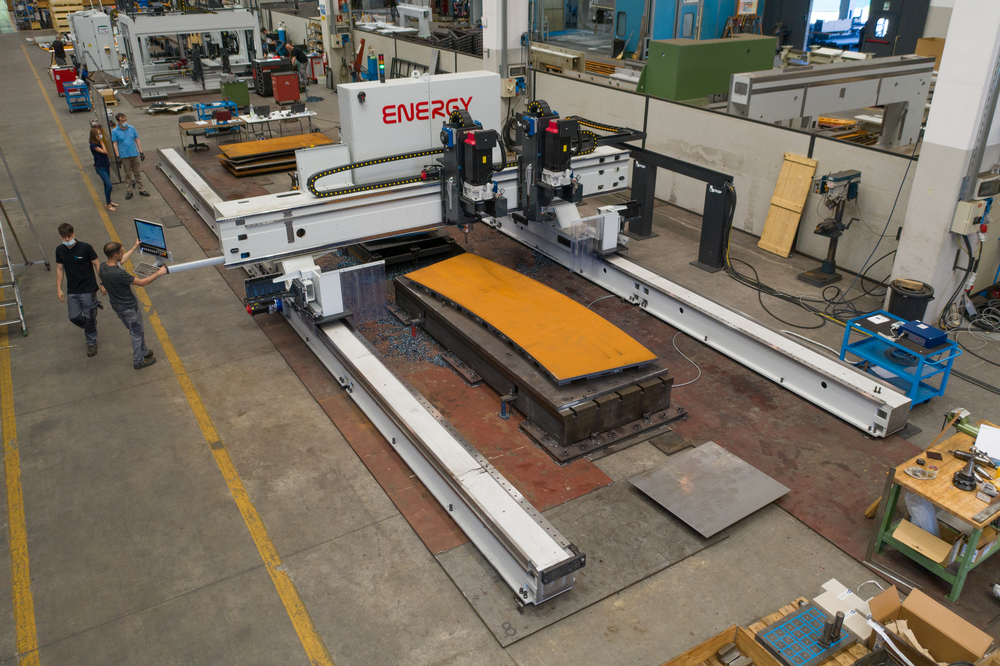

Used Ficep Energy
Specifications
| Plate Thickness |
10 - 140 mm |
|---|---|
| Plate Width |
100 - 3200 mm |
| Plate Max Length |
28000 mm |
| Max Diameter of Milling Tools |
300 mm |
| Max Drilling Thickness |
140 mm |
| Spindle Drive Performance (S1) |
40 kW |
| Spindle Rotation Speed |
5000 RPM |
| Spindle Drill Feed Rate |
40 - 1000 mm/min |
| Spindle Fast Approach/Return Speed |
20 mt/min |
| C-Frame Max Longitudinal Speed |
30 m/min |
| Mill Heads Cross Positioning Speed |
30 m/mi |
| Machine Weight |
25000 Kg |
| Power Requirement |
400V - 50Hz - 3 Ph |
Features
|
1 Spindle Per Vertical Drill Head |
2 Vertical Milling/Drilling Heads |
|
3D Graphics |
Automatic Device to Detect Piece Plate Orientation |
|
Drilling Programming |
Ficep Pegaso Control |
|
ISO 50 Big Plus Toolholder |
On Board Distribution System |
|
Tool Change Systems with 3 Positions |
Windows 10 Operative System |
*
