| Year | 2022 |
|---|---|
| Make | Haffner |
| Model | TT-425 |
Description |
Profile Double Head Mitre Saw |
| Reference # | 8077168 |

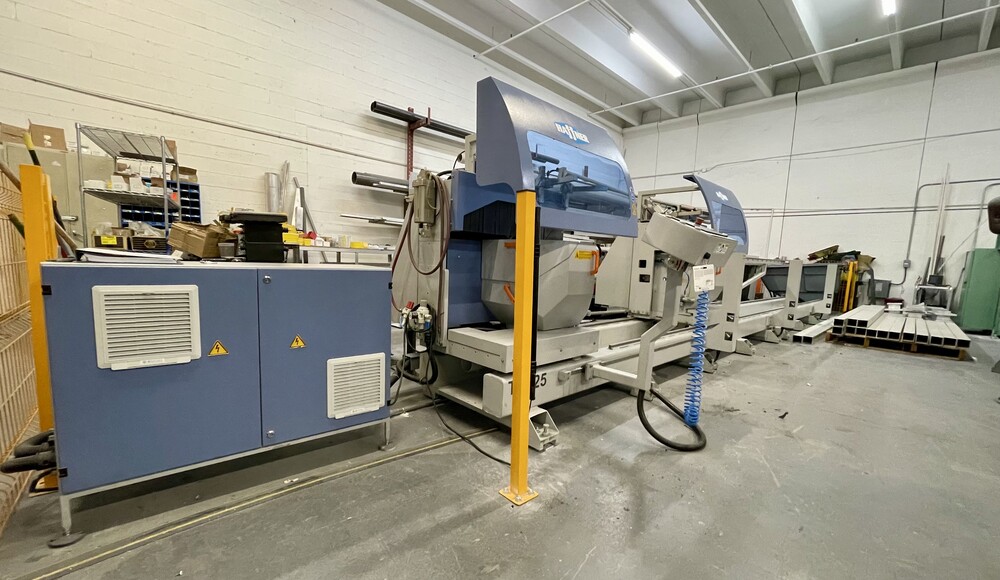

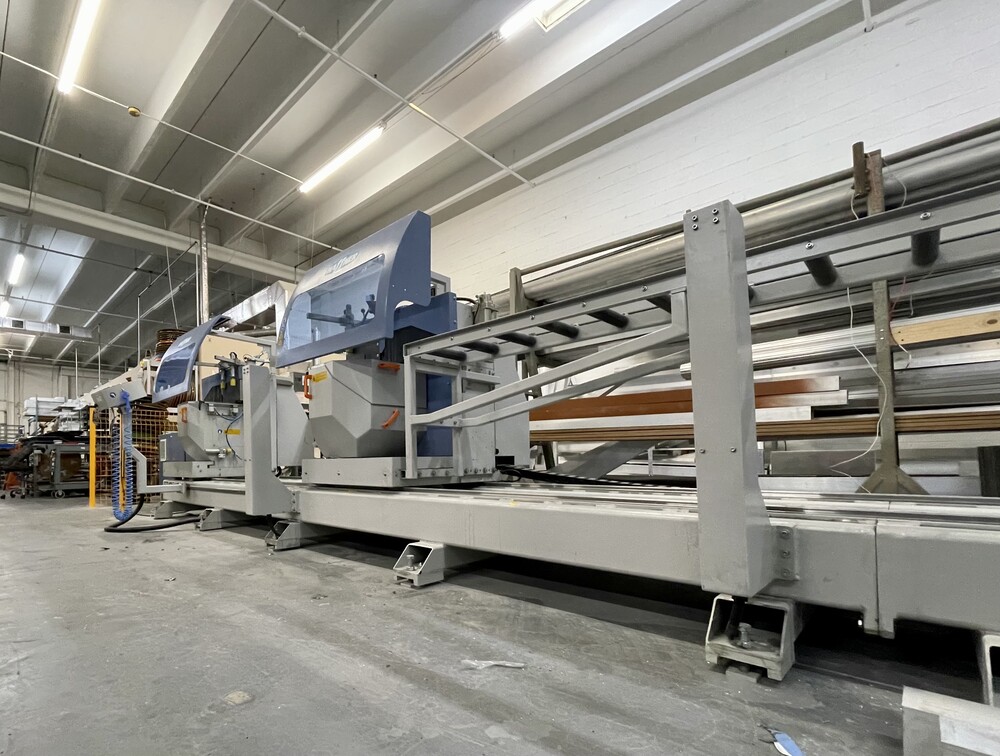

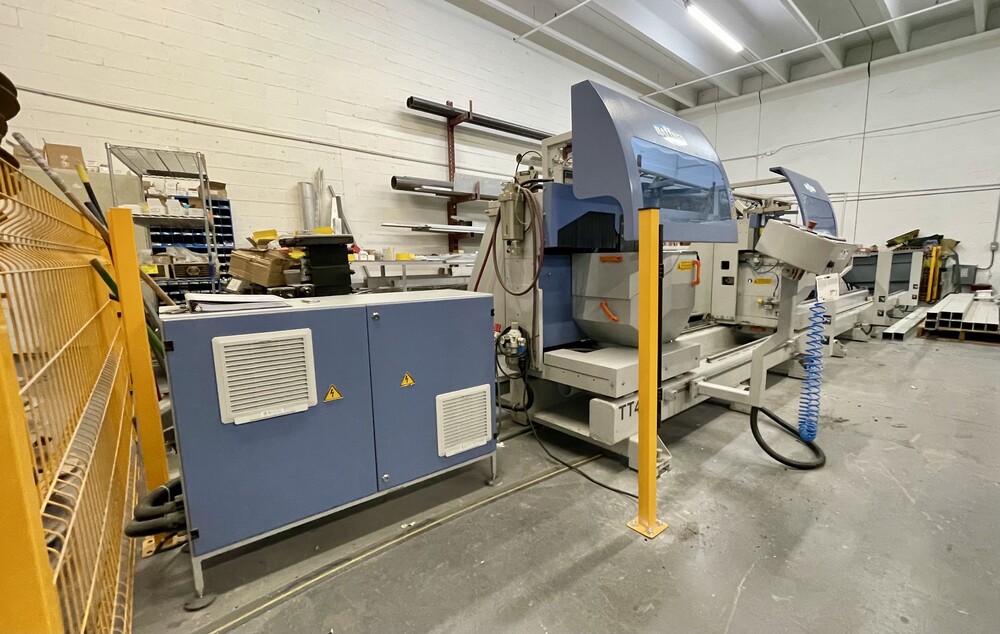

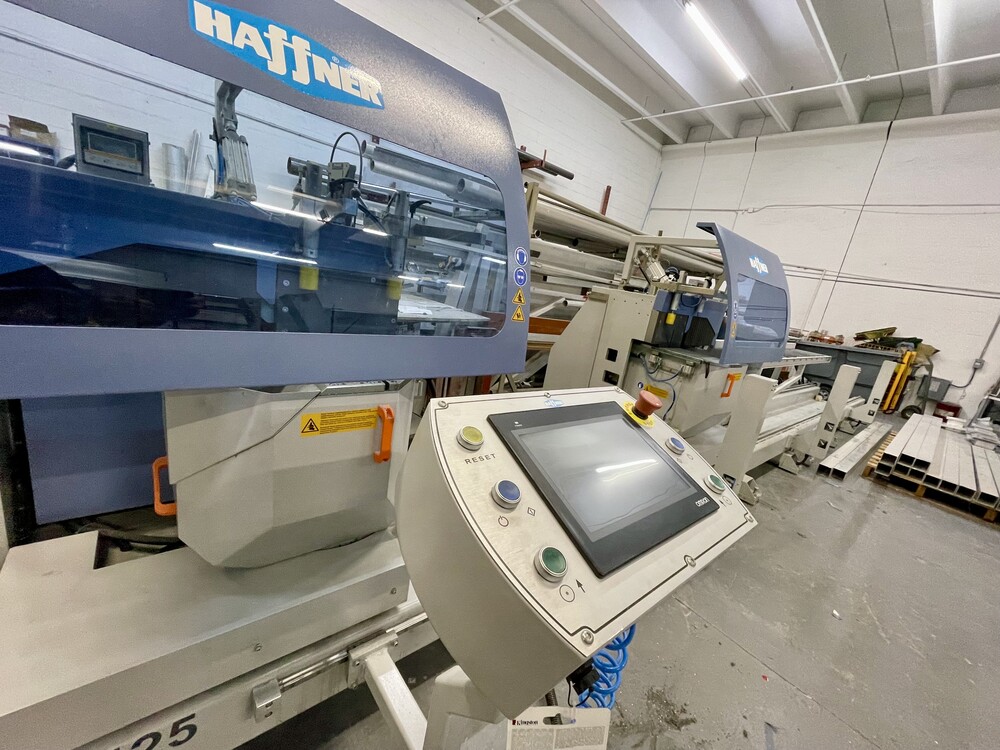

Haffner TT-425
Specifications
| Cutting Area |
13.1' x 19.6' x 24.6' |
|---|---|
| Pivot Angle Range |
90° to 22.5° (with Intermediate Stops) |
| Tilting & Pivoting Degree |
90° and 45° (by Pneumatic Cyclinder) |
| Saw Blade Motor |
5.36 HP x 2 |
| Saw Blade Speeds |
2,800 RPM / 3,400 RPM |
| Saw Blade Diameter |
18.7" |
| Min Cutting Length at 90° & 45° |
17.71" |
| Pivoting Range |
Inwards 90°- 22.5° with Accuracy up to ± 0.1° |
| Tilting Range |
Inwards Pneumatically 90°- 45° |
| Compressed Air Supply |
100 PSI (7 Bar) |
| Air Consumption per Working Cycle |
2.12 cu. ft. |
Features
|
Pneumatic Saw Blade Feed System with Adjustable Blade Feed Speed |
Standard Cutting Lengths |
|
Vertical and Horizontal Pneumatic Clamps |
Very Minimal Use / Very low Hours |
*
