| Year | 2022 |
|---|---|
| Make | Mopline |
| Model | Complete Profile Line For Thin Wall Irrigation Drip Tubing |
Description |
Extruder |
| Reference # | 8077280 |

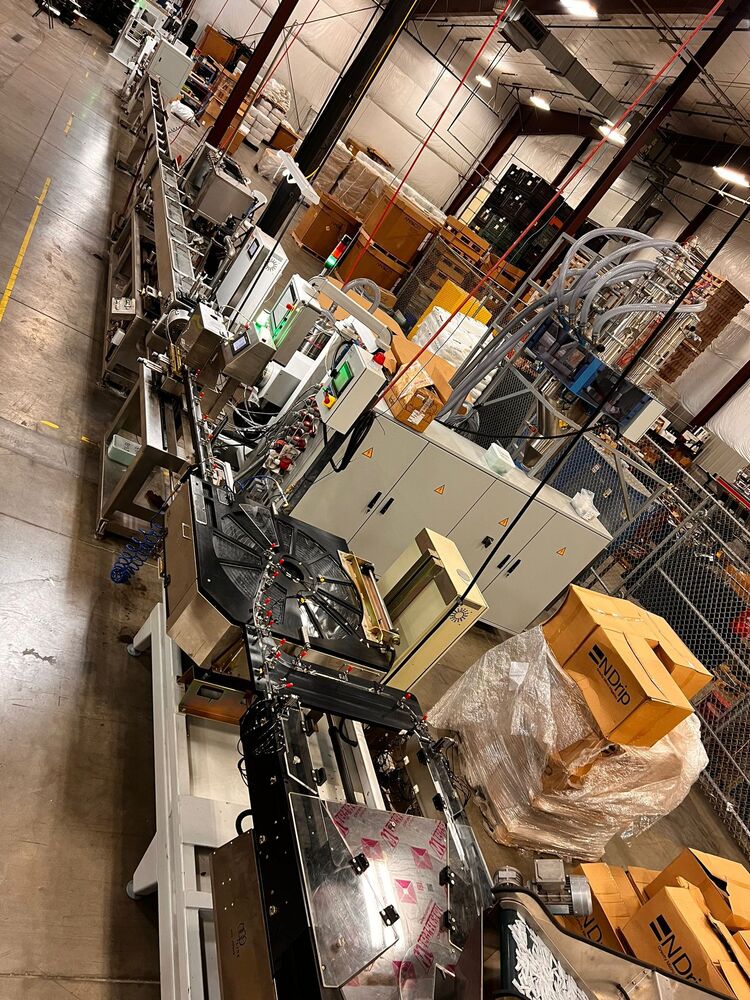

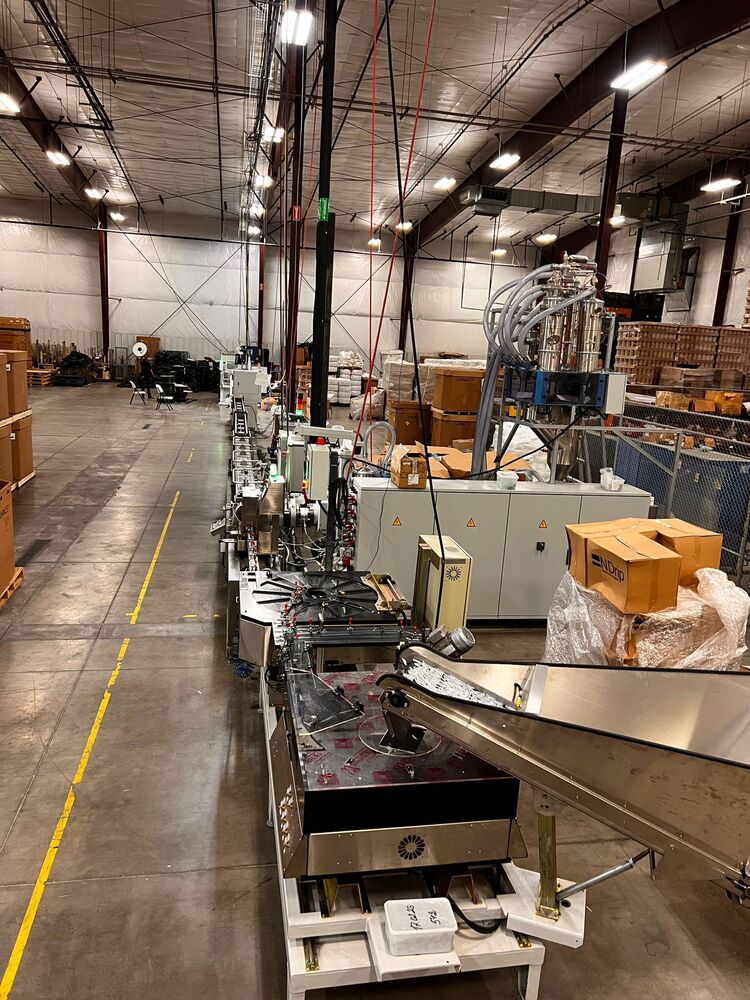

Used Mopline Complete Profile Line For Thin Wall Irrigation Drip Tubing (2022) Extruder for Sale. This pre-owned Mopline plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mopline Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
75 mm MFT 2022 |
|---|---|
| Air Cooled |
Yes |
| Number of Cooling Zones |
(5) Zones |
| Materials Processed |
HDPE / LDPE / LLDPE |
| Screw Output |
300-400 Kg/Hr for LDPE and LLDPE |
| Screw Speed |
HDPE Din 100 / Output 250-320 Kg/Hr |
| Gearbox |
Zambello |
| Gearbox Motor |
Siemens AG |
| Horsepower |
152 HP (114 kw) |
| Control |
Siemens Controller |
| Power Requirement |
480v - 3ph |
| Screen Changer |
Manual 90mm with Heater / Manual (2) Screen Switch |
| Tooling |
Die Tools for Pipe Products 22mm / 33mm / 44mm & Die Head tools < 50 mm Diameter |
| Bowel Feeder IFF800 |
Dripper Elevator / Bowel Feeder / RT & LT / Insertion Machine / Connecton / Dripper Type / Any Flat Dripper |
| Bowel Feeder IFF800 Accumulator |
23 Meter |
| Bowel Feeder IFF800 Speed |
Approximately 400-600 Dripper / Minute Vacuum Tank 500 Stainless Steel Const. / Vacuum Sensors / PLC Controller |
| Cooling Tanks |
(3) Stainles Steel Cooling Tanks |
| Cooling Tank Lengths (ea. / ft.) |
11' 5.79" |
| Minimum Spacing |
10cm |
| Perforator Options |
Driller / Electrical / Air |
| Controller |
PLC with Computer / Screen |
| Rate |
50m to 200m/Minute |
| Allowable Sizes |
Max Coil Width 35 cm / Diameter 55 cm |
| Thinkness Variations |
9 mil (22 mm) / 5 mil (12 mm) |
| Diameter Sizes |
Capable of Producing Pipe Diameters as Small as Spaghetti-Sized / Up to Approximately 45–50 mm /Depending on Selected Thickness |
Features
|
Automatic Flipping & Cutting |
Bowel Feeder Mdl. IFF800 |
|
Deduction Error Camera |
Digi Tax Controller |
|
Haul Off Model 141 |
Inlet with Air Knife Dryer (2-Installed) Dryer |
|
Modem Connection for Online Support |
Parison Programmer with Independent Power Pack / Amplifier Card and Control System Through |
|
Perforator Model 172 |
Pipe Coiler Model 191 Auto Pull & Tension Unit |
|
Steel Hopper |
Touchscreen |
|
(2) Doors |
