| Year | 2022 |
|---|---|
| Make | SMTINC |
| Model | Trim Die |
Description |
Trim Die |
| Reference # | 8071430 |
Price |
Activate PricingInquire Now |

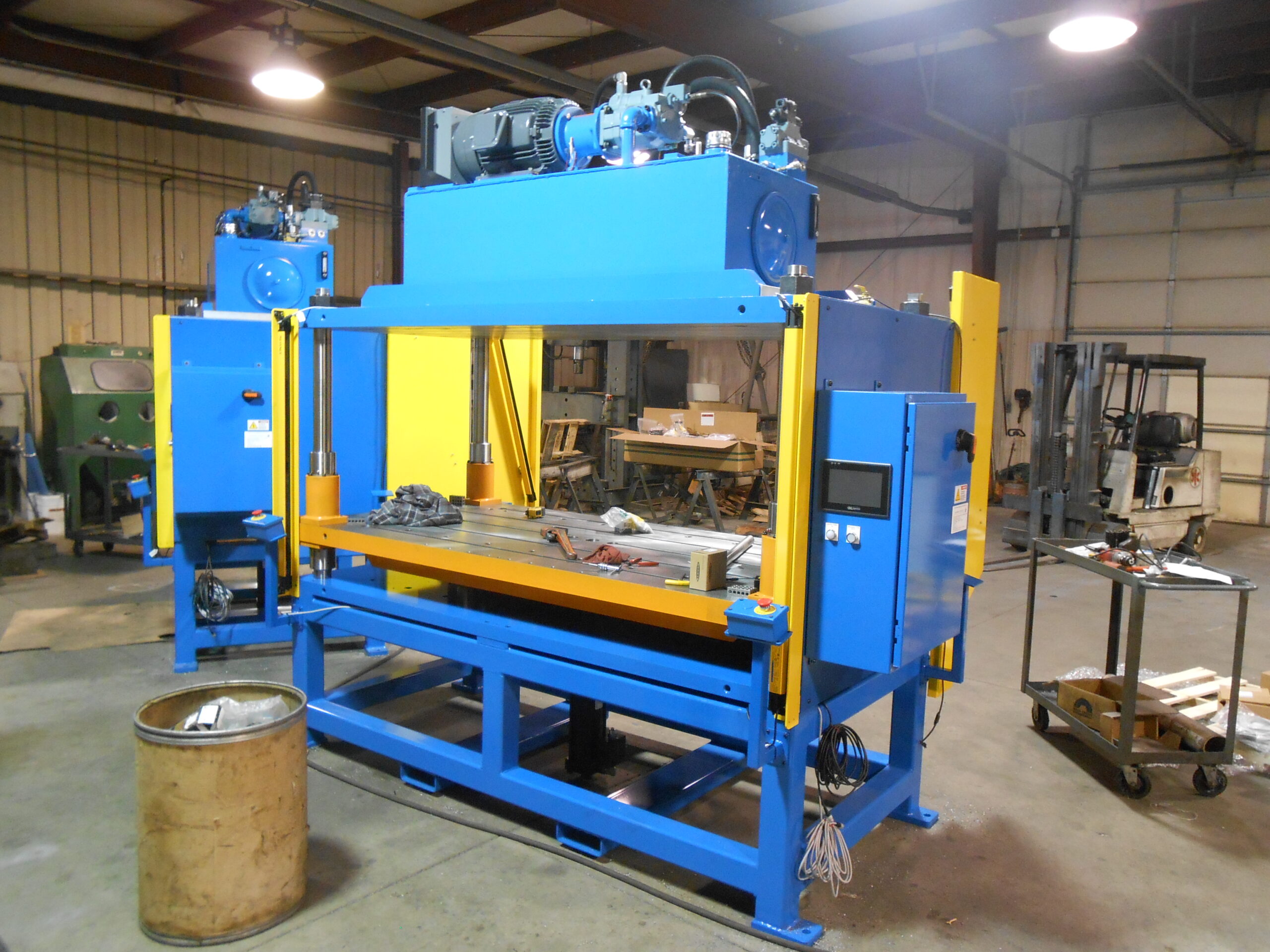

SMTINC Trim Die
Specifications
| New Trim Die (12 Week Delivery) |
44" x 95" |
|---|---|
| Diameter Thompson Guide Rods |
3" |
| Hydraulic Unit |
20 HP |
| Maximum Opening |
36" |
| Bore Cylinder |
4" |
| Closed Height |
14" |
| Stroke |
22" |
Features
|
Safety Relay and Muting |

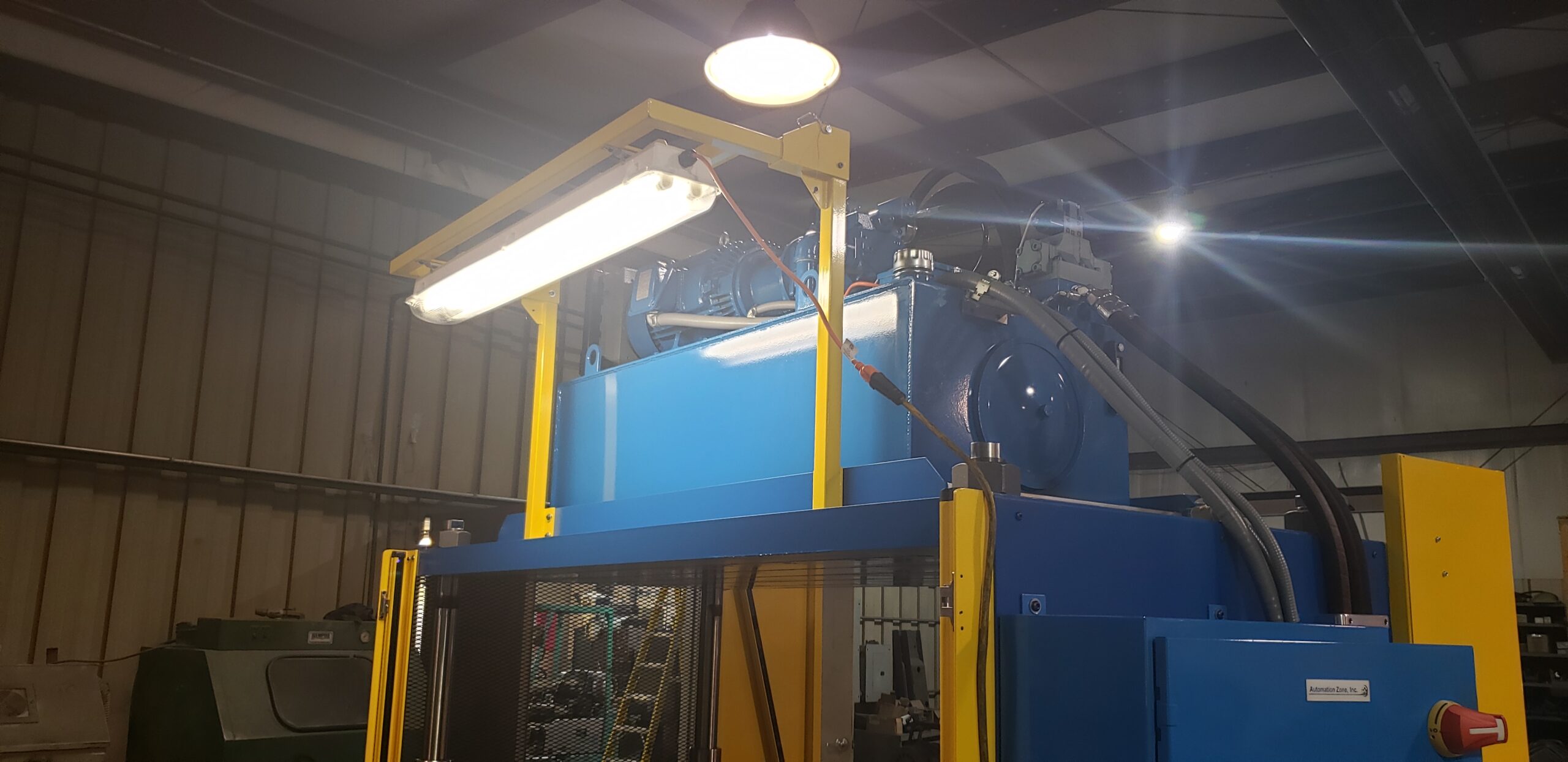

4' Light Fixture with Mounting Frame |
|
Start Stop Controls 4 Corners |
5 Second Cycle Timer |
|
T Slots |

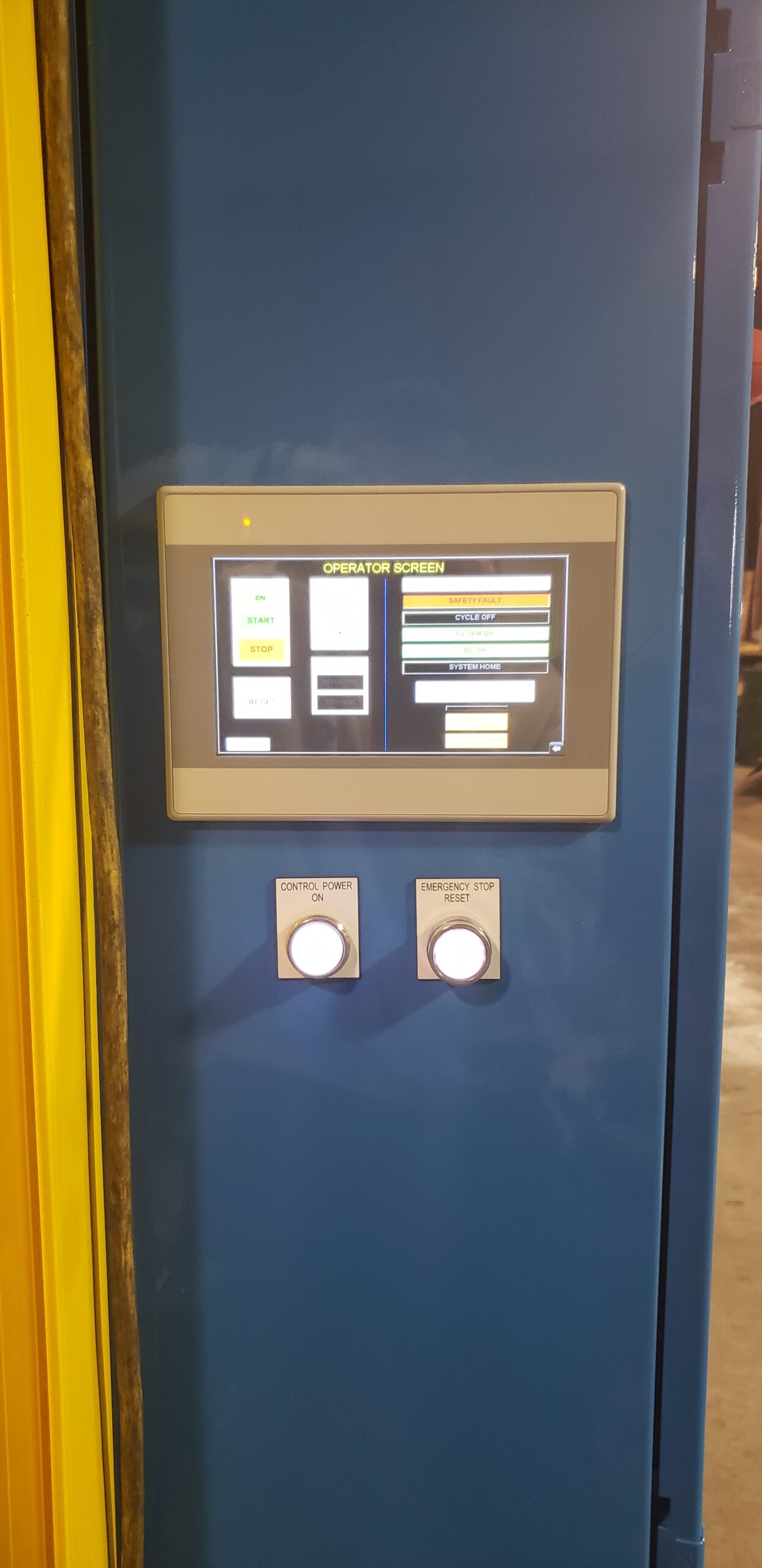

Allen Bradley Controller AB 1766-L32BXB with Maple Systems 5070 Interface Screen |
|
Double Bronze Lined Bushings |
Dual Mounting Positions for Larger Flash Removal |
|
E Stop |
Finger Swipes |
|
Leveling Feet |
Movable Platen from Bottom to Top |
|
Omron Light Curtains Front and Back |
*
