| Year | 2022 |
|---|---|
| Make | Summit |
| Model | SmartCut 30 |
Description |
CNC Lathe |
| Reference # | 8077085 |

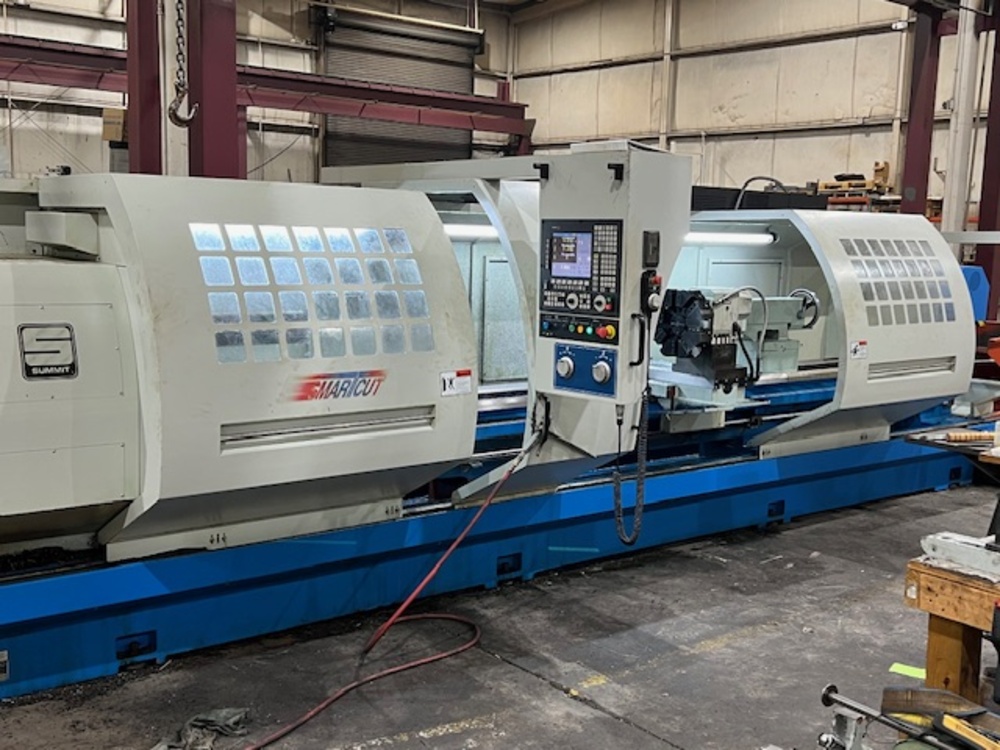

Used Summit SmartCut 30 (2022) CNC Lathe for Sale. This pre-owned Summit CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Summit Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
26" |
|---|---|
| Bar Capacity |
9" |
| Swing |
30.3" |
| Turning Diameter |
18.1" |
| Spindle Speed |
600 RPM |

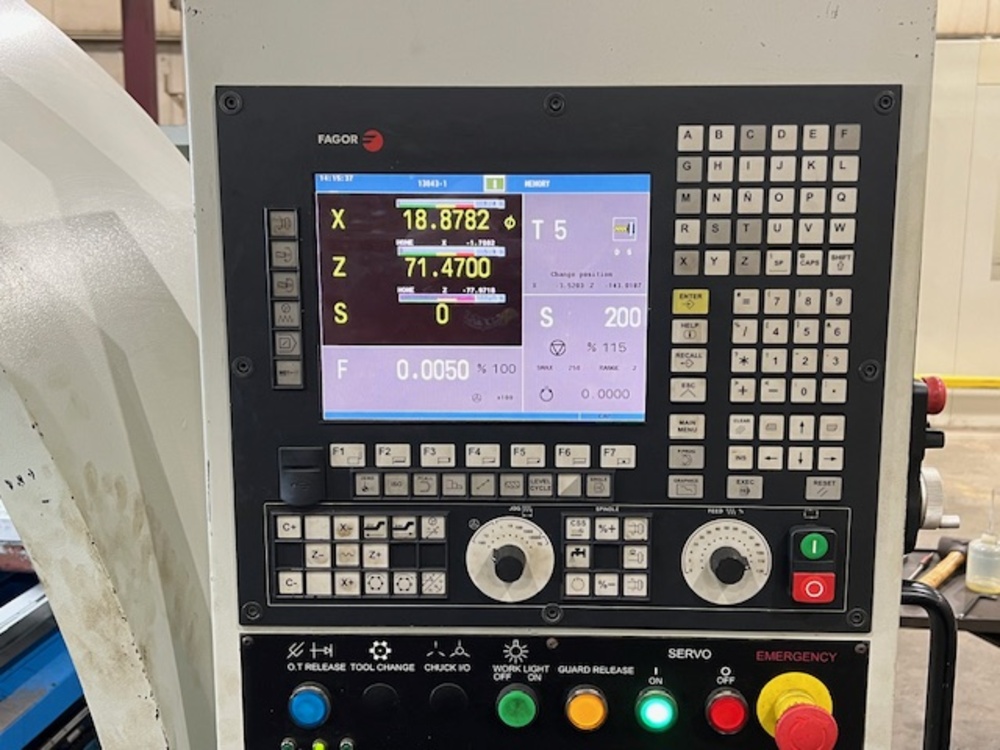

| Control |
Fagor 8055TC |
| Distance Between Centers |
200" |

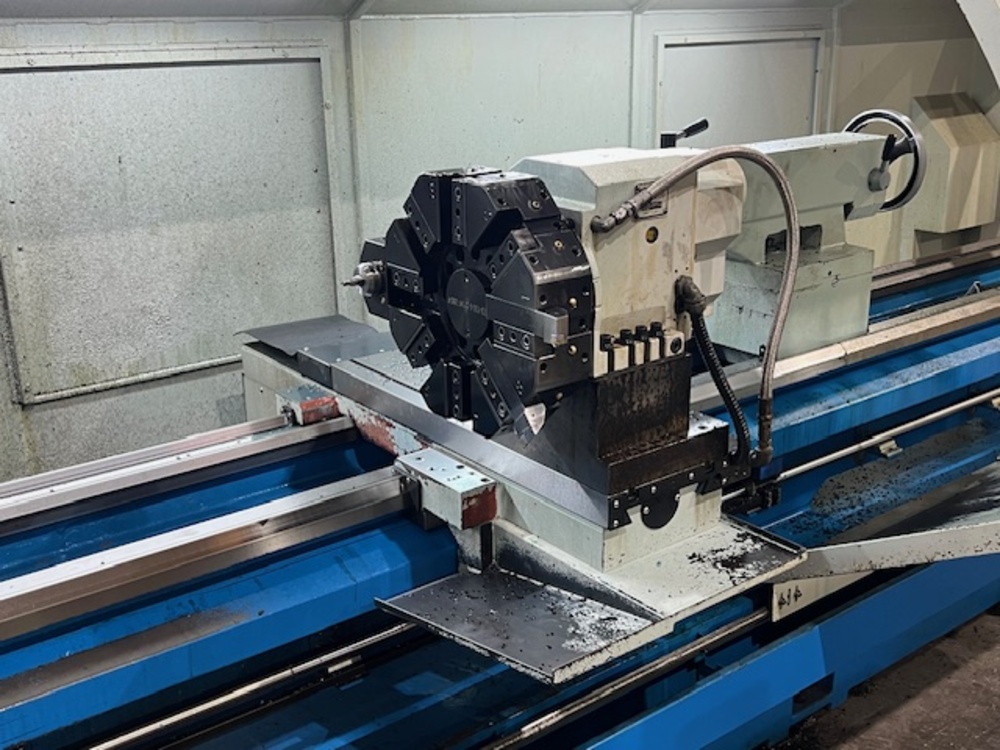

| Turret |
8 Station |
| Chip Removal |
Chip Conveyor |
| Spindle Nose |
A2-15 |
| Cross Slide Travel |
16" |
| Longitudinal Travel (Z Axis) |
189” |
| Feed Rate (Z Axis) |
0 - 196 IPM |
| Feed Rate (X Axis) |
0 - 196 IPM |
| Ballscrew Diameter (Z Axis) |
2” |
| Ballscrew Diameter (X Axis) |
1.25” |
| Diameter of Spindle Barrel |
4.13” |
| Width of Bed |
18.1” |
| Spindle Motor |
20 HP |
| Coolant Pump |
1 HP |
| Dimensions |
280" x 72" x 90" |
| Weight |
14,820 Lbs. |
Features
|
Dual Voltage Electronics |
Extra Capacity Steady Rest |
|
Fixed Rear Chuck Guard |

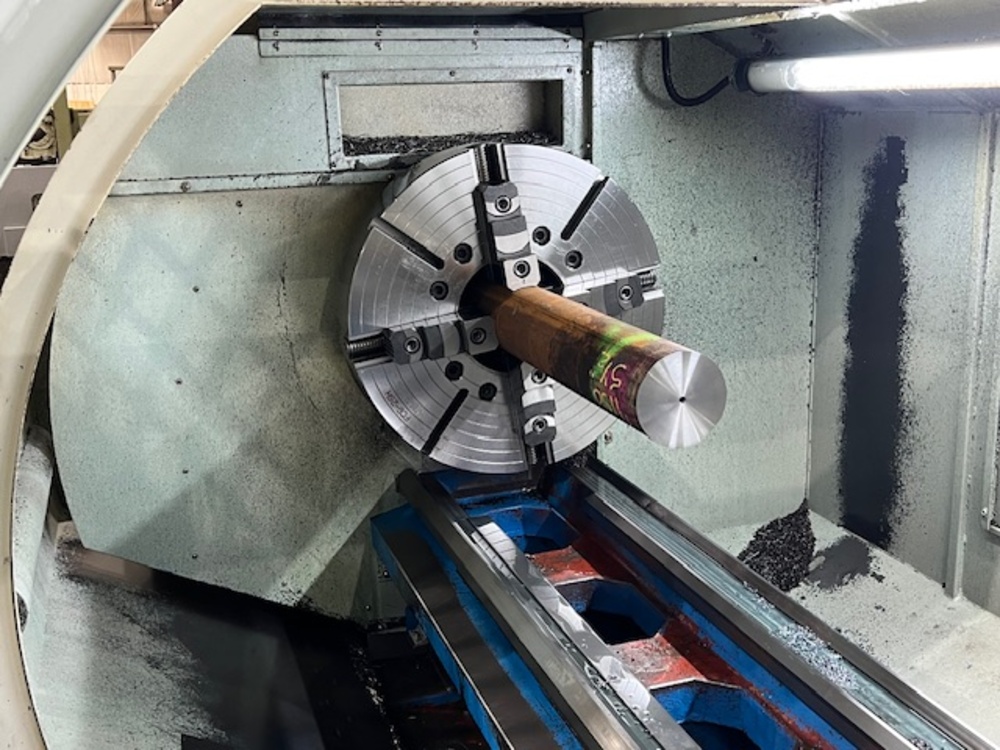

Front and Rear 26" Steel Body 4 Jaw Chucks |
|
Guarding Package with Lighting |
Rear Spindle Flange |
|
Steady Rest with Rollers |
Thread Repair |
|
Coolant System |
Follow Rest |
|
Remote Manual Pulse Generator |
Tailstock |
