| Year | 2023 |
|---|---|
| Make | Toshiba Shibaura |
| Model | EC110SXIIIV70-U34 |
Description |
110 Ton 8.1 oz Shot Size Electric Injection Molding Machine |
| Reference # | 8077362 |

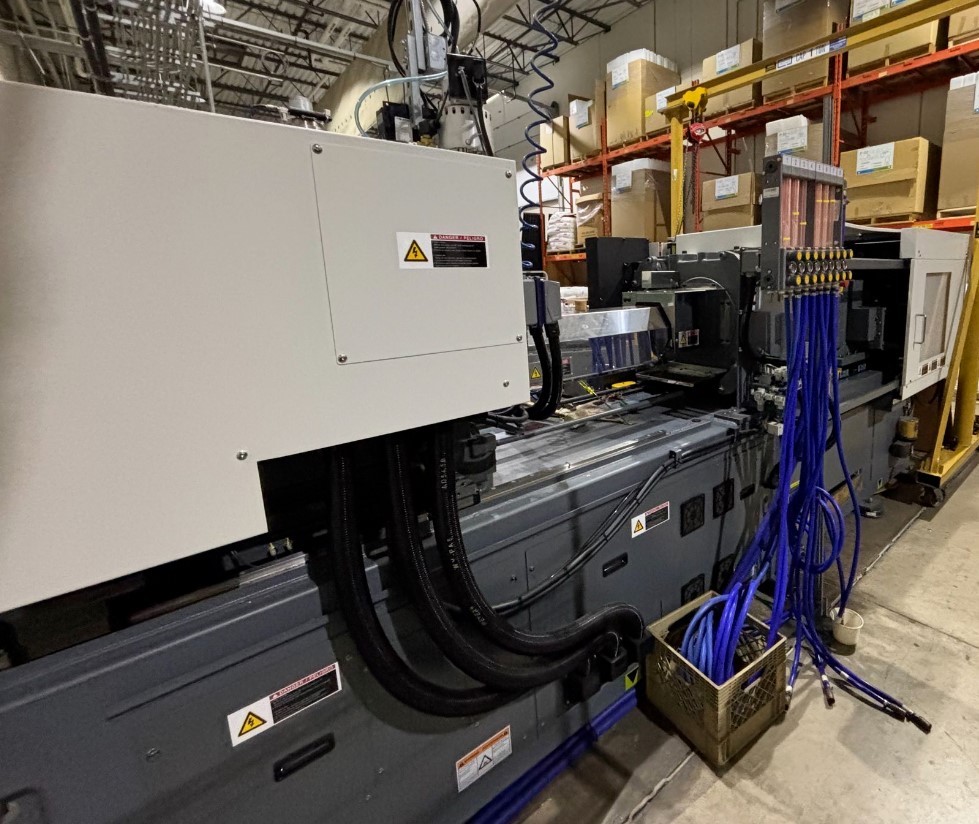

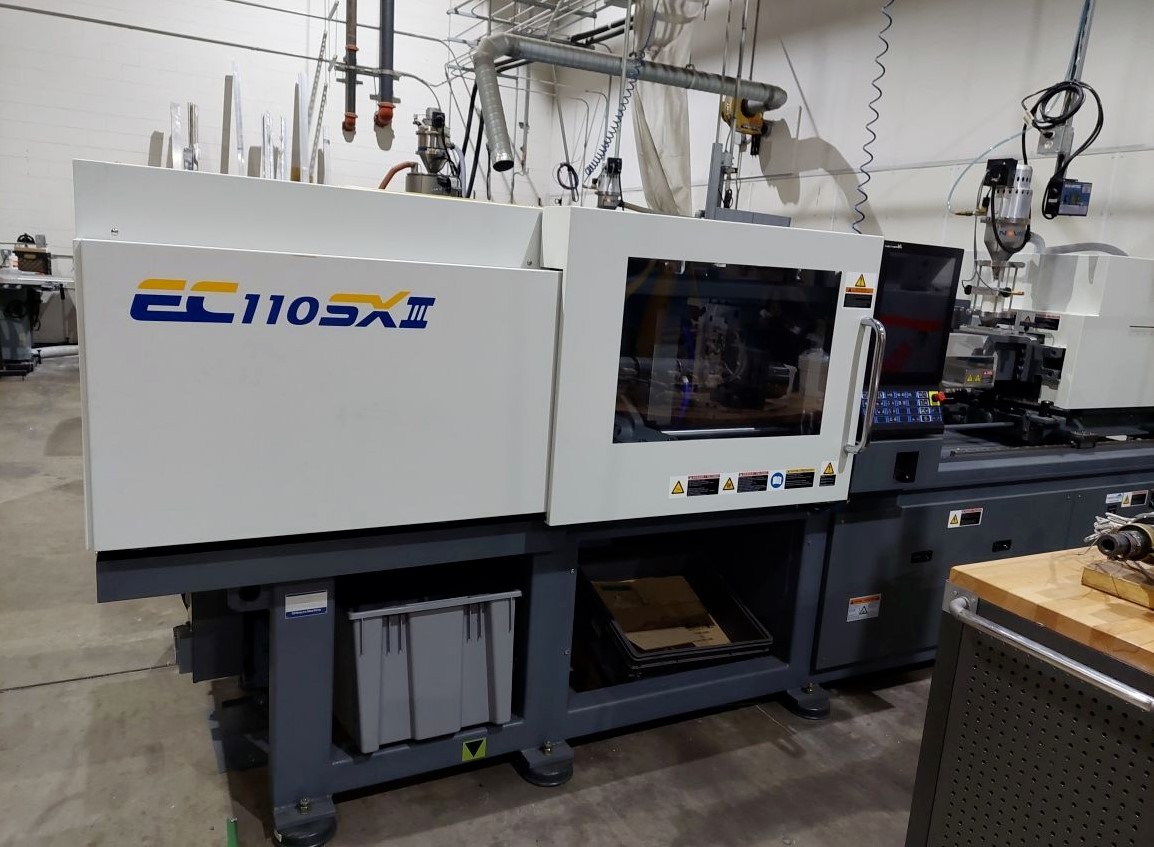

Used Toshiba Shibaura EC110SXIIIV70-U34 (2023) Injection Molding Machine for Sale. This pre-owned Toshiba Shibaura plastic injection molding machine is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Toshiba Shibaura Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
110 Ton |
|---|---|
| Shot Size |
8.1 oz |
| Tie Bar Spacing |
18.1" x 16.1" |
| Platen Size |
26" x 24" |
| Max Daylight |
35.4" |
| Min /Max Mold Height |
7.71"/21.7" |
| Clamp Stroke |
13.8" |
| Ejector Stroke |
3.54" |

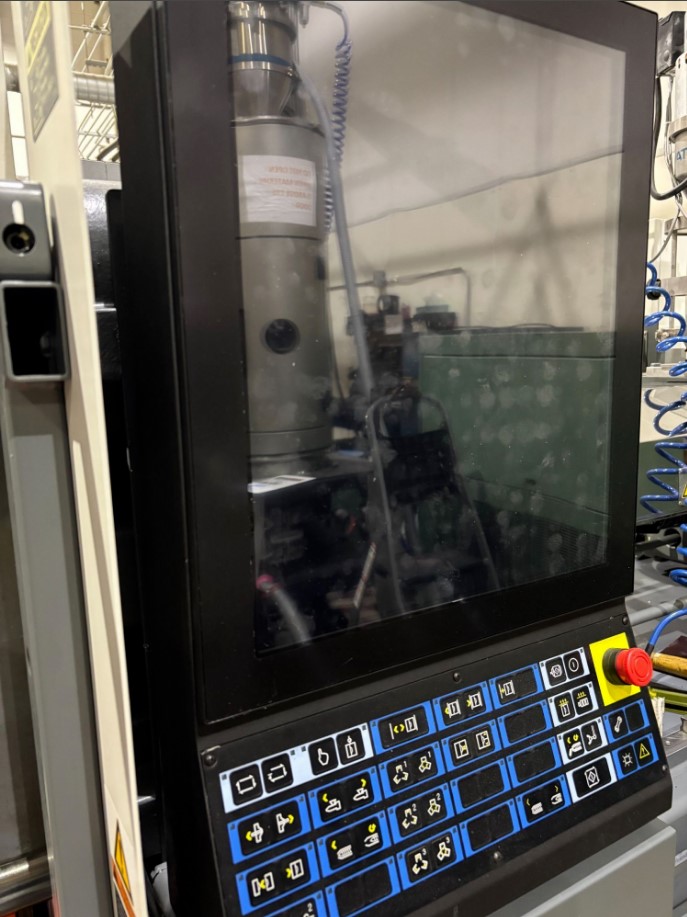

| Control |
Injectvisor V70 |
| Power Requirement |
230V |
| Dimensions |
16.1' x 4.2' x 5.4' |
| Weight |
9,400 Lbs |
Features
|

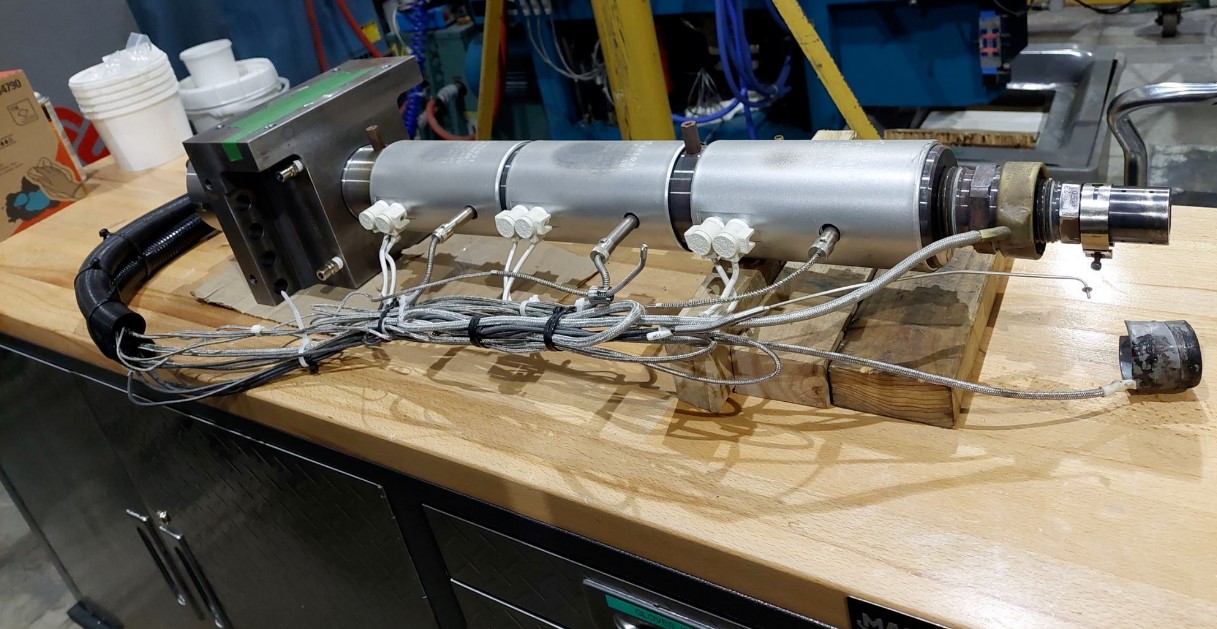

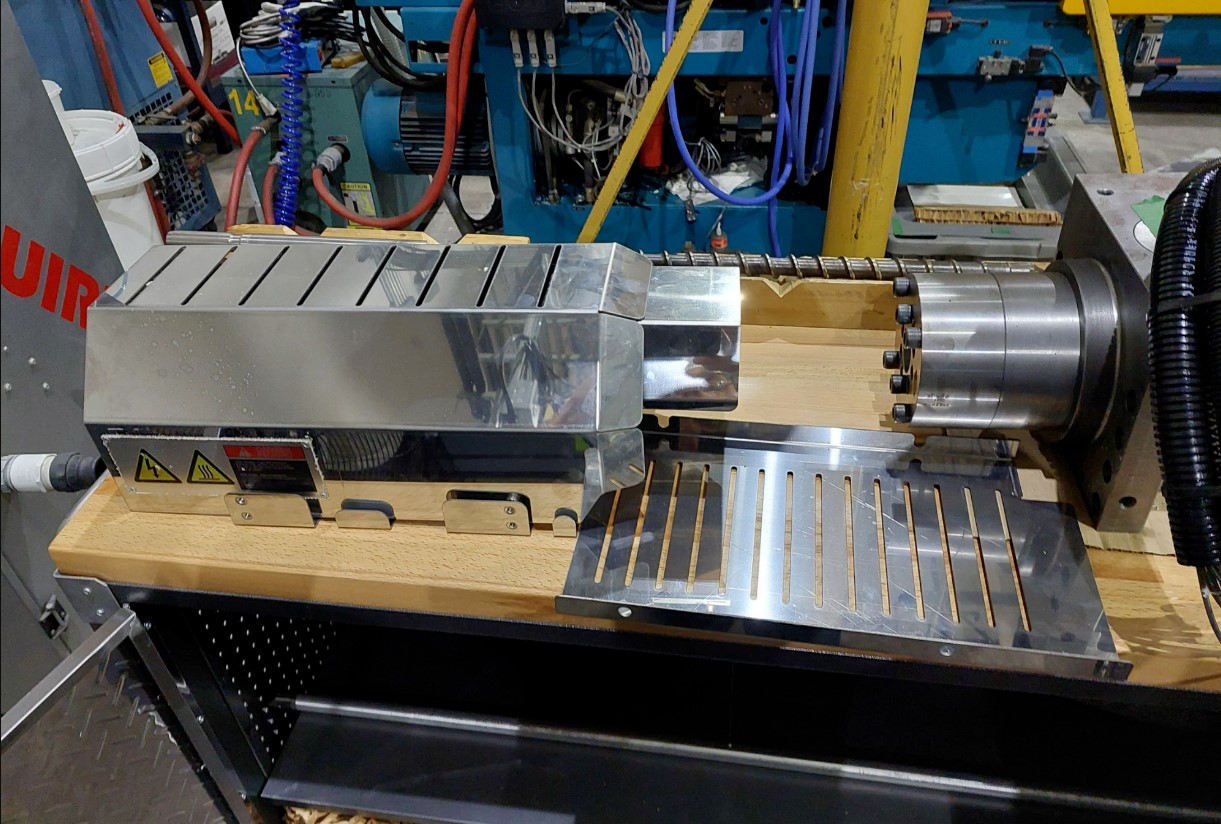

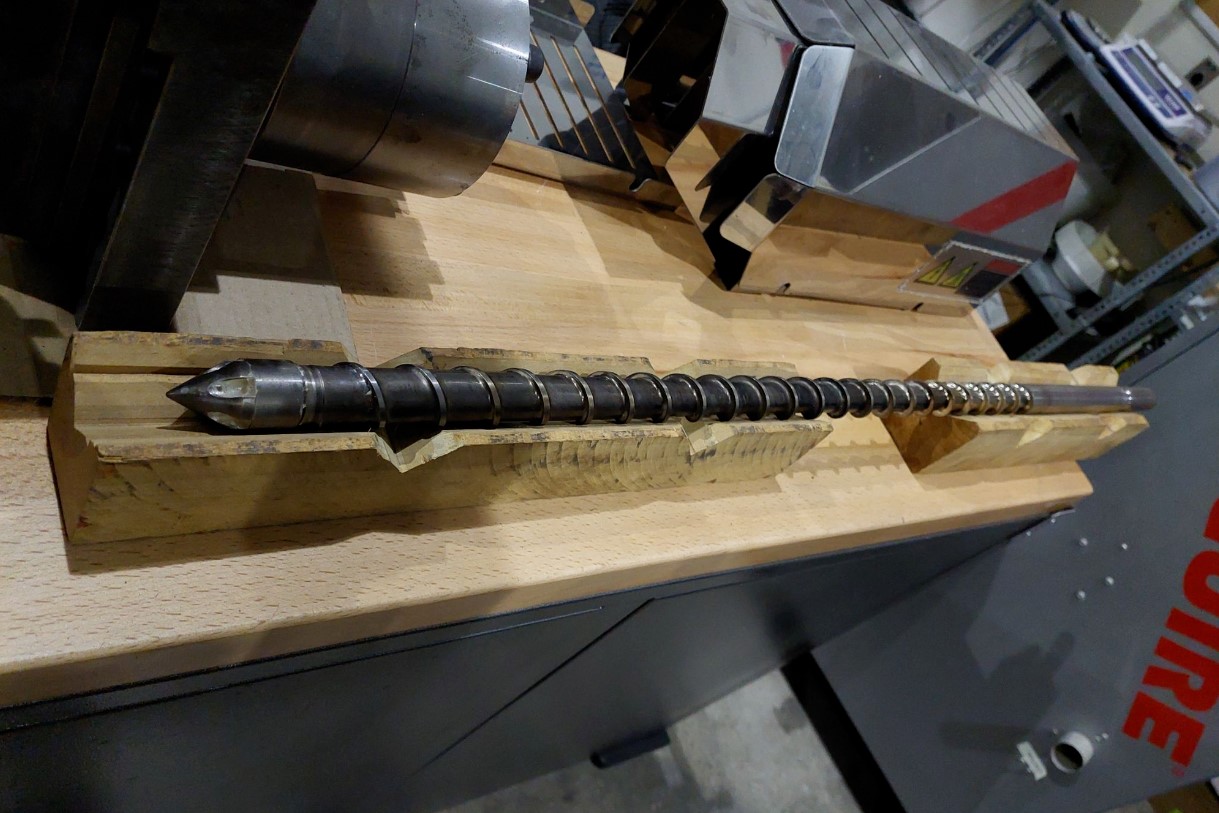

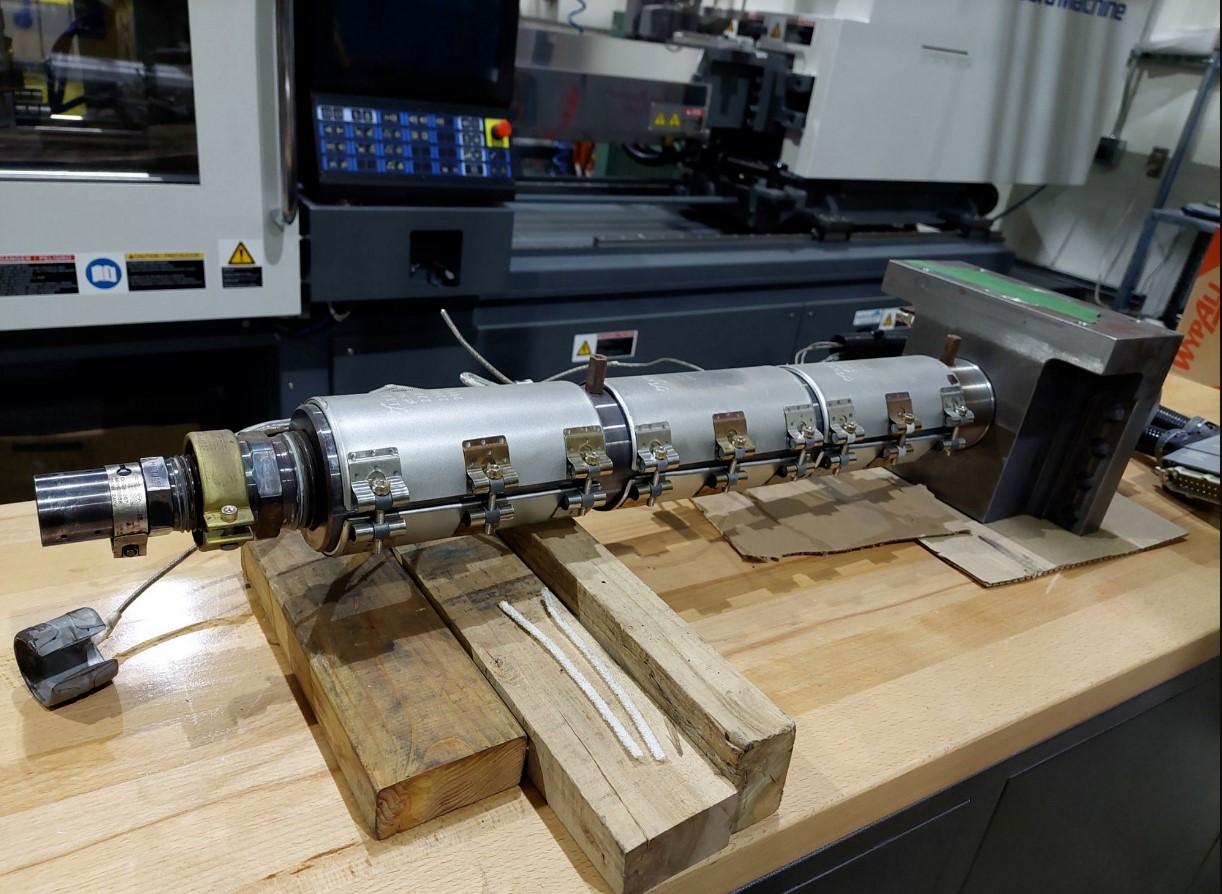

New 2Y Screw and Barrel Included |
Only 540 Hours |
|
Dual Air Blow |
Robot Interface |
|
Under Power |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
