| Year | 2024 |
|---|---|
| Make | Erbend |
| Model | MFA 4225 |
Description |
CNC Combi Servo Folder |
| Reference # | 8077170 |

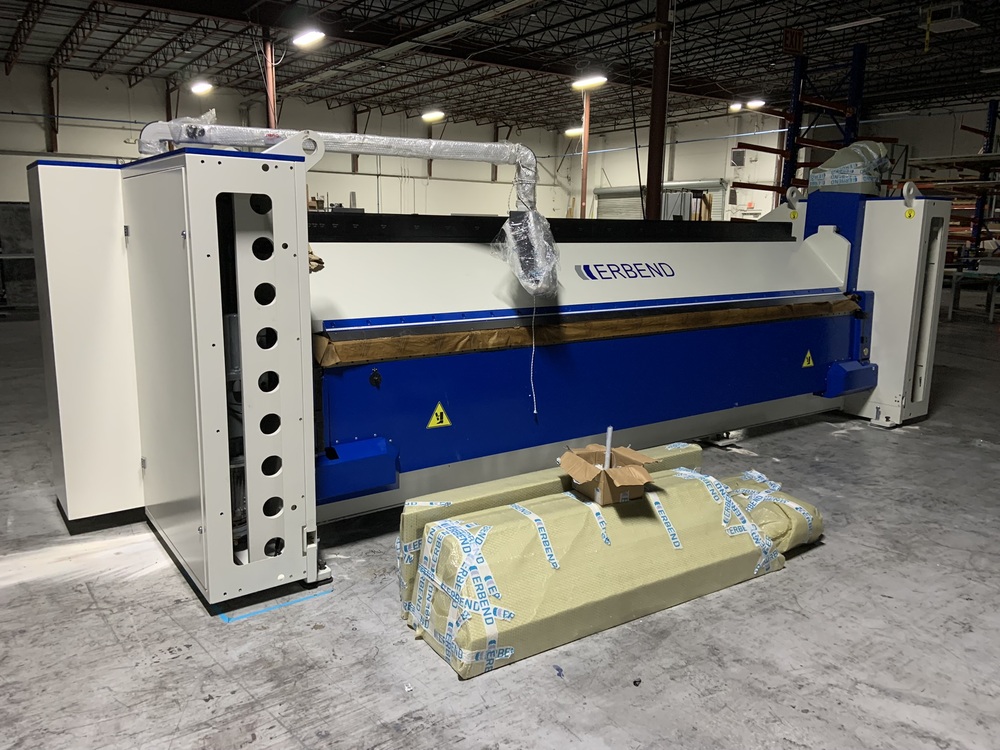

Used Erbend MFA 4225 (2024) Folding Machine for Sale. This pre-owned Erbend folding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Erbend Folding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Sheet Length |
4200mm / 165.35" |
|---|---|
| Mild Steel |
2.5mm / .098" |
| Stainless |
1.5mm / .059" |
| Aluminum |
3.5mm / .137" |
| Opening Height (without tools) |
250 mm / 9.84" |
| Folding Speed |
70 Degrees / Sec. |
| Transmission System |
Ball Screw Spindle |
| Clamping Speed |
65mm / 2.51" |
| Combi Beam Rotation (180 Deg) Time |
10 Sec. |
| Folding Beam (Y Axis) Folding Angle |
0 - 150 Degrees |
| Motor Power (Sew Eurodrive AC) |
2 x 4 kW / 5.36 HP |
| Adjustment Height (Manual) |
0 to 80 mm / 3.14” (Manual Control) |
| Back Gauge Movement Speed |
300mm / 11.81" / Sec. |
| Motor Power (Servo) |
750 W |
| Positioning / Repeatability Accuracy |
+/- 0,1mm / .003" |
| Control |
CNC Touch Screen Controller |
| Shipping Dims & Weight |
2200mm / 86.61” x 5650mm / 222.42” x 2400mm 94.48” |
| Approx. Weight |
9150 Kg / 20,000 Lbs. |
| Power Requirement |
480V - 3 Ph |
| Note |
Very Minimal Use / Very Low Hours |
