| Year | 2025 |
|---|---|
| Make | HSG |
| Model | T2 Series |
Description |
3 or 6kW CNC Fiber Tube Laser |
| Reference # | 8077269 |

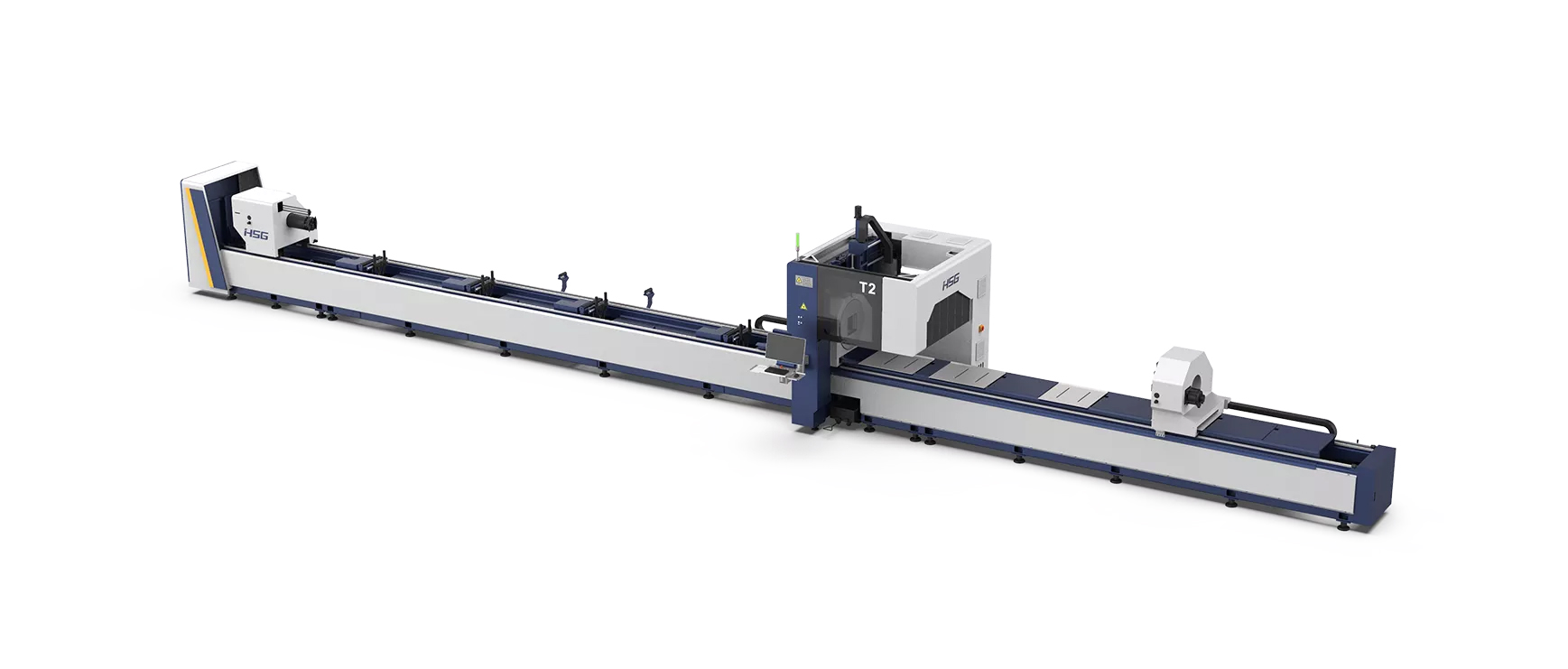

New HSG T2 Series (2025) CNC Laser for Sale. This New HSG CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this HSG Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
3,000/6,000 |
|---|---|
| T2 Cutting Capacity (Round Tube) |
0.79" – 9.45" |
| T2 Cutting Capacity (Square Tube) |
0.79" x 0.79" - 9.45" x 9.45" |
| T2 Cutting Capacity (Diagonal) |
+/- 13" |
| T3 Cutting Capacity (Round Tube) |
0.79" – 13.78" |
| T3 Cutting Capacity (Square Tube) |
0.79" x 0.79" - 13.78" x 13.78" |
| T3 Cutting Capacity (Diagonal) |
+/- 19.5" |
| T2 Range of Incoming Materials for Tube |
39.37" – 275.59" |
| T3 Range of Incoming Materials for Tube |
39.37" – 354.33" |
| T2 Positioning Precision of X/Y Axis |
+/- 0.00035 in/ft |
| T3 Positioning Precision of X/Y Axis |
+/- 0.00059 in/ft |
| Repetitive Positioning Precision of X/Y Axis |
+/- 0.00118" |
| Speed of Chuck (T2/T3) |
100 RPM/80 RPM |
| Max Linkage Speed (T2/T3) |
328 ft/min - 262 ft/min |
| Max Linkage Acceleration (T2/T3) |
1 G/0.8 G |
| Max Single Tube Weight (T2/T3) |
661 Lb/1,323 Lb |
| Bevel Option |
50mm - Thickness Above 3mm |
| Bevel Angle |
+/- 45 Degree |
Features
|
3-Chuck Tube Laser Cutter |
Enhanced Material Handling and Positioning |
|
Fully Mobile 3-Chuck System |
Independent Servo-Driven Support |
|
Precise Control and Strong Clamping |
Smart Bus Control Platform |
