| Year | 2025 |
|---|---|
| Make | HSG |
| Model | TX5 |
Description |

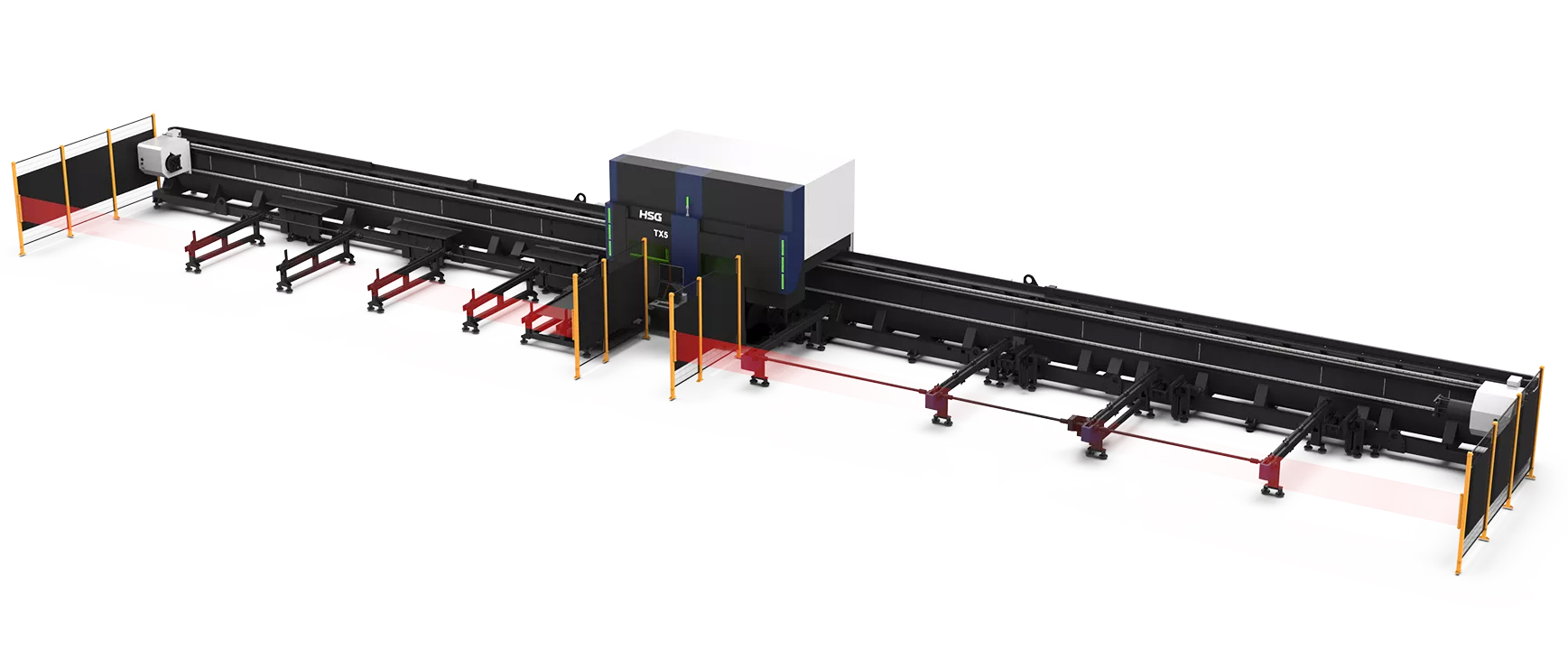

6k - 20kW CNC Fiber Tube Laser |
| Reference # | 8077375 |
New HSG TX5 (2025) CNC Laser for Sale. This New HSG CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this HSG Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
20,000 |
|---|---|
| Tube Processing Range Round (TX12036) |
1.97" – 19.69" |
| Tube Processing Range Square (TX12036) |
1.97" x 1.97" – 13.78" x 13.78" |
| Tube Processing Range Round (TX12050) |
1.57" x 1.57" – 9.84" x 9.84" |
| Diagonal (Max) |
14.17" |
| Chuck Speed (TX12036/TX12050) |
60/40 RPM |
| Max Linkage Speed |
196.85 ft/min |
| Max Linkage Acceleration (TX12036/TX12050) |
0.6 G/0.3 G |
| Max Single Tube Weight (TX12036/TX12050) |
2,645 Lbs/3,306 Lbs |
| Positioning Precision of X/Y Axis |
+/- 0.00059" |
| Repetitive Positioning Precision of X/Y Axis |
+/- 0.0020" |
| Bevel Angle |
+/- 45 Degrees |
Features
|
3+1 Twin-Chuck Tube Laser Cutter |
Air Conditioning Cabinet |
|
Heavy-Duty Tube Handling |
Safety Protection Kit |
|
Transformer Wiring Harness |
Voltage Stabilizer |
|
Weld Seam Inspection (N/A for Some Models) |
Dust Collector |
|
Transformer Included |
Bevel Cutting Head |
