| Make | Atlantic |
|---|---|
| Model | HDE10x1/4 |
Description |
1/4" x 10' Hydraulic Shear |
| Reference # | 8071755 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

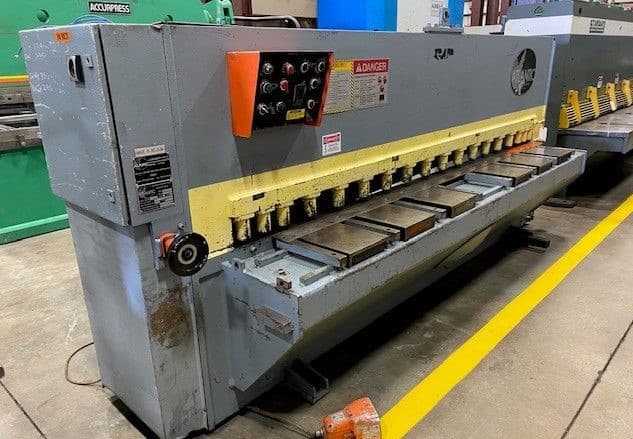

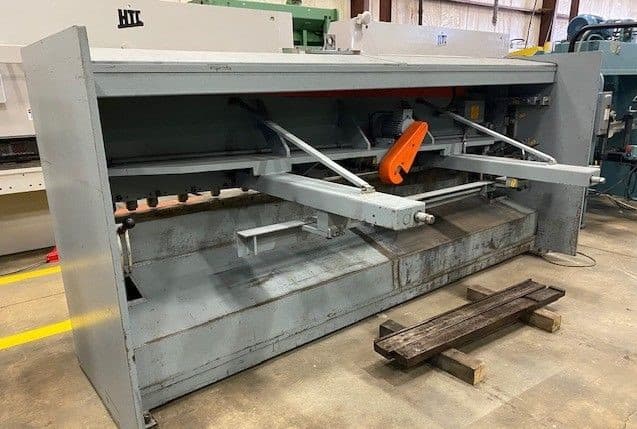

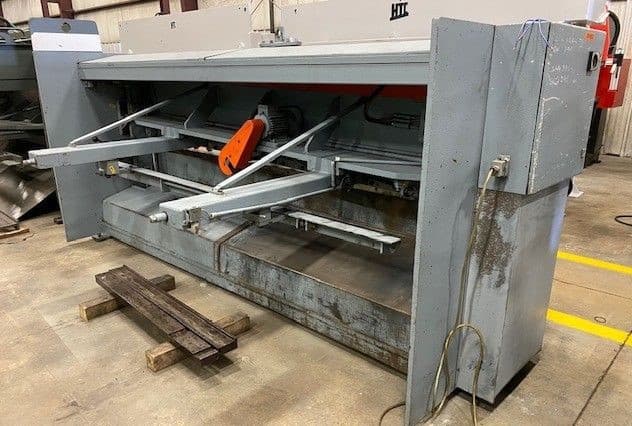

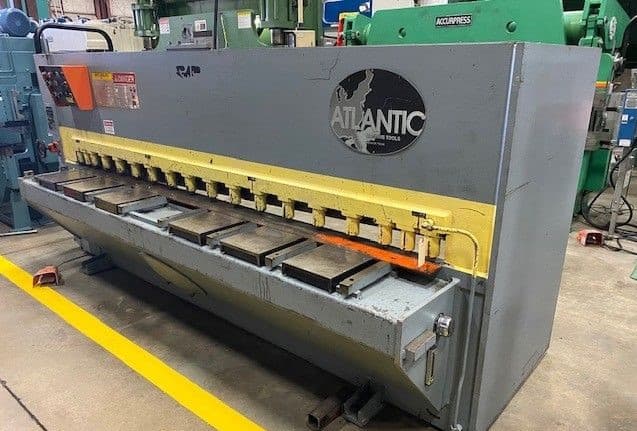

Used Atlantic HDE10x1/4 Shear for Sale. This pre-owned Atlantic shear is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Atlantic Shear, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
1/4" |
|---|---|
| Max Shearing Length |
10' |
| Control |
Atlantic |
| Back Gauge |
Front Operated |
| Squaring Arm |
54" |
| Power Requirement |
220/440/3/60 |
| Length of Knives |
10'3" |
| Rake Angle |
1dg to 3dg |
| S.P.M. Approx. |
10-25 |
| Holddowns |
18 |
| Approx. Overall Dimensions |
148" L-R x 74" F-B x 70" H |
| Approx. Weight |
10,000 Lbs |
Features
|
Power Rake Angle Adjustment |

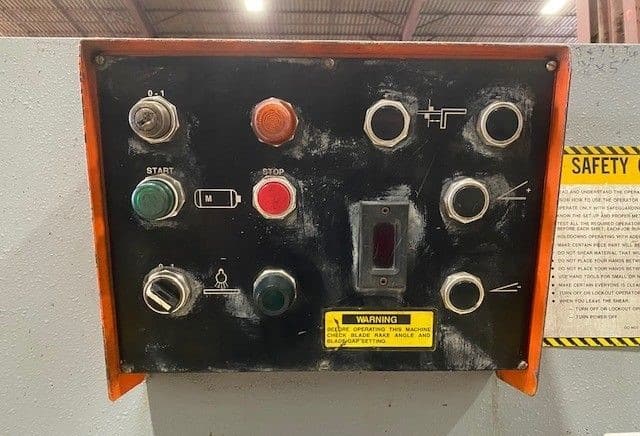

Push Buttons for Start/Stop |
|
Electric Foot Switch |
36" Front Operated Power Back Gauge with Control and Readout |
|
Blade Clearance Adjustment |
Hydraulic Pump |
