Make HPM
Model Profile Line

Description

Extruder
Reference # 8071699

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Used HPM Profile Line Extruder for Sale.  This pre-owned HPM plastic extruder is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this HPM Extruder, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Profile Line Consist of

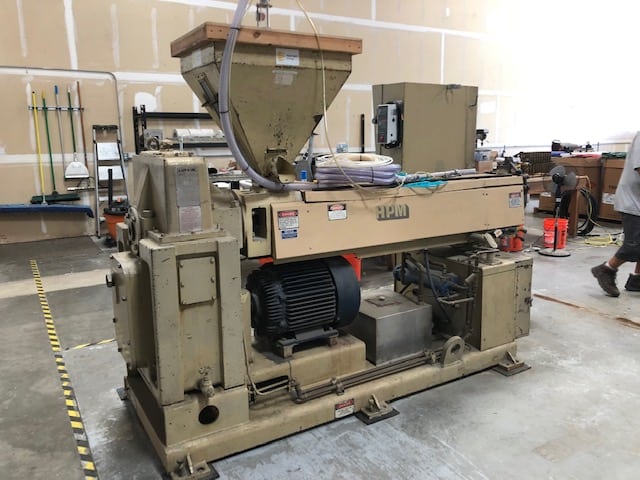

(1) HPM Extruder

Screw Size

2.5"

L/D Ratio

30:1

Gearbox Ratio

Lufkin Gearbox

Horsepower

50 HP AC Motor

Cooled

Water Cooled Barrel

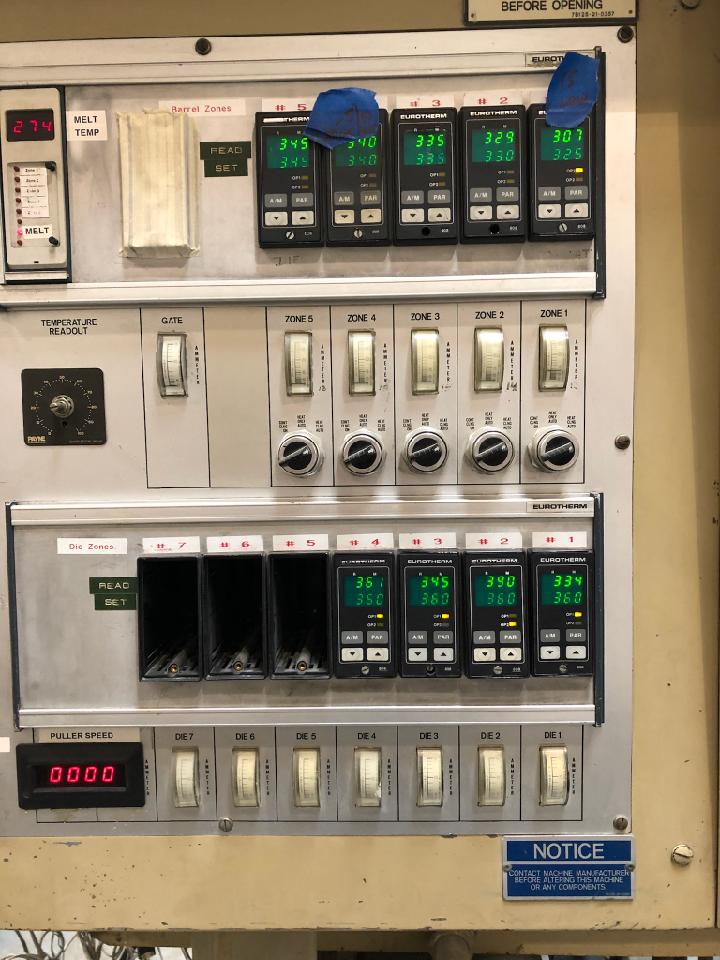

Barrel Zones

(5) Zones

Die Zones

(7) Zones

Drive

AC Vector Drive Conversion

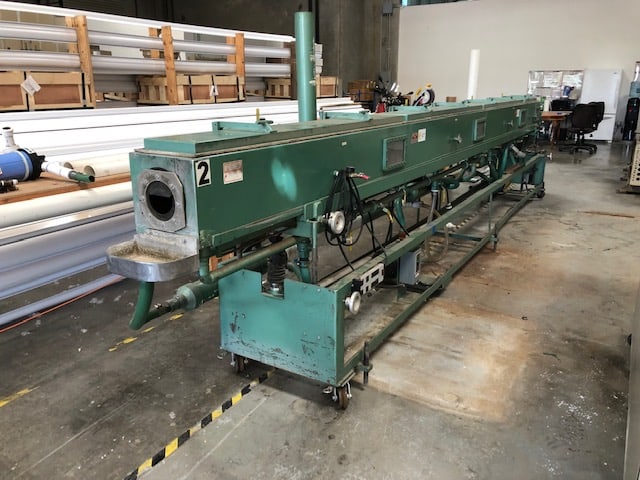

(1) RDN 14' Vacuum Sizing Tank

Model 4D-2V-3T-14

Compartments

(3) Compartments, (2) 6' & (1) 2'

Tank Dimensions

14' L x 12" W x 12" H

Motors

(2) 3 HP Vacuum Pumps & (1) 2 HP Pump

Electrical Requirements

460v - 3 - 60 hz

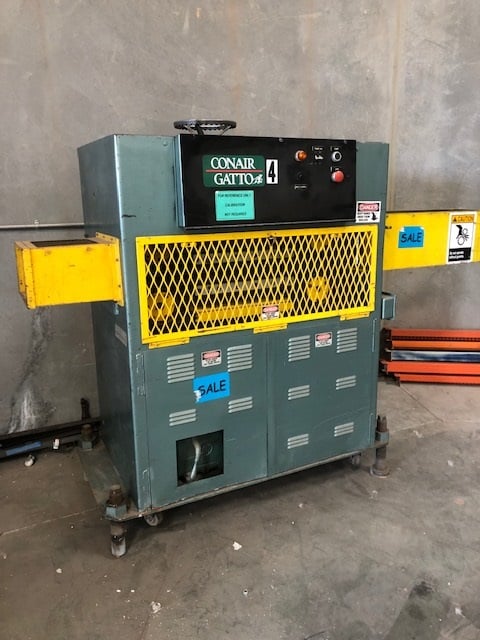

(1) Conair / Gatto Puller

Model 210-6

Belt Contact Area

30" L x 5.75" W

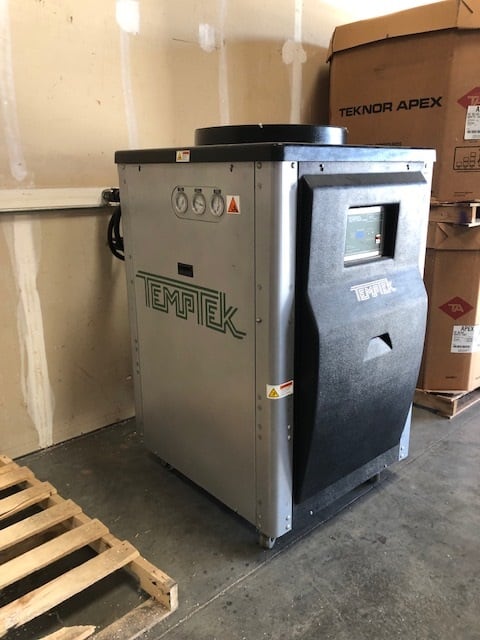

(1) Temptek 5 Ton Chiller

Air Cooled 5 Ton Chiller

Product Ran

PVC Profile Was 4” Tube With 2-3mm Wall Thickness

Extruder Parts Included

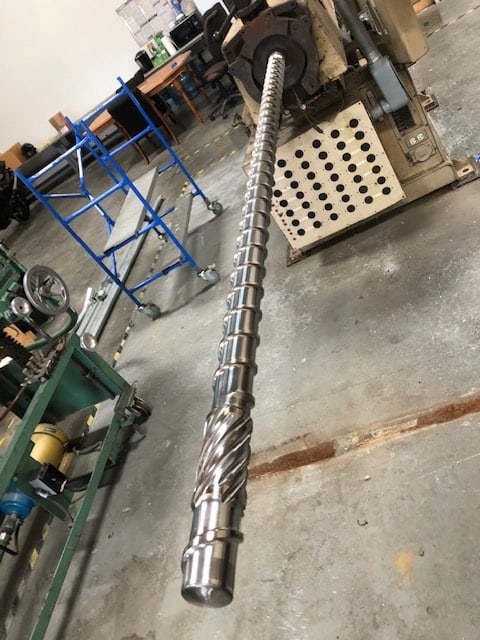

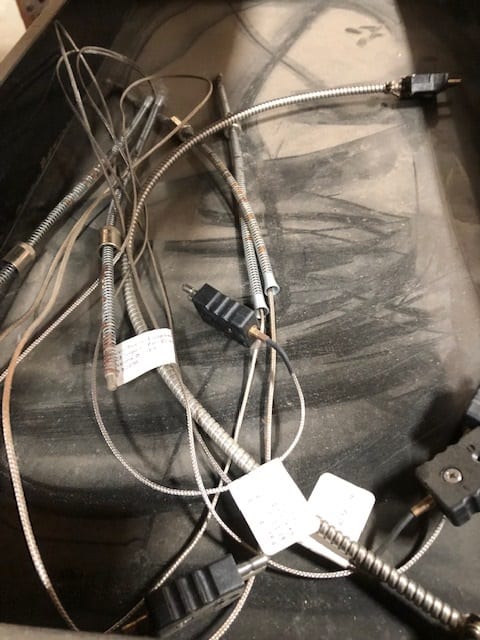

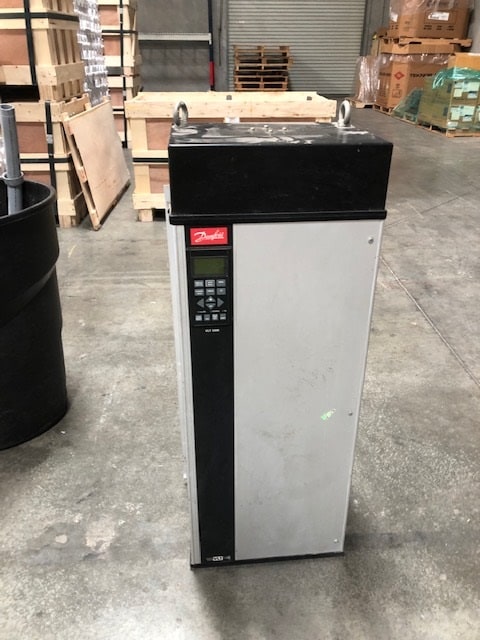

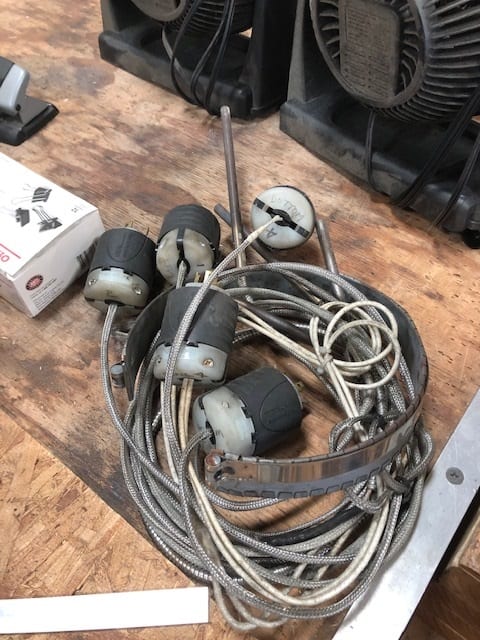

Canadian Feed Screw For PVC, Danfoss VFD For Extruder Motor, Heaters/Ring /Rods, Temperature Sensors

Misc. Extra Spare Parts

Heater Controllers, Valves, Temp Sensors, Heaters, Brass Maintenance Equipment

Features

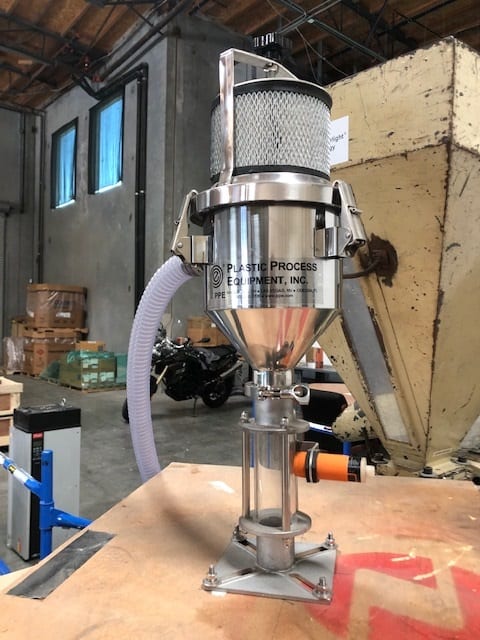

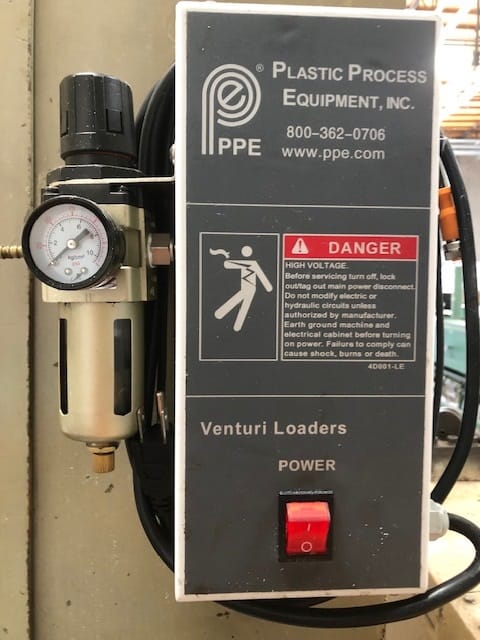

Plastics Processing Equipment Hopper Loader

Hopper

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
