| Make | JSW |
|---|---|
| Model | NB60S / P90 / AC75 |
Description |

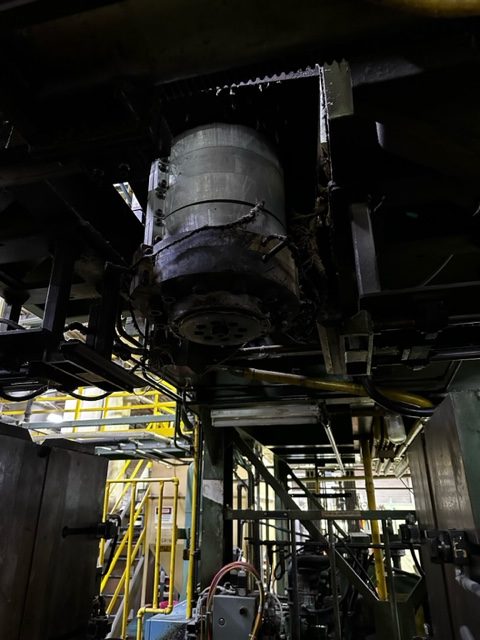

Accumulator Head Blow Molder |
| Reference # | 8073266 |
Price |
Activate PricingInquire Now |

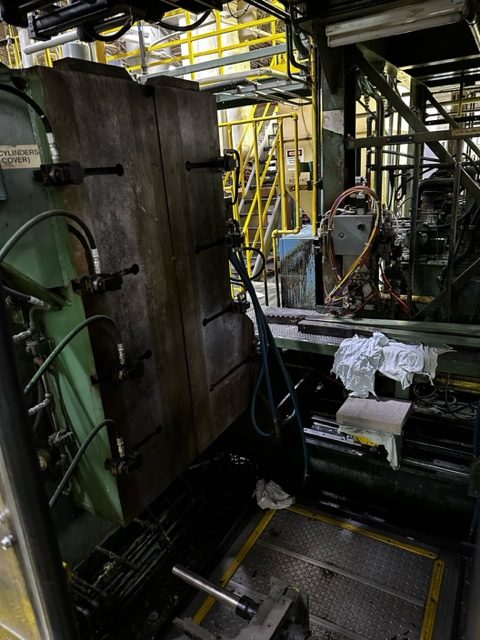

Used JSW NB60S / P90 / AC75 Blow Molder for Sale. This pre-owned JSW blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this JSW Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Heads |
1 |
|---|---|
| Shot Size Capacity (Liter / lbs.) |
7 Liter ( 15.43 lbs. approx.) |
| Platen Size (mm / inches) |
800mm (31.49" ) W x 1400mm (55.11") H |
| Min. / Maximum Daylight (mm / inches) |
400mm (15.74") to 1100mm (43.30") |
| Clamping Tonnage |
60 Ton |
| Extruder | |
| Screw Size (mm/inches) |
90mm (3.5") |
| L/D Ratio |
25:1 |
| Horsepower |
55kw (73.7 hp) |
| Cooled |
Air Cooled Barrel |
| Hopper Opening |
Water Cooled Feedthroat |

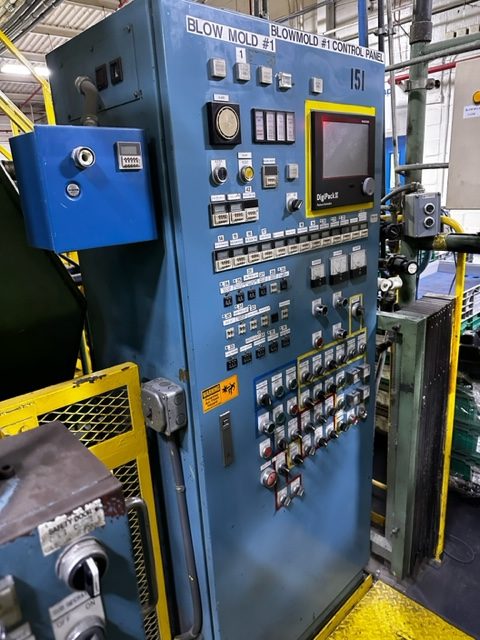

| Controller |
MOOG Parison Controller |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
