| Year | |
|---|---|
| Make | KR Wilson |
| Model | 140T |
Description |

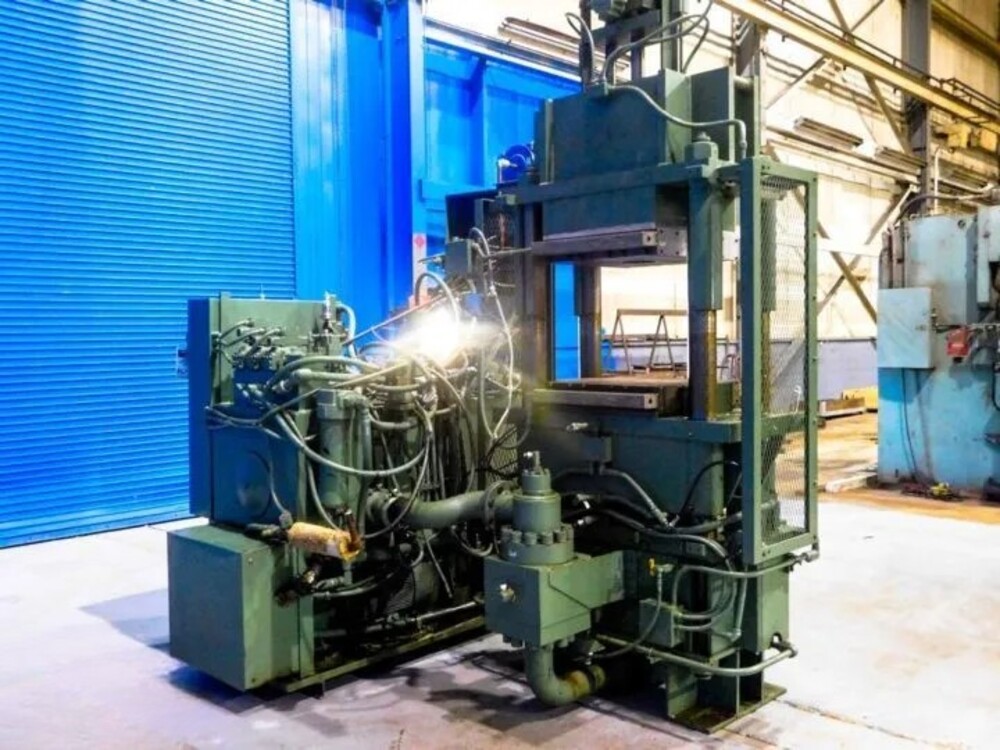

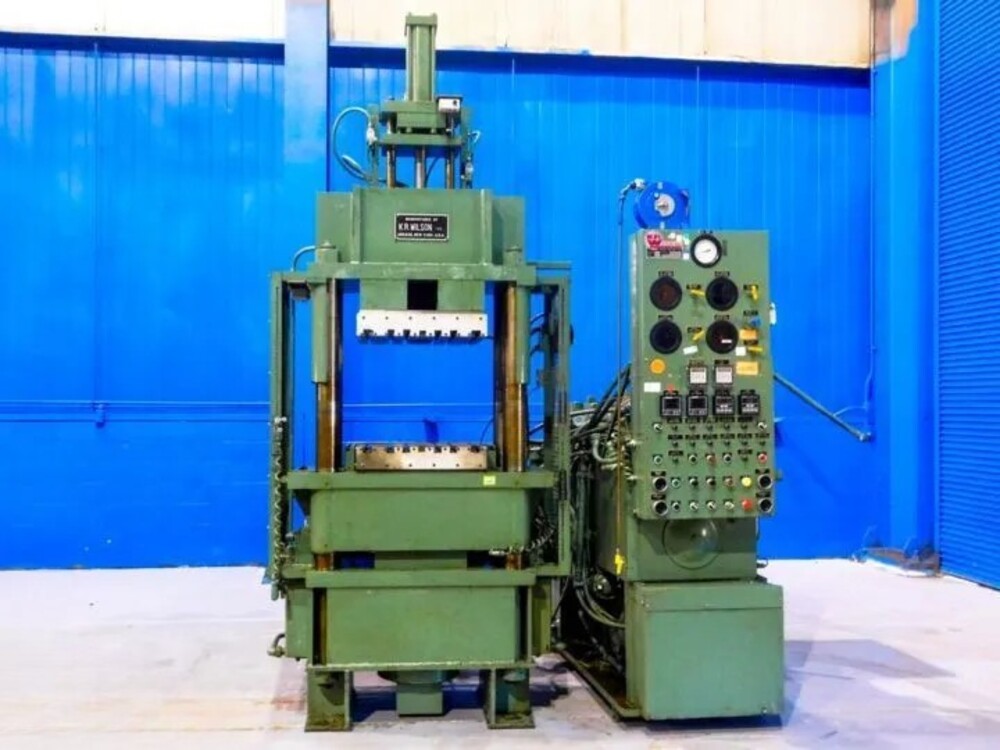

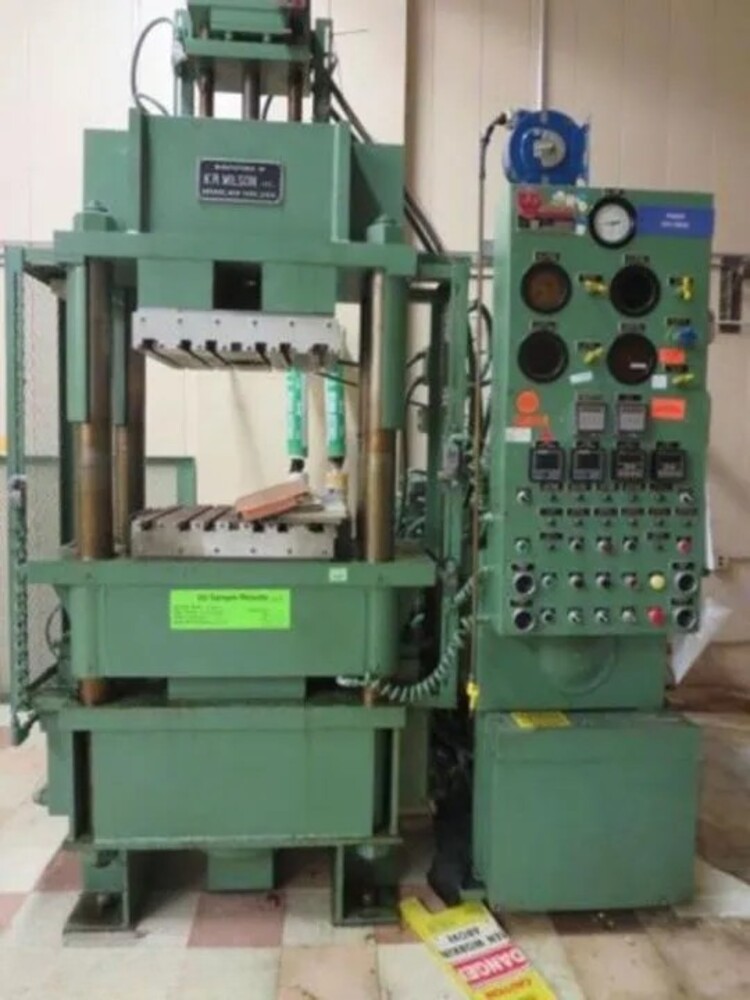

140 Ton Hydraulic Transfer Molding Press |
| Reference # | 8077417 |
Used KR Wilson 140T Compression Molder for Sale. This pre-owned KR Wilson compression molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this KR Wilson Compression Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Tonnage |
140 Ton |
|---|---|
| Tonnage of Transfer Ram |
25 Ton |
| Stroke |
18" |

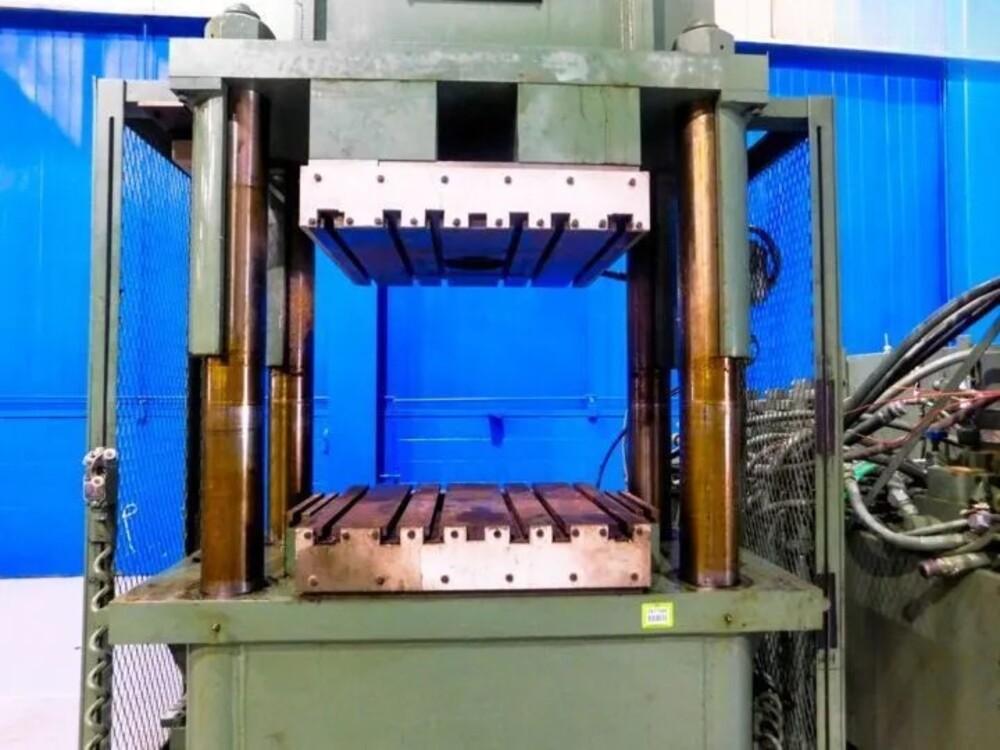

| Daylight |
38" |
| Heated Platen (F-B)/(L-R) |
24” |
| Platen Area (Nominal) |
30" L-R x 24" F-B |
| Stroke of Fully Guided Platen |
18" Max |
| Stroke of Hydraulic Transfer Ram |
16" Max |
| Overall Dimensions of Platen |
51" L-R x 24" F-B |
| Bottom Stripper Bar Spacings |
28" L-R |
| Floor to Top of Moving Platen |
48" |
| Approx Weight (Press) |
13500 Lbs |
| Approx Weight (Power Unit) |
3500 Lbs |
| Approx Dimensions (Press) |
65" L-R x 50" F-B x 142" H |
| Approx Dimensions (Power Unit) |
50" L-R x 82" F-B x 105" H |
Features
|
(2) Cycle Timers |

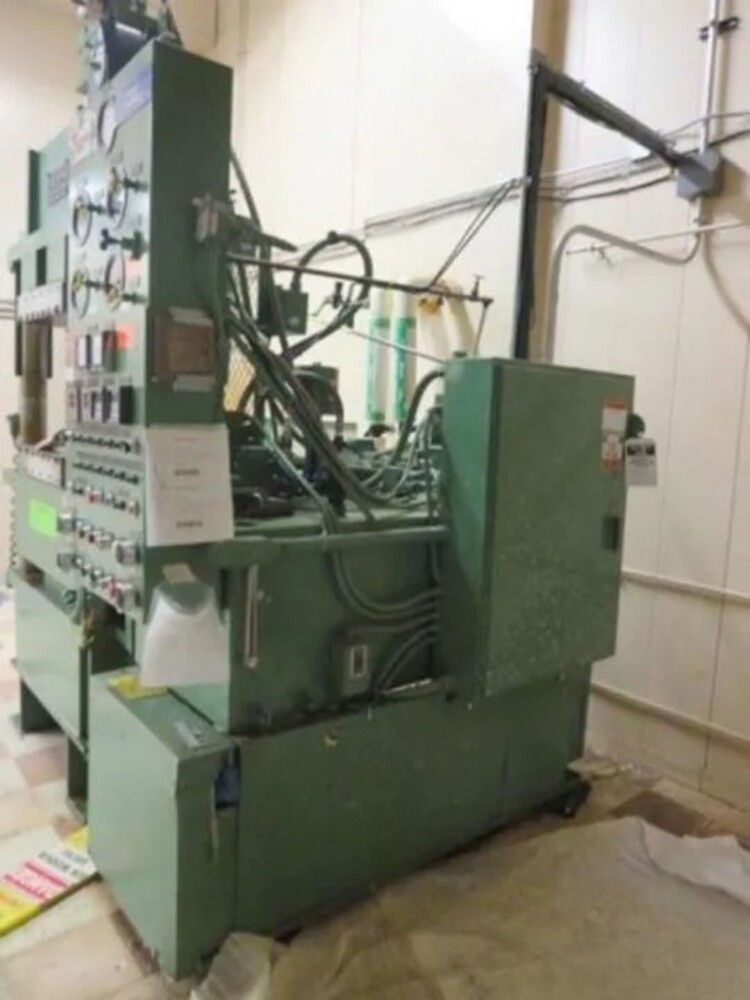

(2) Hydraulic Pumps on Power Unit |
|
(4) Temperature Controllers |
4 Post Upstroke |
|
Heating Element Electric |
Pressure Gauges |
|

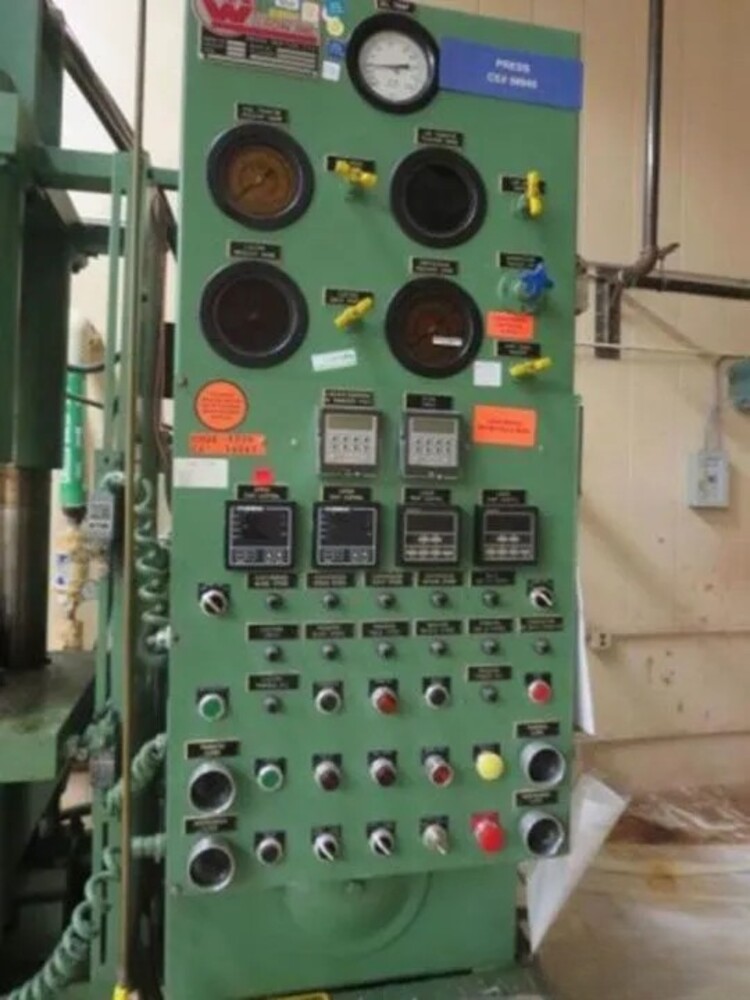

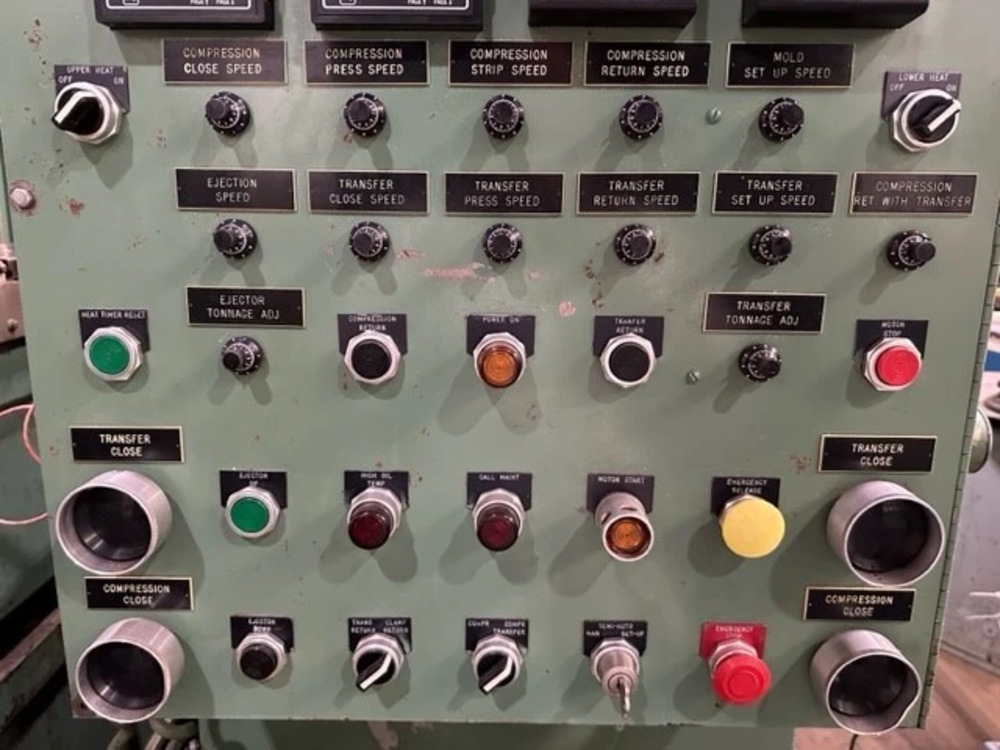

Push Buttons Operation with Stroke/Pressure/Speed Control |
Selector Switch for Manual or Semi-Automatic Operation |
|
Dual Palm Buttons |
