| Year | 2004 |
|---|---|
| Make | AgieCharmilles |
| Model | Roboform 350 |
Description |
EDM Sinker |
| Reference # | 8072247 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

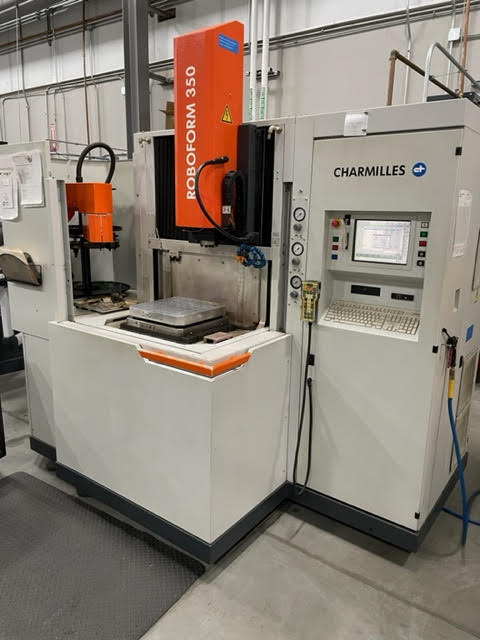

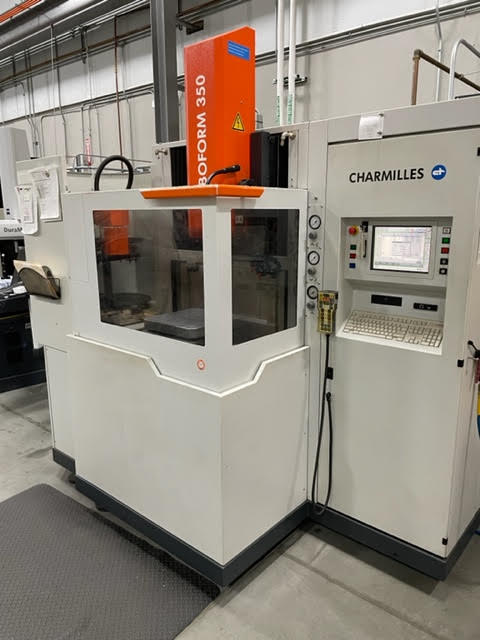

Used Charmilles Roboform 350 (2004) CNC EDM for Sale. This pre-owned Charmilles CNC EDM wire is located in Illinois and available to be seen under power for an inspection. If you have any questions regarding this Charmilles EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.78" |
|---|---|
| Y-Axis Travel |
9.84" |
| Z-Axis Travel |
11.8" |
| Control |
Pentium |
| C-Axis |
Yes |
| Chuck |
3R |
| Rapid Traverse |
2.36 IPS |
| Measurement Resolution |
.00004" |
| Positioning Resolution |
.00002" |
| Max. Electrode Weight |
110 Lbs |
| Power Source |
64 AMP |
| Min. Z Dimension |
87.48" |

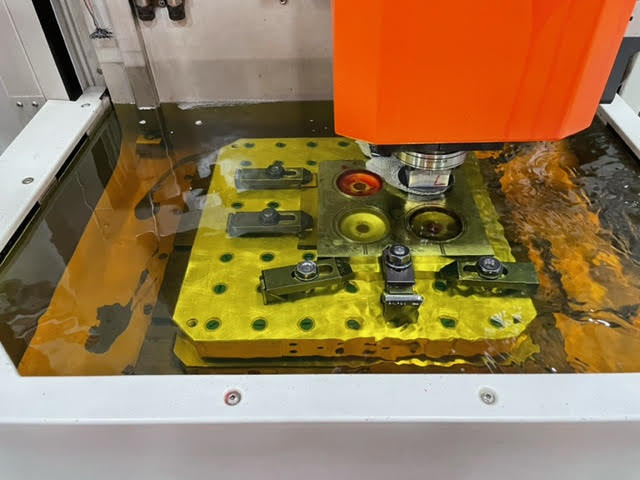

| Work Tank Max. Dielectric Level |
12.8" |
| Work Tank Dielectric Capacity |
42.27 US Gal |
| Number of T Slots |
3 |
| Max. Workpiece Dimensions |
31.5” x 21.7” x 14.6” |
| Permissible Workpiece Weight |
1,100 Lbs |
| Machine Dimensions |
66.54” x 74.8” x 99.3” |
| Note |
Not Available Until February 2023 |
Features
|
1.44 MB Floppy Drive |
Glass Scale Feedback |
|

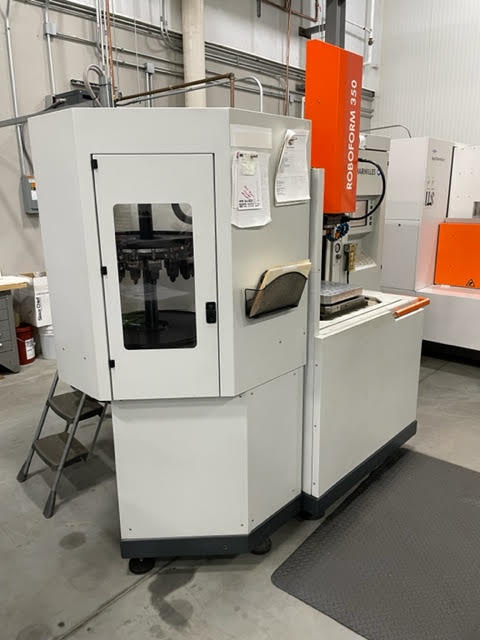

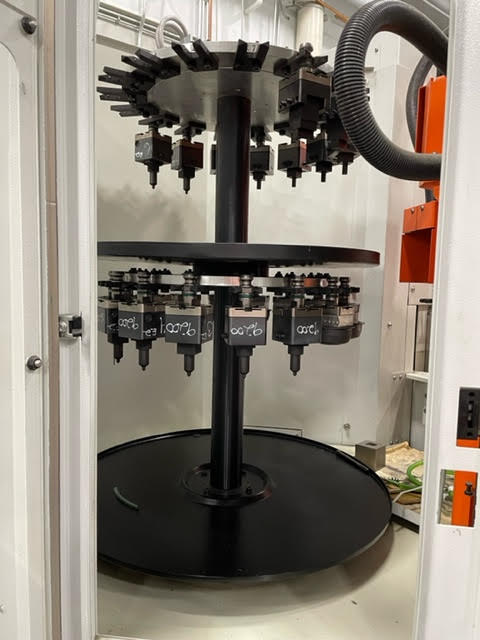

12 Position Electrode Changer |

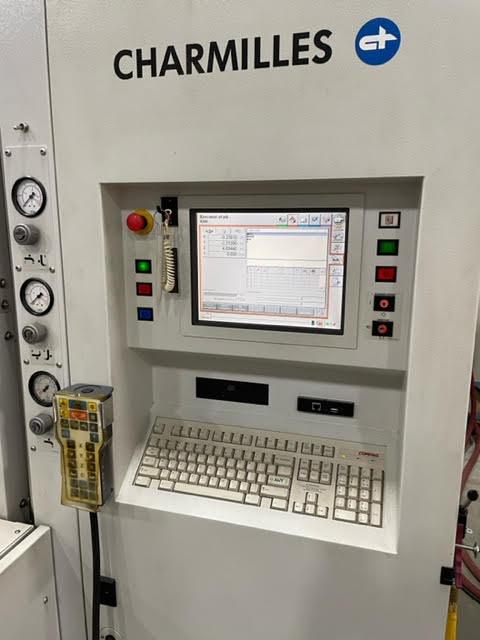

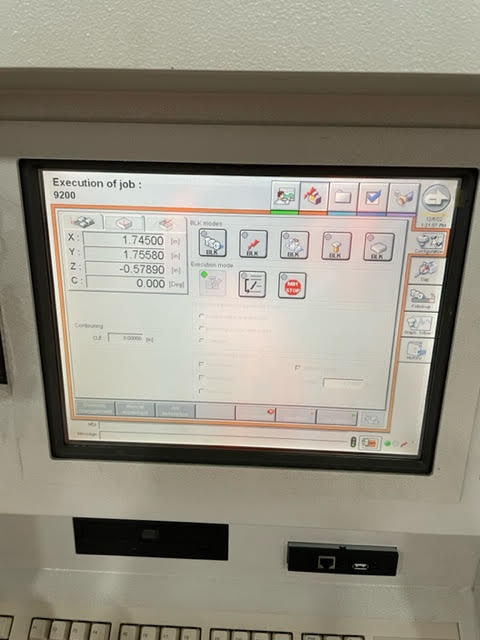

12.1 TFT Color Touch Screen |
|
RJ45 Standard Ethernet Port |
Transformer |
|

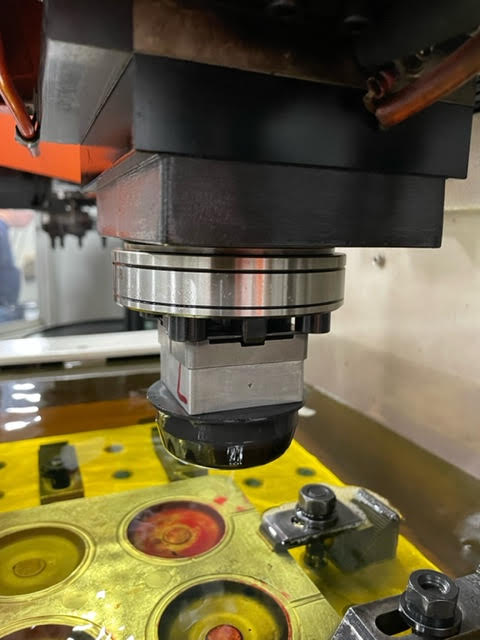

3R Combi Chuck |
512 MB RAM |
|
ISO Pulse Generator |
