| Year | 2006 |
|---|---|
| Make | Mori Seiki |
| Model | MT-3500S/3500 |
Description |
CNC Lathe |
| Reference # | 8072546 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

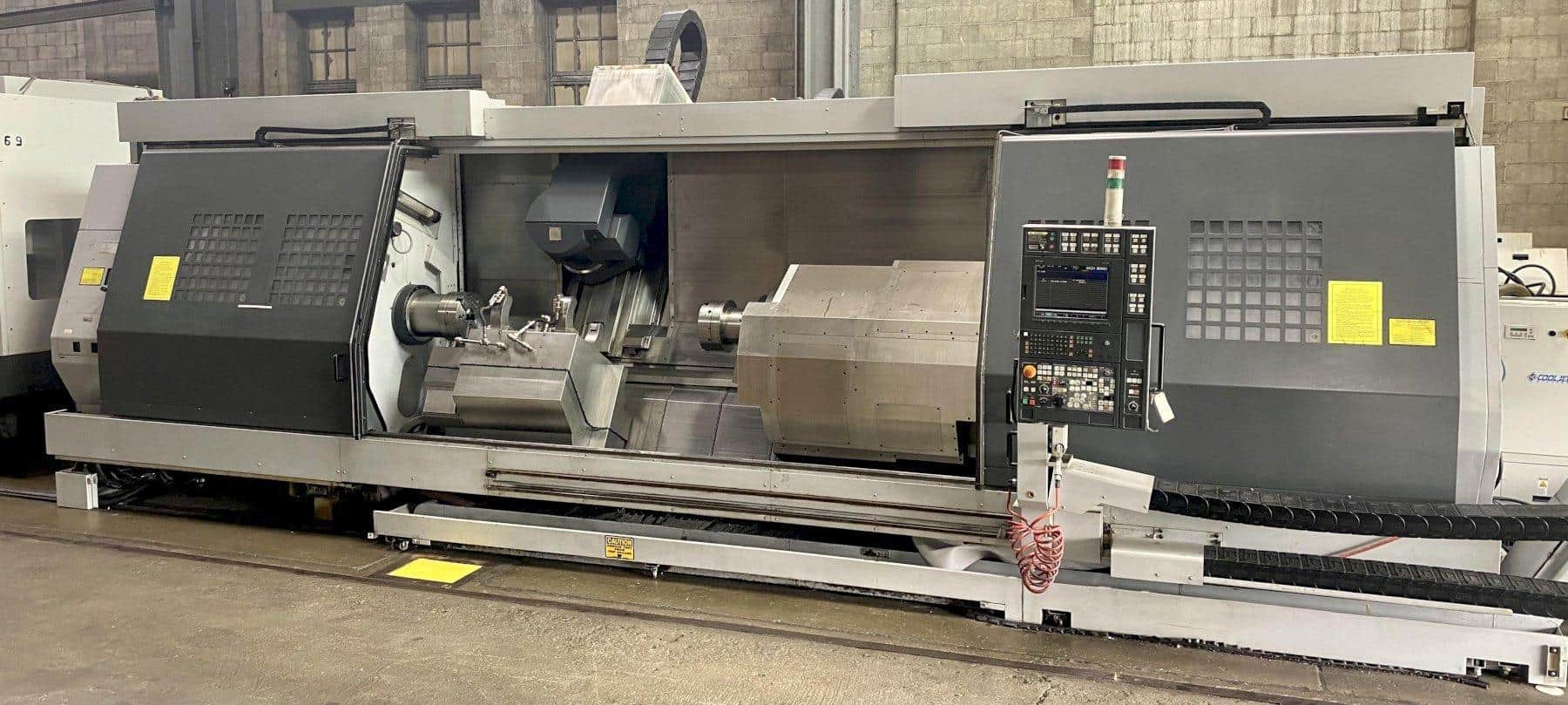

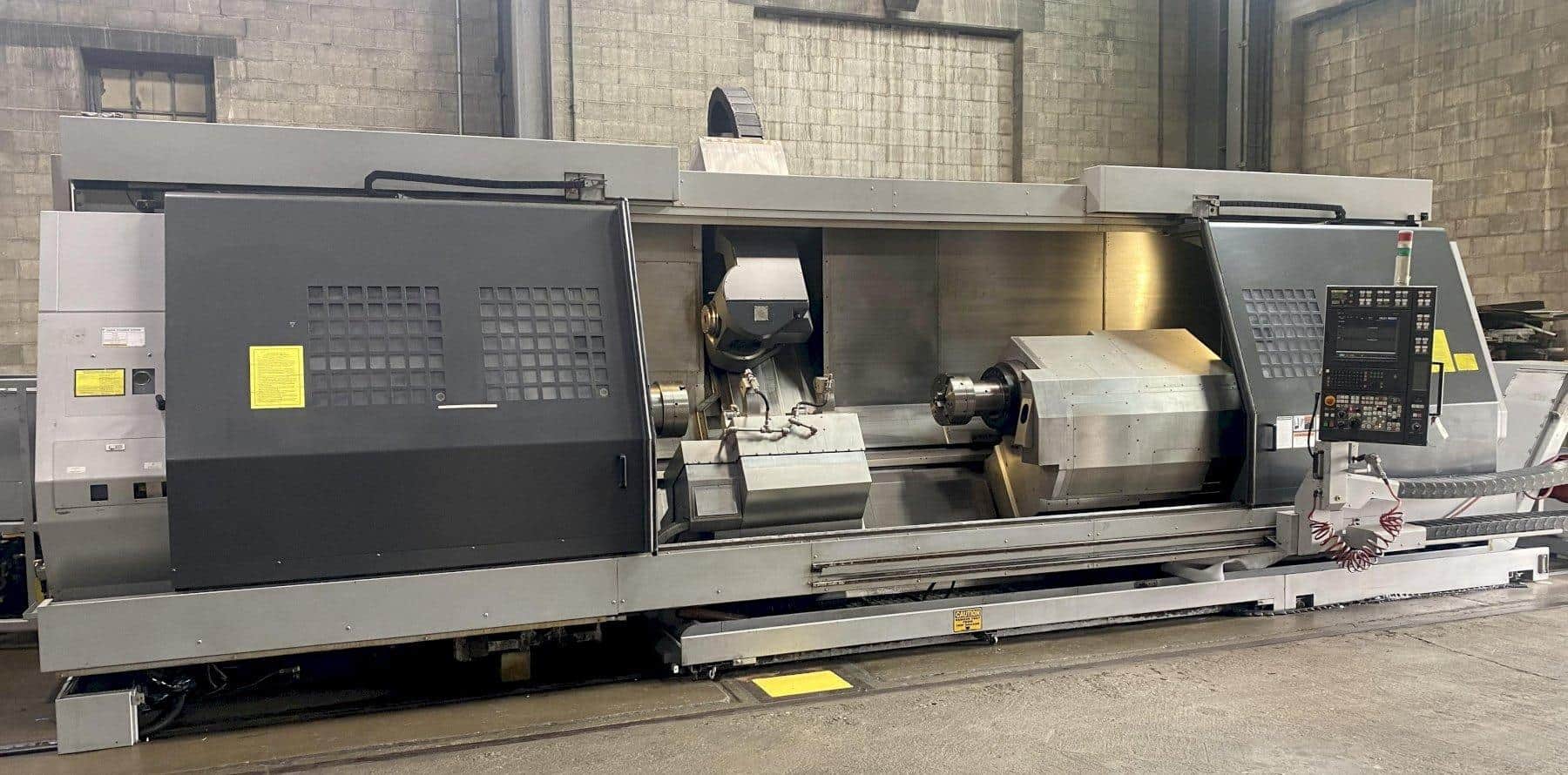

Used Mori Seiki MT-3500S/3500 (2006) CNC Lathe for Sale. This pre-owned Mori Seiki CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mori Seiki Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
12" |
|---|---|
| Bar Capacity |
4.1" |
| Swing |
31.5" |
| Turning Diameter |
22.4" |
| Spindle Speed |
3,000 RPM |

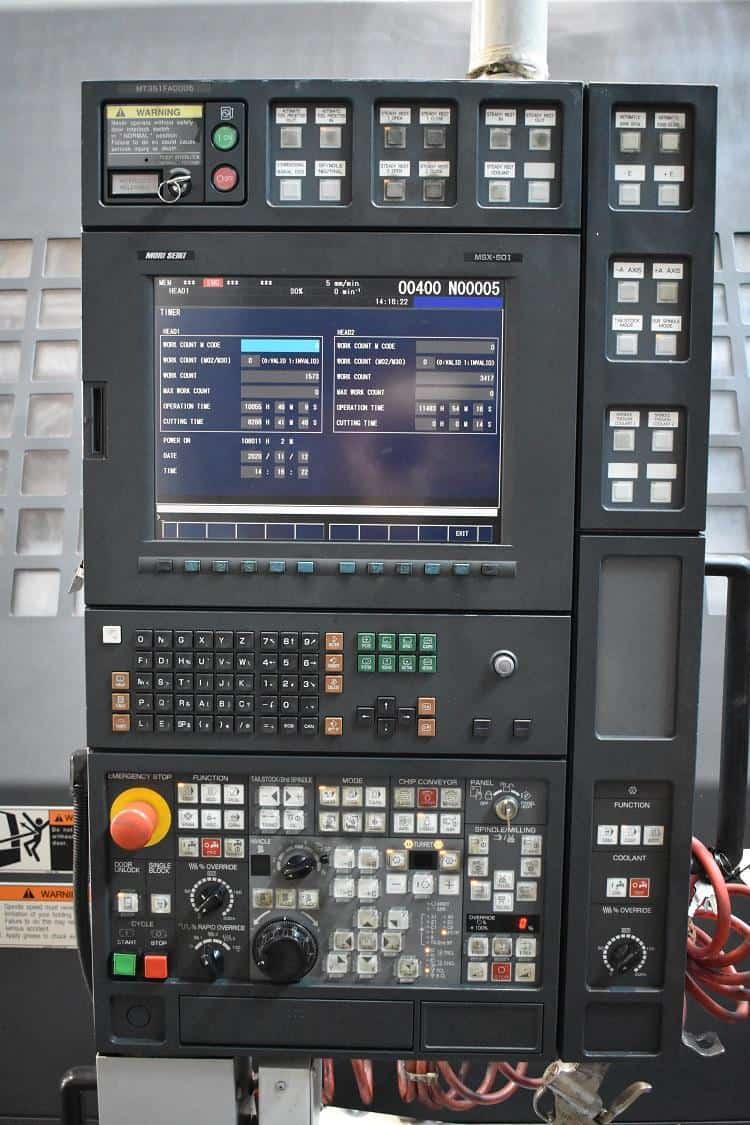

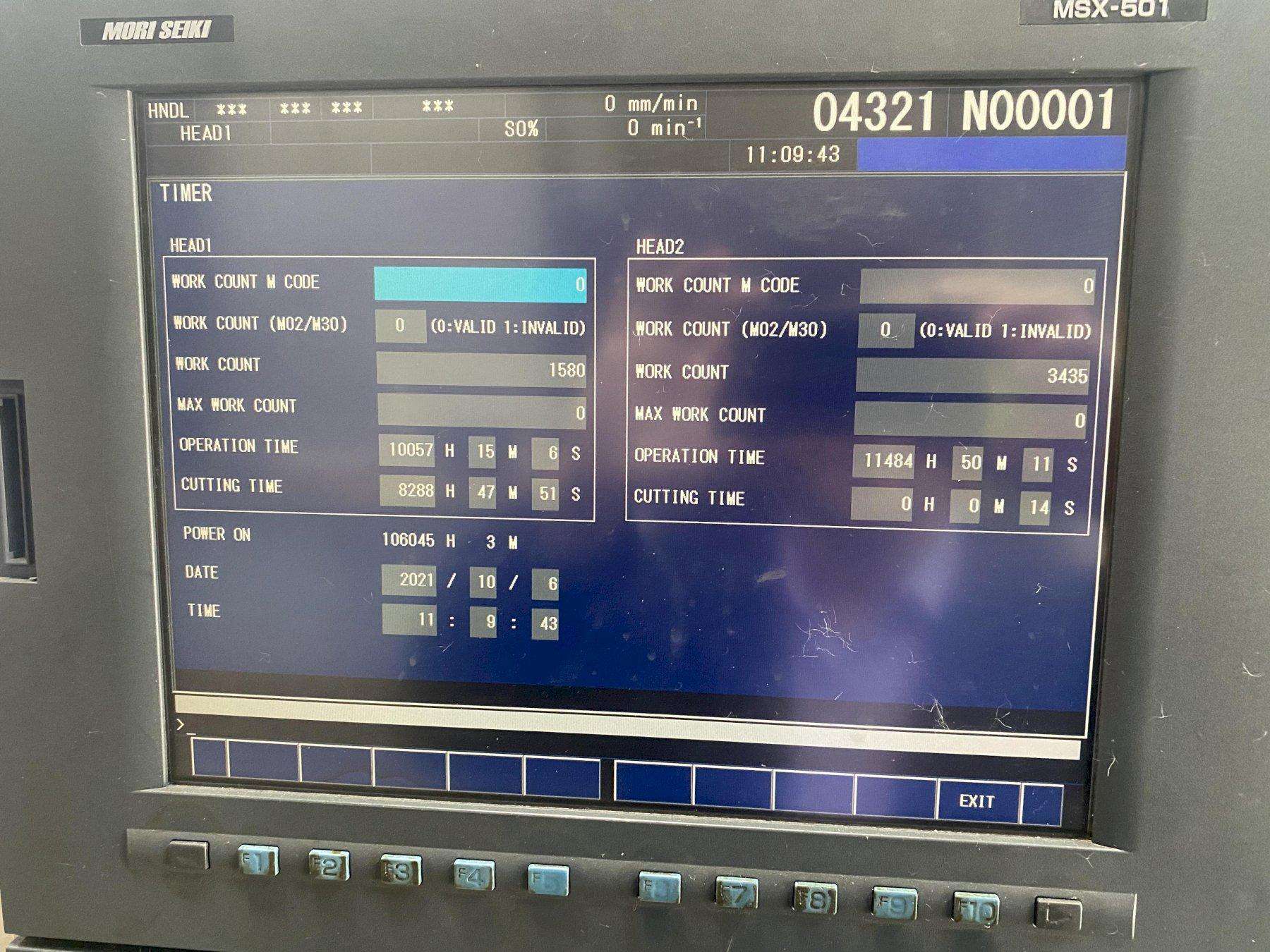

| Control |
Mori MSX-501 |
| Distance Between Centers |
125" |
| Live Tooling |
C-Axis Live Tooling |

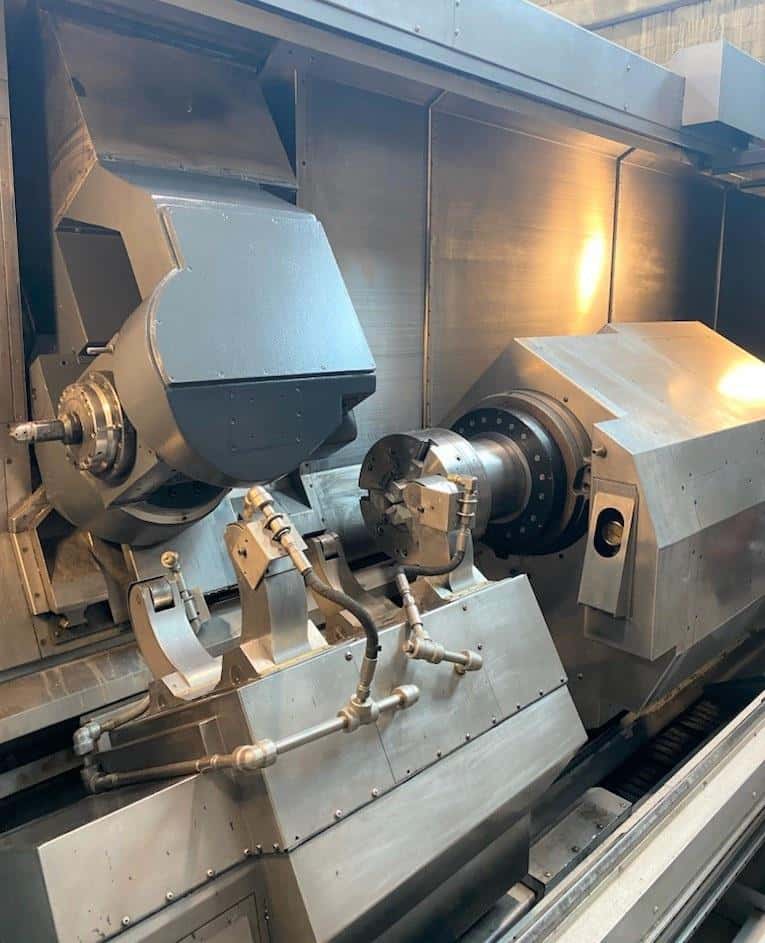

| Sub-Spindle |
50-4,000 RPM, 20 HP |
| X-Axis Travel |
25" |
| Y-Axis Travel |
+/- 4.3" |
| Z-Axis Travel |
125" |
| C-Axis |
.001 Degree |
| B-Axis |
180 Degree |
| Main/Sub Spindle Thru Hole |
4.1" |
| X-Axis Rapid Traverse Rate |
944 IPM |
| Z-Axis Rapid Traverse Rate |
1,181 IPM |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
480/3/60 |
| Approximate Machine Dimensions |
348" x 133" x 129" H |
| Approximate Machine Weight |
72,000 Lbs |
Features
|
(2) 12" 3-Jaw Chucks on Main and Sub-Spindle |
(2) 12" Programmable Turn Through Steady Rest |
|
(25) Toolholders Included |
1000 PSI Cooljet High Pressure Systems |
|
Hydraulic Unit |
120 ATC |
|
Through Spindle Coolant |
8-Axis |
|
A2-8 Spindle Nose Main and Sub |
Automatic Doors |
|
C-Axis Synchronize Function |
MAPPS Software |
