| Year | 2006 |
|---|---|
| Make | Mori Seiki |
| Model | SL-603 |
Description |
CNC Lathe |
| Reference # | 8070576 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

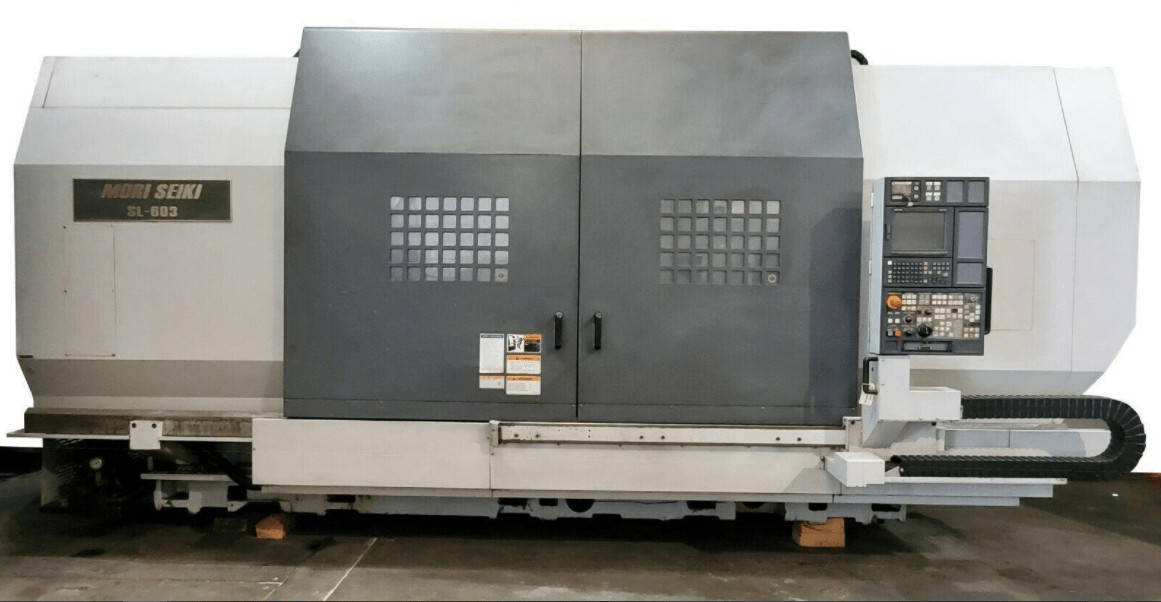

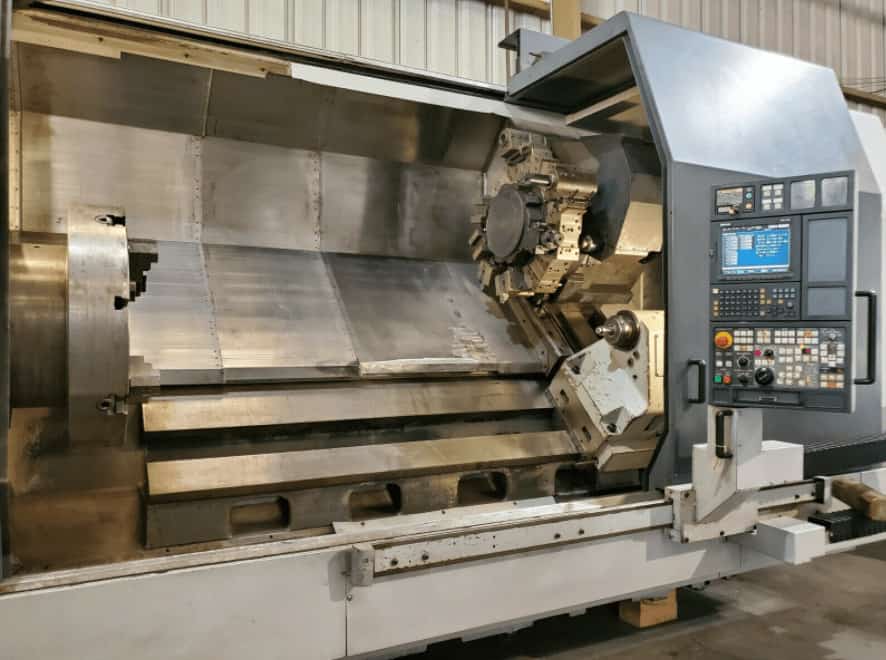

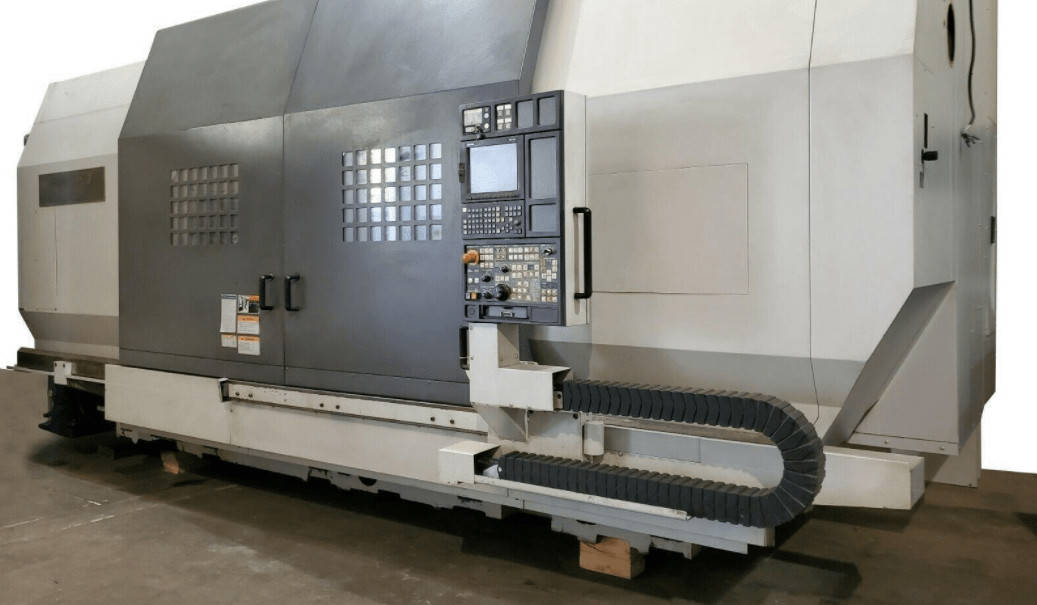

Used Mori Seiki SL-603C (2006) CNC Lathe for Sale. This pre-owned Mori Seiki CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mori Seiki Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
31" |
|---|---|
| Bar Capacity |
10.8" |
| Swing |
39.1" |
| Turning Diameter |
36.6" |
| Spindle Speed |
1,010 RPM |
| Control |
Mori Seiki MSX-501 |
| Distance Between Centers |
90" |
| Turret |
10 |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| Machine Dimensions |
275" x 88" x 108" |
| Machine Weight |
43,000 Lbs |
Features
|
Coolant System |
Manuals |
|
Programmable Tailstock |
3000 RPM Milling Turret with Rigid Tapping |
|
60/50 HP Gearbox Spindle |
A1-20 Spindle with 10.8" Bore |
|
conversational auto programming |
Foot Switch |
|

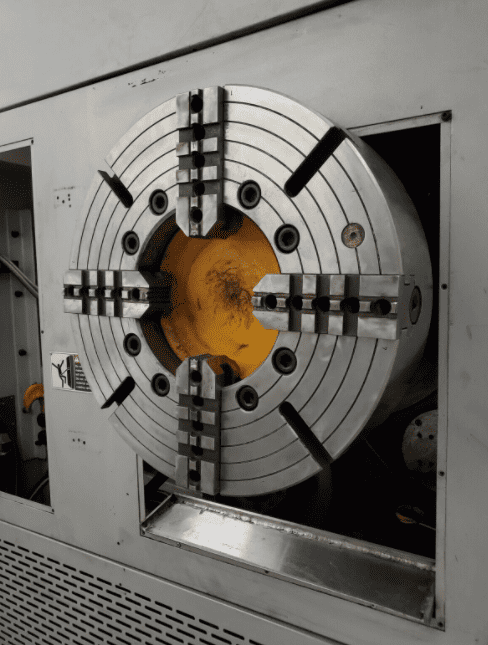

Front 24" 4-Jaw Chuck |

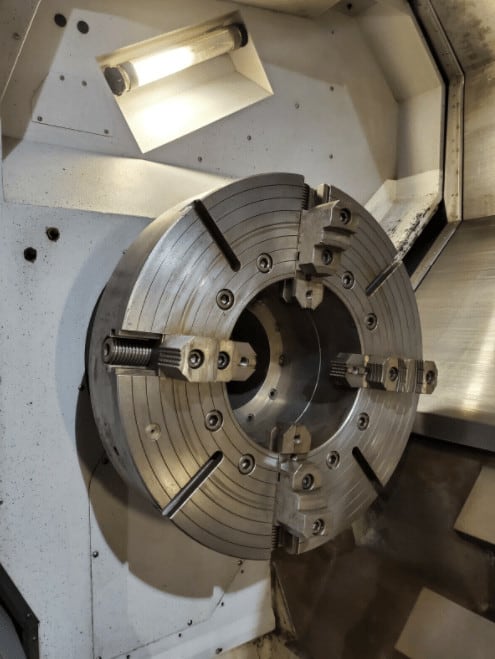

Front 31" 4-Jaw Chuck |
|

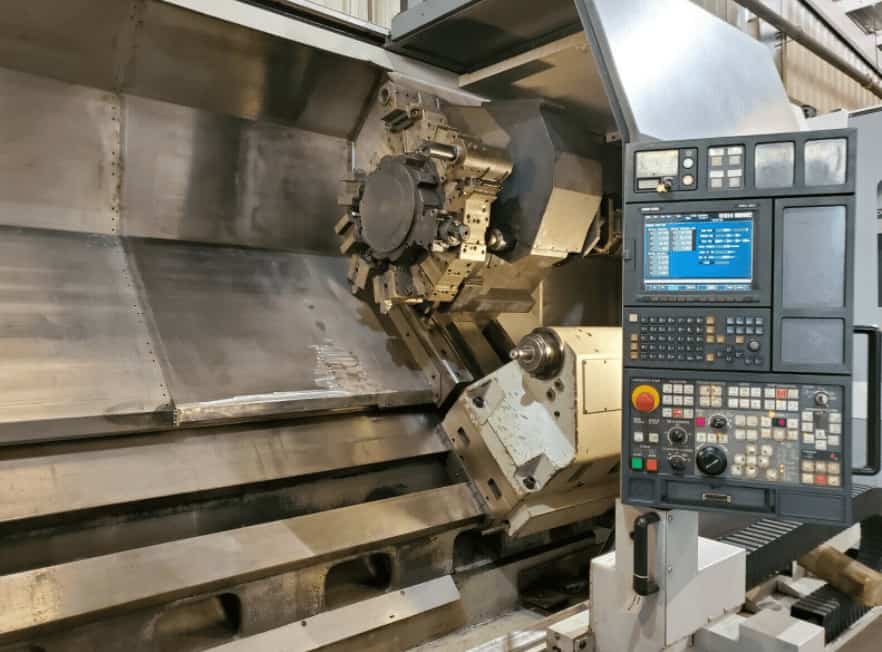

Live and Static Tool Holders |

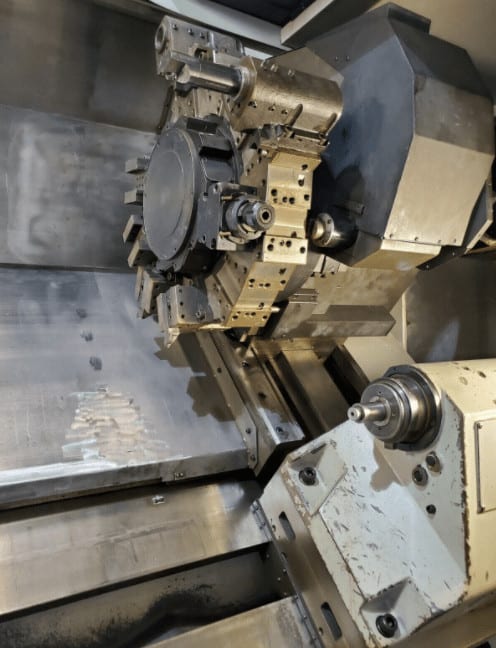

Live Tool 10-Station High Speed Turret (0.4 second) |
|
PCMCIA Card Interface |
