| Year | 2008 |
|---|---|
| Make | Mitsubishi |
| Model | EA12V Advance |
Description |

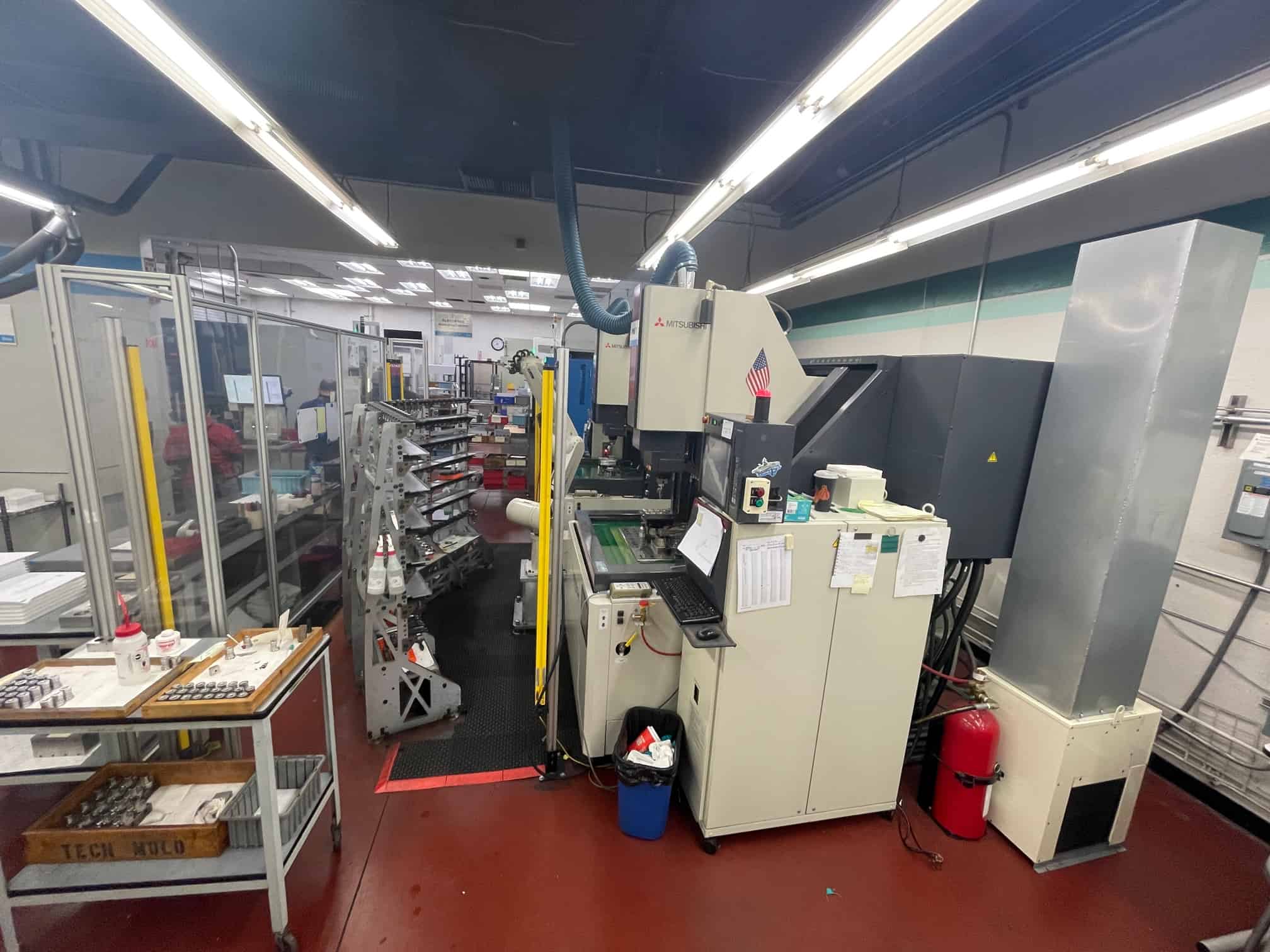

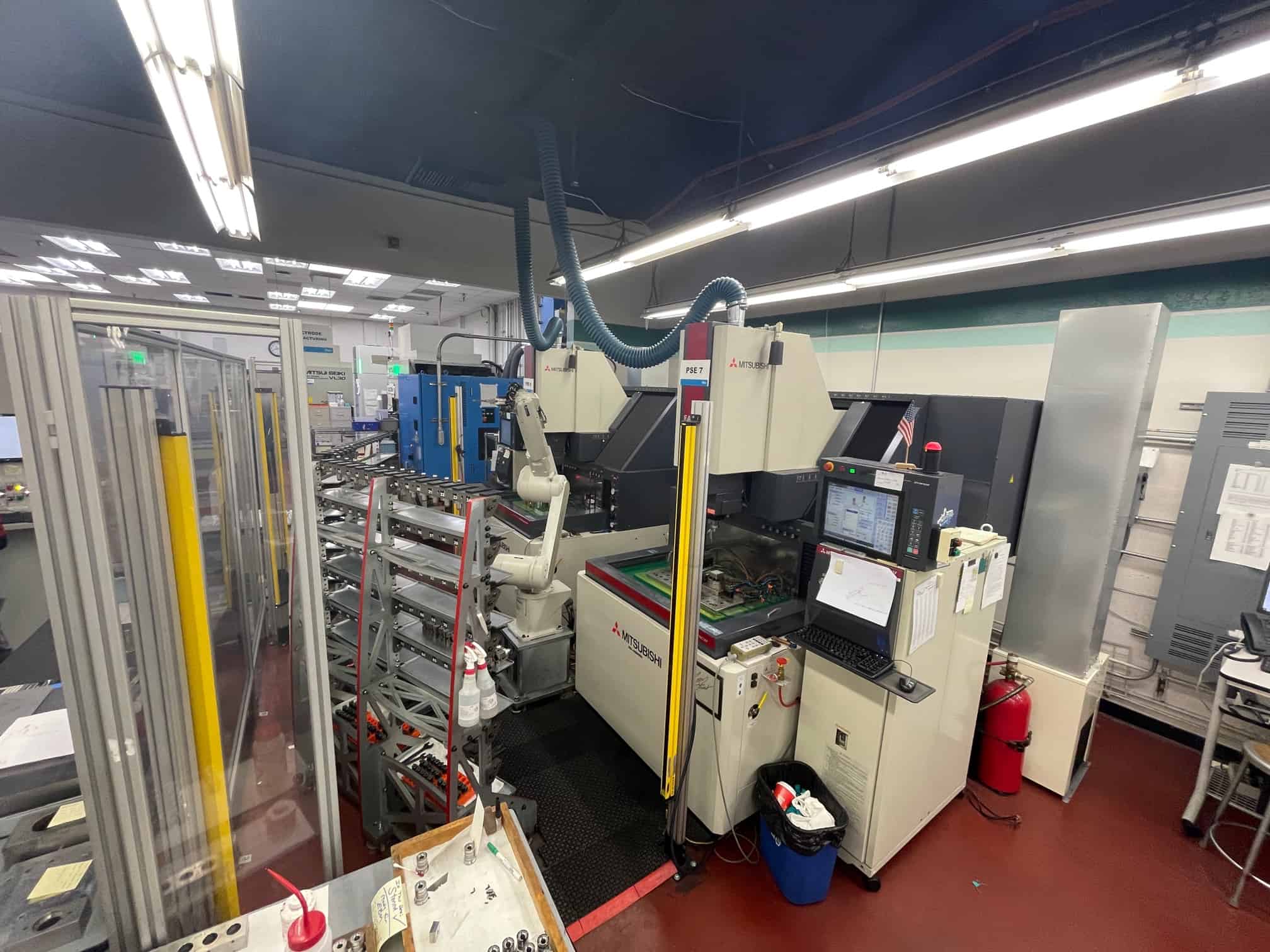

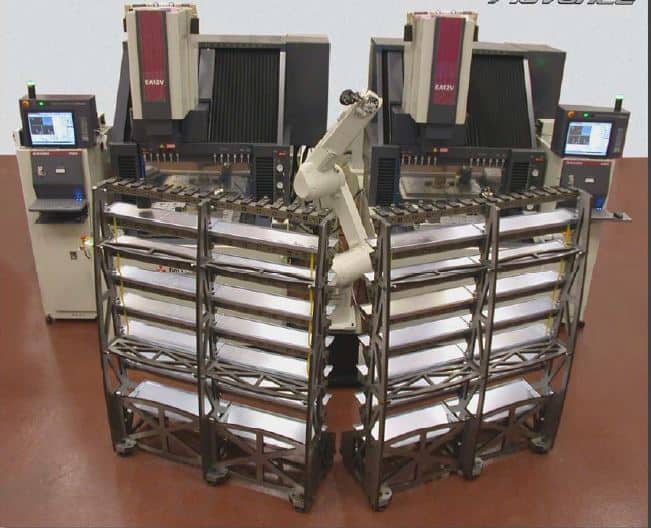

Dual EDM Sinker Cell w/ Melfa Robot |
| Reference # | 8071855 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

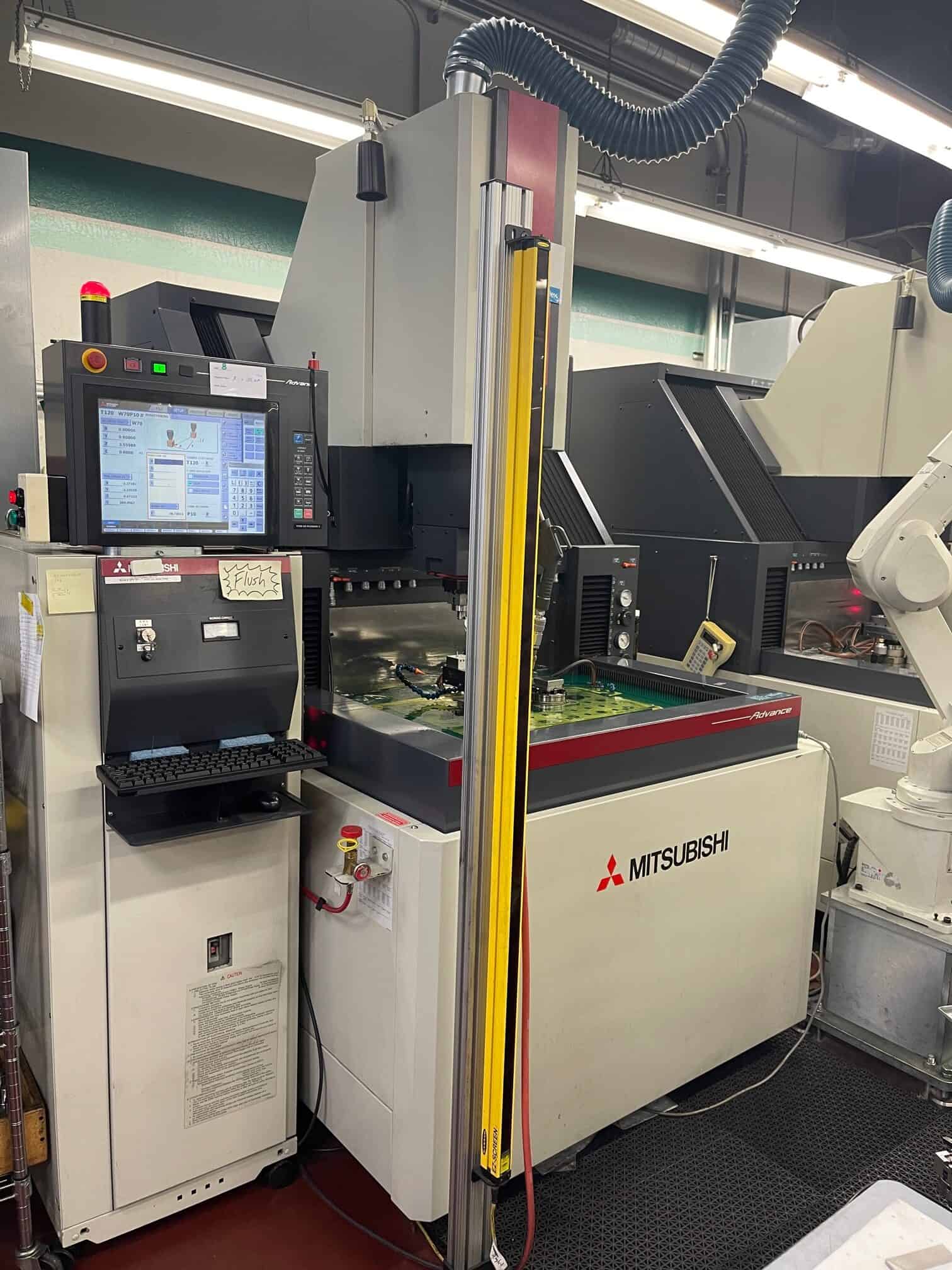

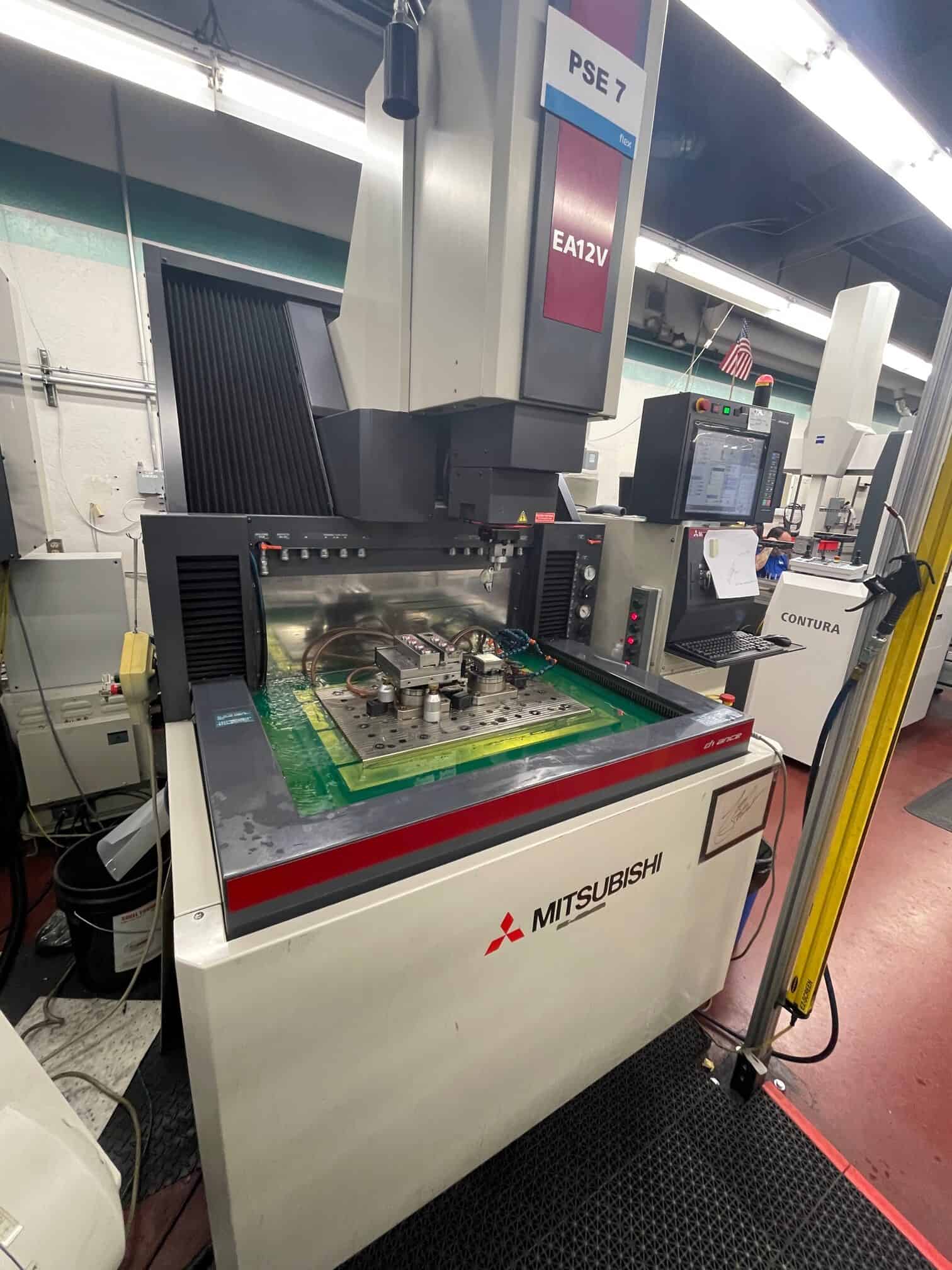

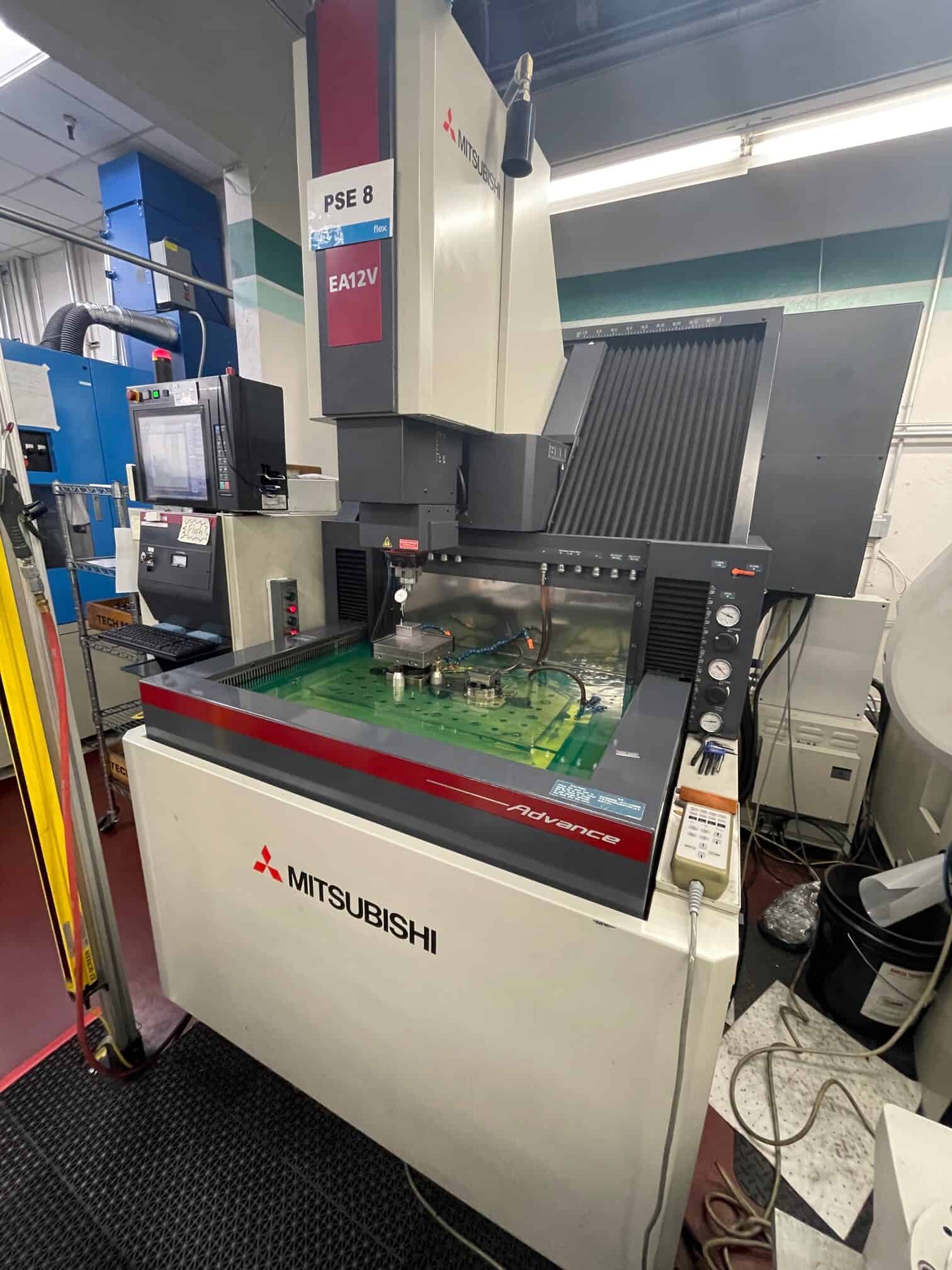

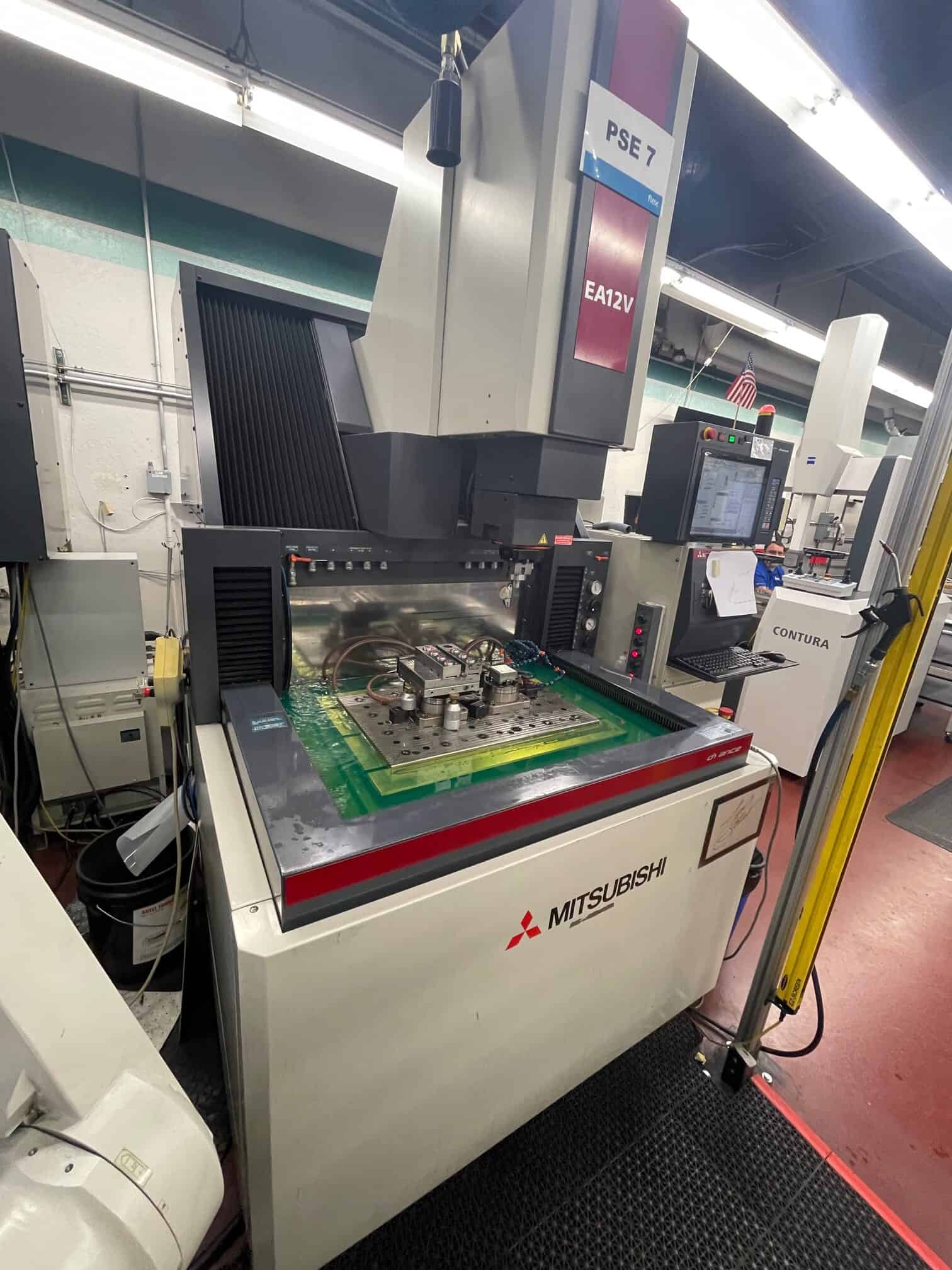

Used Mitsubishi EA12V Advance (2008) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker cell is located in Arizona and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8” |
| Z-Axis Travel |
11.8" |
| Control |
Mitsubishi |
| Tool Changer |
224 |
| Power Source |
80 AMP |
| C-Axis |
Yes |
| Chuck |
3R |
| Power Requirement |
200-220/3/60 |
| Min. Drive Unit |
.001" |
| Min. Indexing Angle |
.001" |
| Max. RPM |
10 / 20 |
| Rapid Travel Speed |
78.74 IPM |
| Min. Drive Resolution |
.00005mm / .000002” |
| Min. Command Input |
.0001mm / .00001” |
| FP80V Machining Current |
Peak 80 |
| Dielectric Fluid Level (Max/Min) |
11.8 / 3.9" |
| Reservoir Capacity |
105 Gal |
| Table Dimensions (W x D) |
27.5 x 19.6" |
| Max. Electrode Weight |
110 Lbs |
| Max. Workpiece Weight |
1,540 Lbs |
| Floor to Table-Level Distance |
35" |
| Work Tank Internal Dimensions (W x D x H) |
33.46" x 23.62" x 13.78" |
| Table to Electrode Mounting Surface (Max/Min) |
19.6 / 7.8" |
| Machine Weight (Including Power Supply) |
8,157 Lbs |
| Machine System Dimensions (W x D x H) |
68.9" x 80.7" x 93.1" |
| Floor Space Requirement (with Access Clearance) |
83.6" |
| Installation Dimensions (W x D with Access Clearance) |
102.3" x 118.1" |
Features
|
Positioning Detector All-Axes Linear Scales |

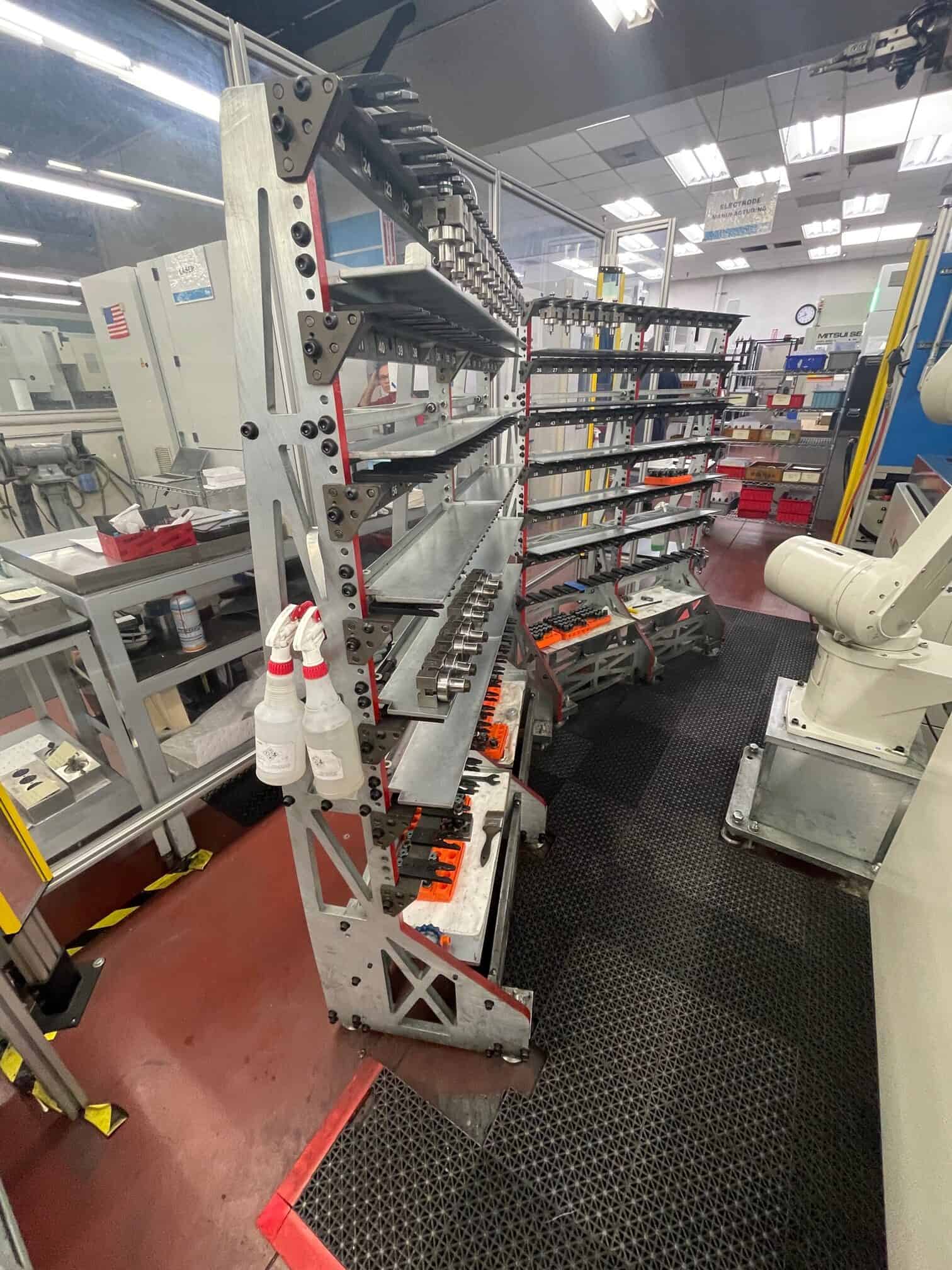

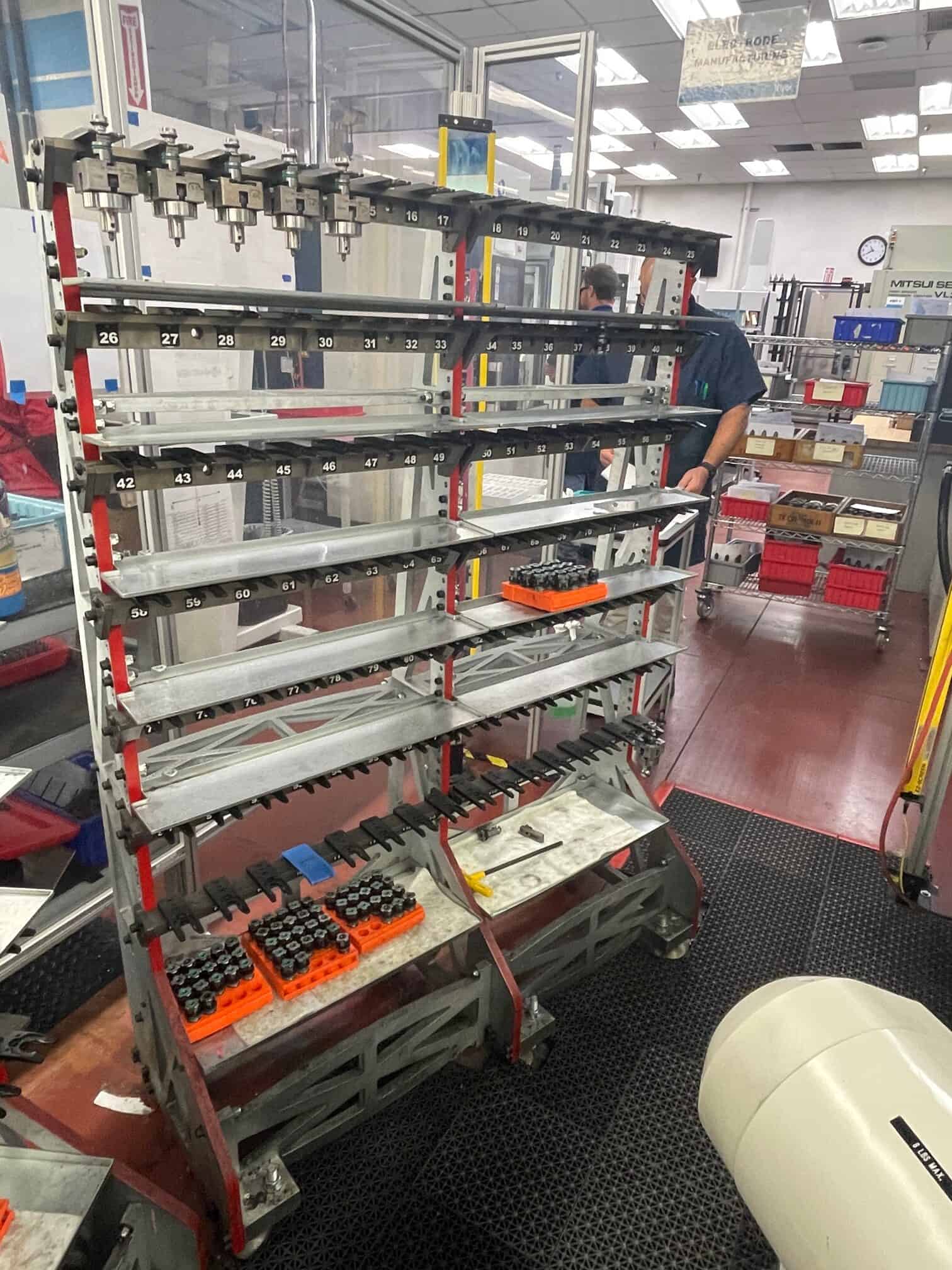

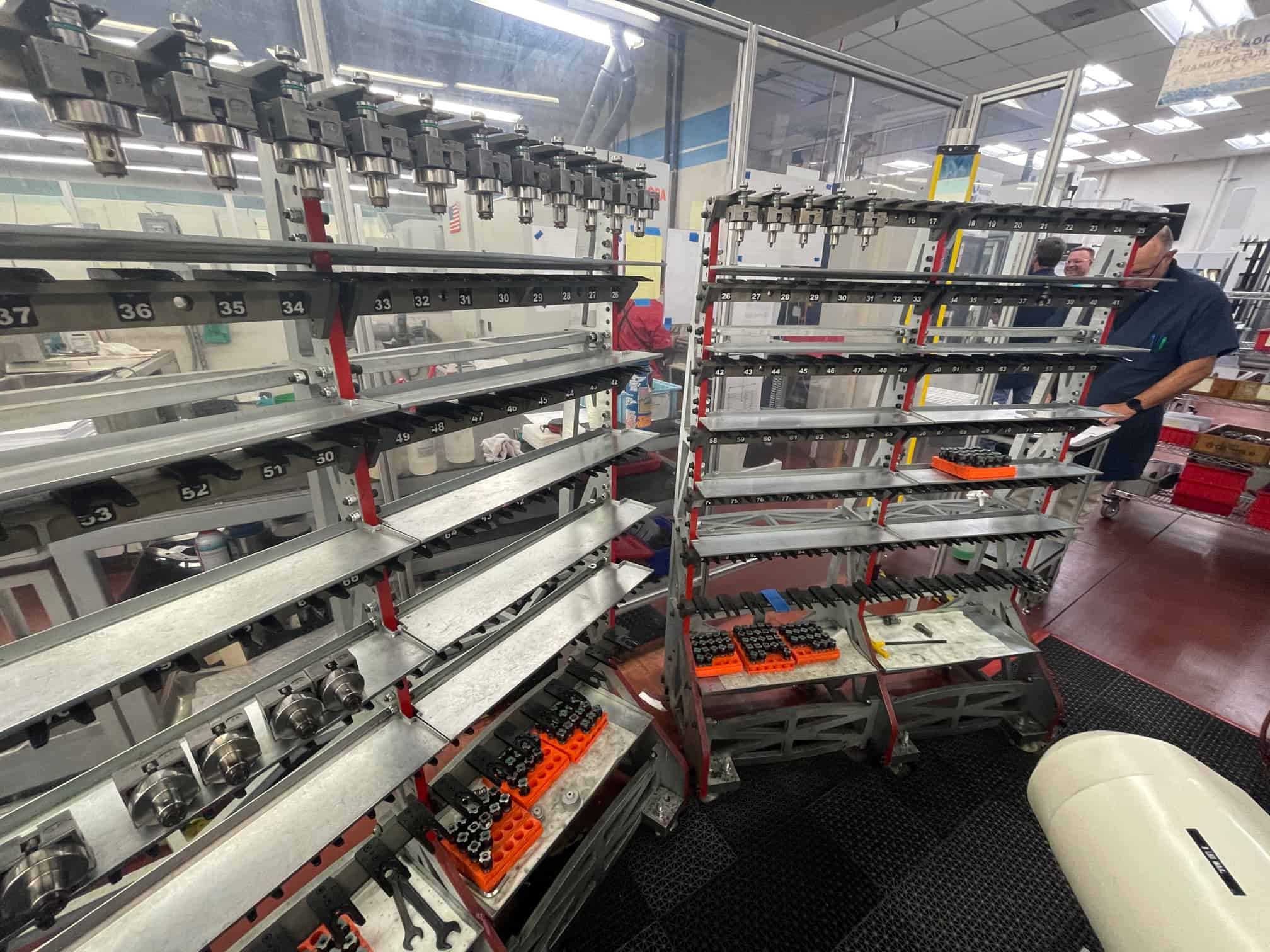

(2) 112 Position Storage Racks for Workpiece and Electrodes |
|
Auto Lubrication Device |
Program Support Function ESPER |
|
Dielectric Fluid Emission |
Dielectric Fluid Suction |
|
Rapid Fill/Auto Drain (Std) |
Remote Pendant Box |
|
C-Axis Macro |

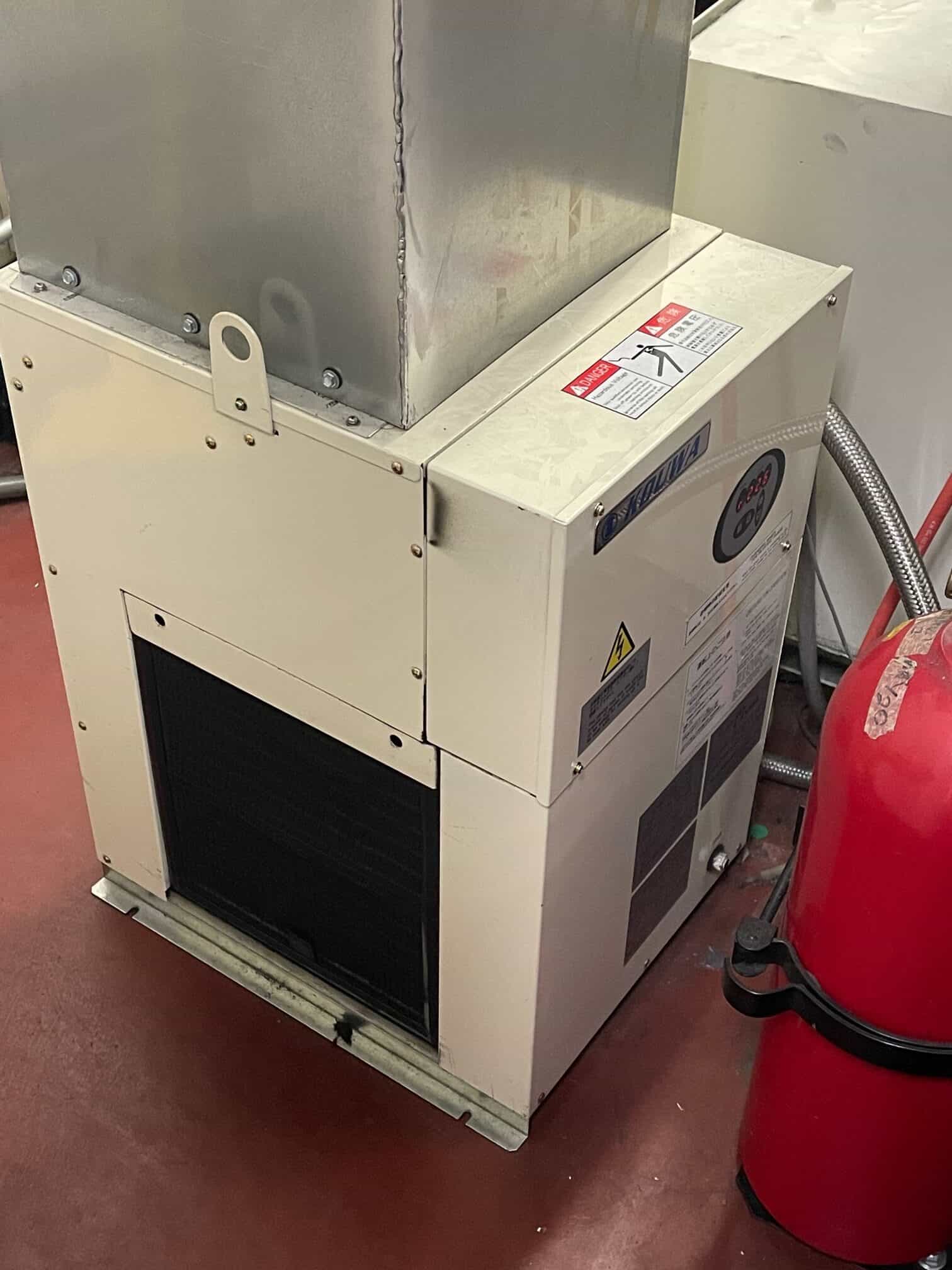

Chiller FTS |
|
CPU/Type 64 Bit/PC |
Direct Drive Motor Coupling Type |
|
DNC Hardware (Ethernet FTP) |
Filtering Method Paper Cartridge (2 PC) |
|
Fire Extinguisher |
Fixed Table/Traveling Column |
|
Graphic Display 10.4” TFT Color LCD |
Intelligent AC Servo Drive Motor |
|
Linear Scales Glass Scale Feedback |
Machining Function Fuzzy Pro-Plus/Orbit Pro |
|

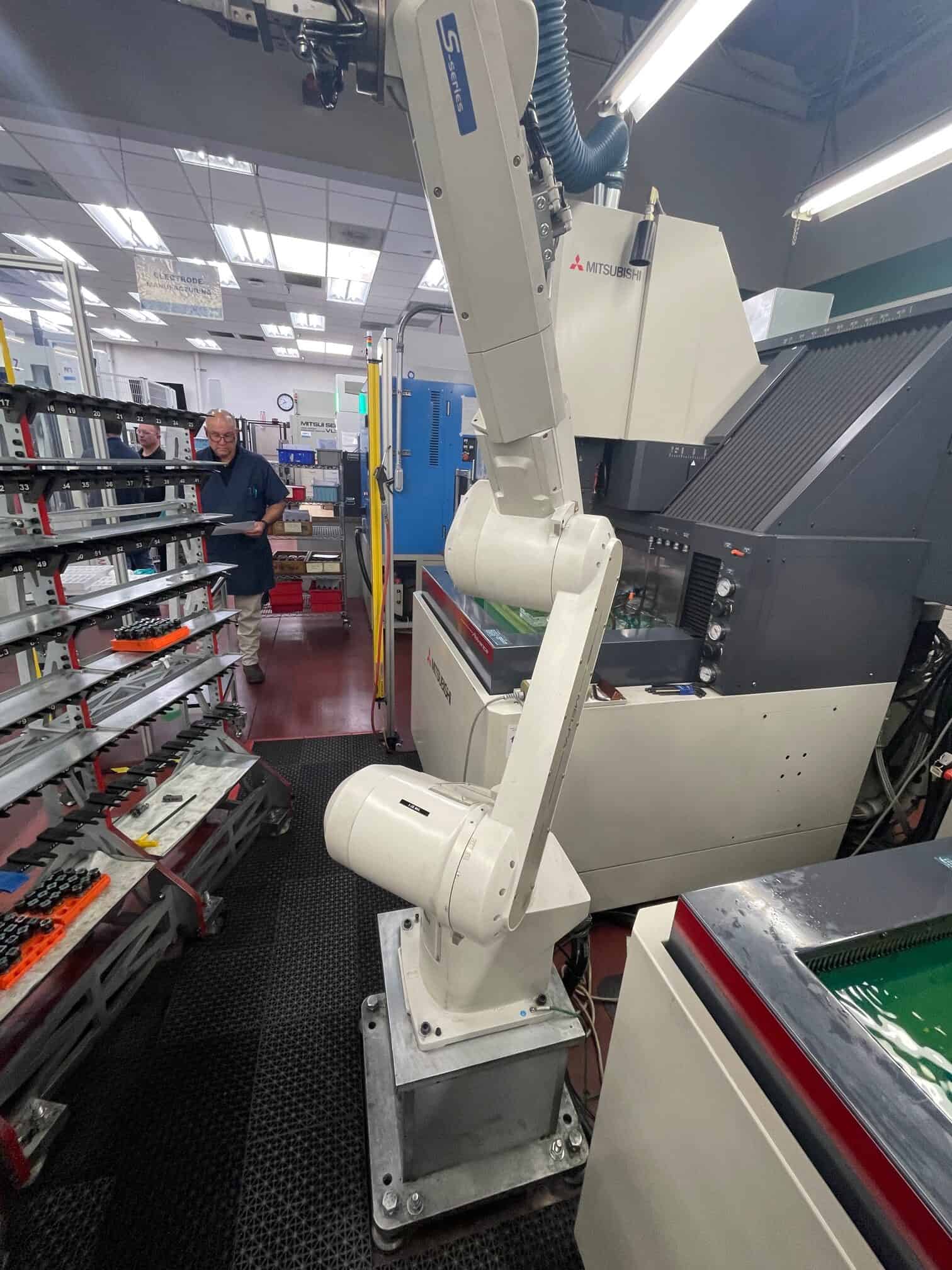

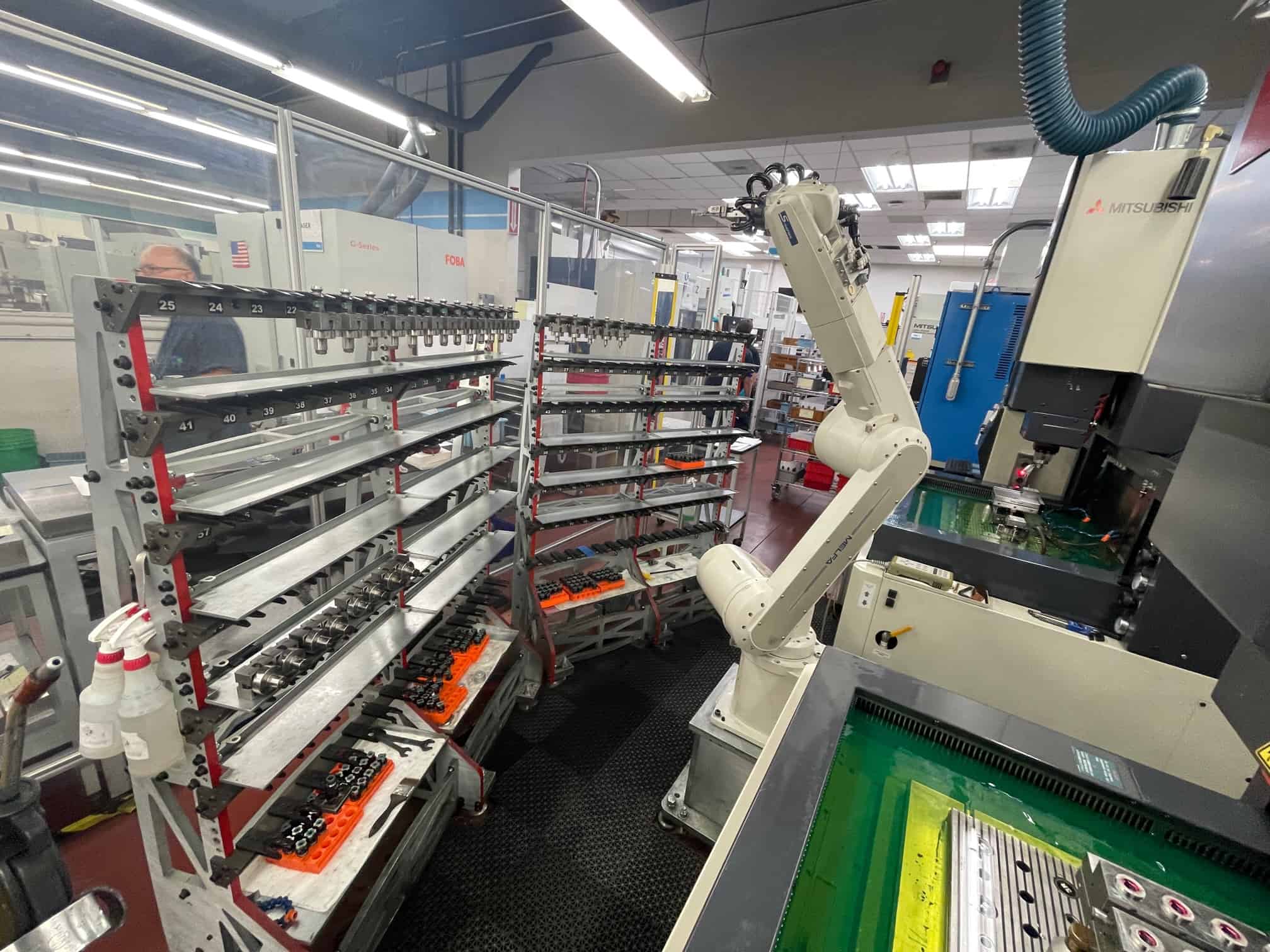

Melfa Robot RV-12SL 6-Axis Fully Interfaced to Both Machines |
Work Tank Access 3 Sided Drop Tank |
