| Year | 2012 |
|---|---|
| Make | Mitsubishi |
| Model | FA10 |
Description |
EDM Wire |
| Reference # | 8071513 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

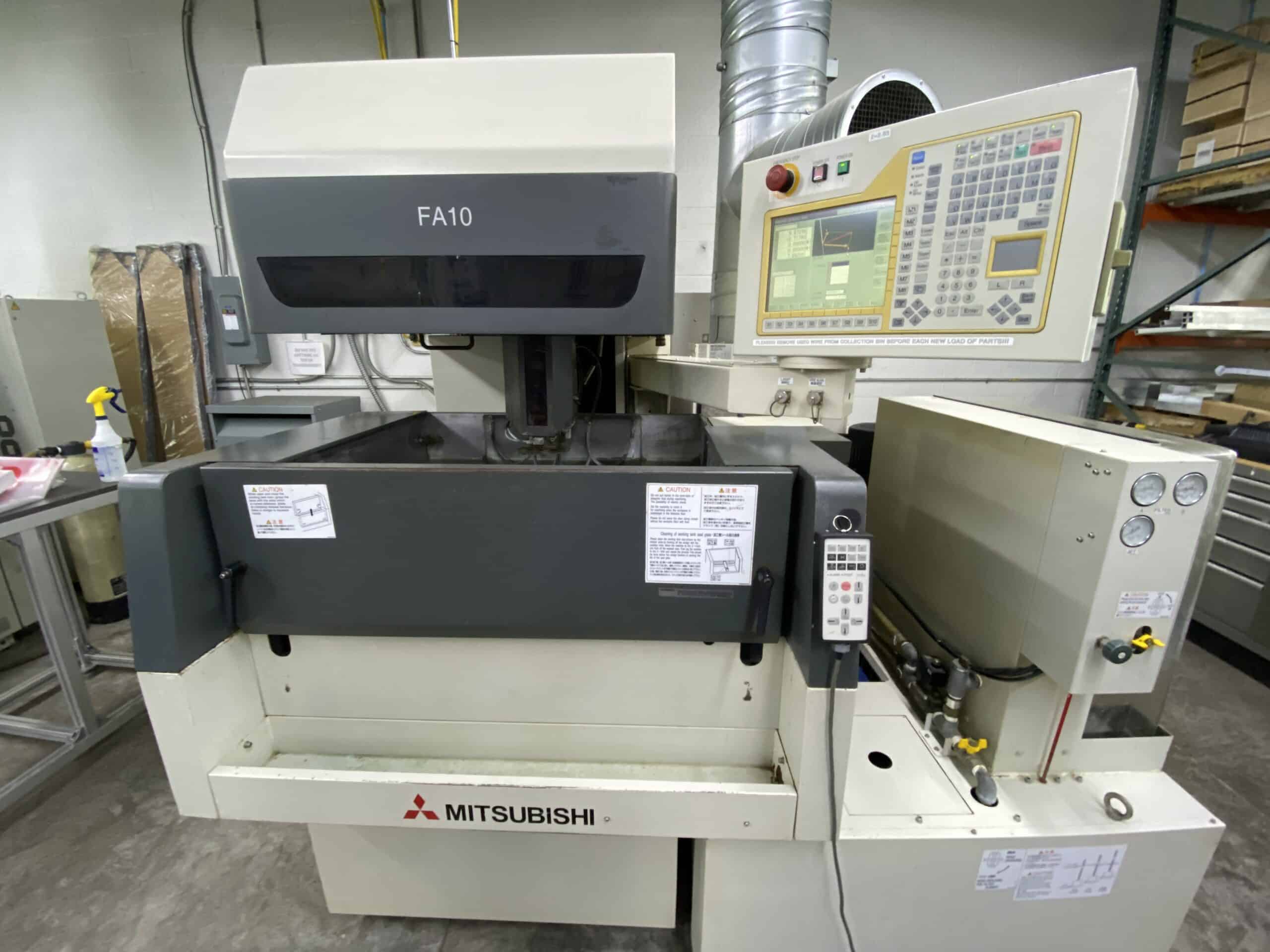

Used Mitsubishi FA10 (2012) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |
| Control |

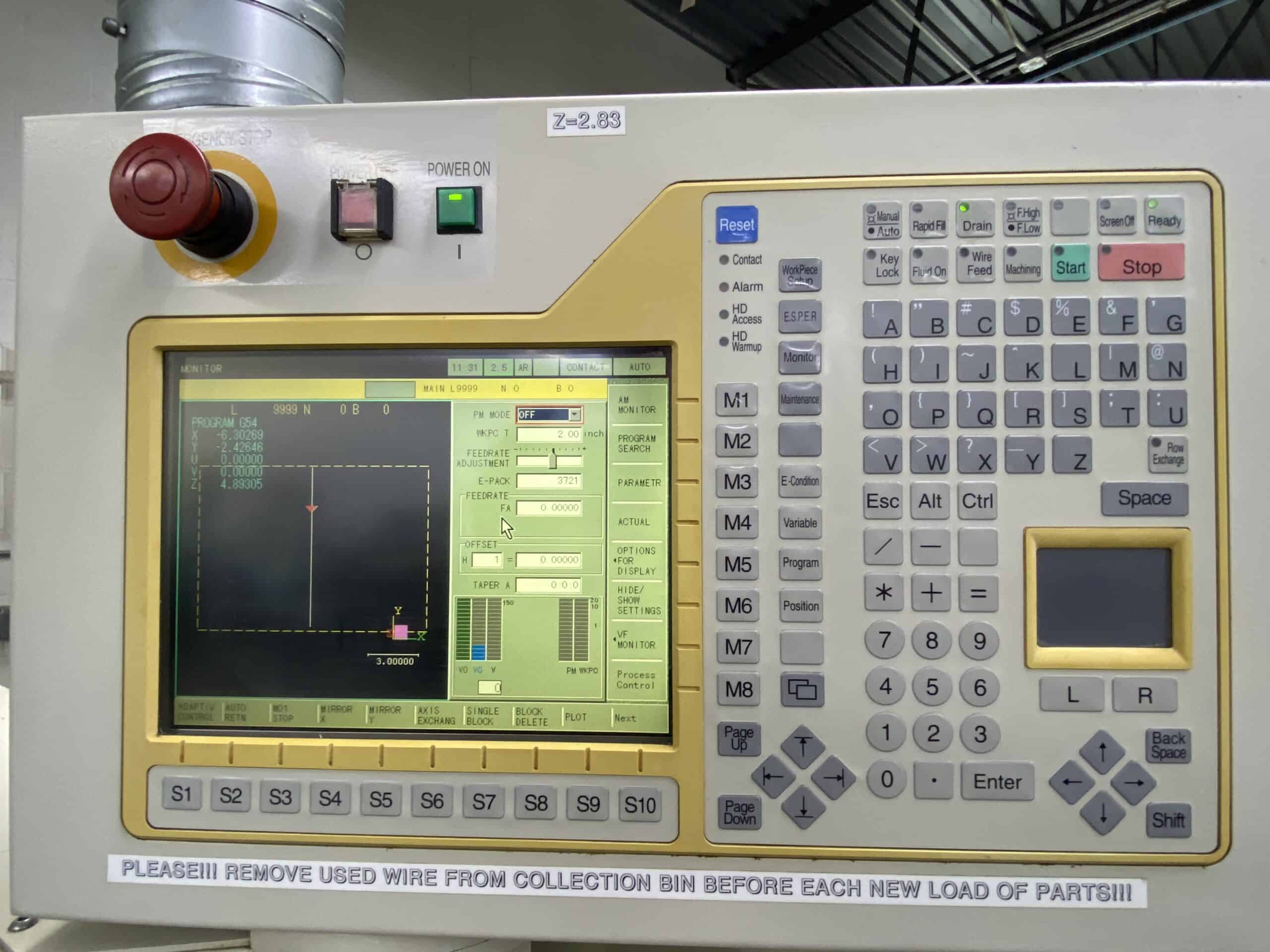

Mitsubishi 64 Bit Controller |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 at 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-230/3/60 |
| Wire Tension |
50 ~ 2500 (g) |
| Table Rapid Feed |
51.2 IPM |
| Guides |
.010" |
| Resolution |
.000002" |
| Dielectric System Dimensions |
40.1" x 60.6" x 59.1" |
| Filter Tank Capacity |
116 Gallons |
| Dielectric System Weight |
770 Lbs (Empty) |
| Table Dimensions |
23.2" x 20.2" |
| Workpiece Weight |
1,100 Lbs |
| Max. Workpiece Dimensions |
31.4" x 23.6" x 8.4" |
| Machine Weight |
4,400 Lbs |
| Machine Dimensions |
62.0" x 65.6" x 75.9" |
| Note |
Originally Manufactured in 2001, Fully Reconditioned by Encore in 2012 |
Features
|
Auto Oiler |
Auto Power Recovery |
|

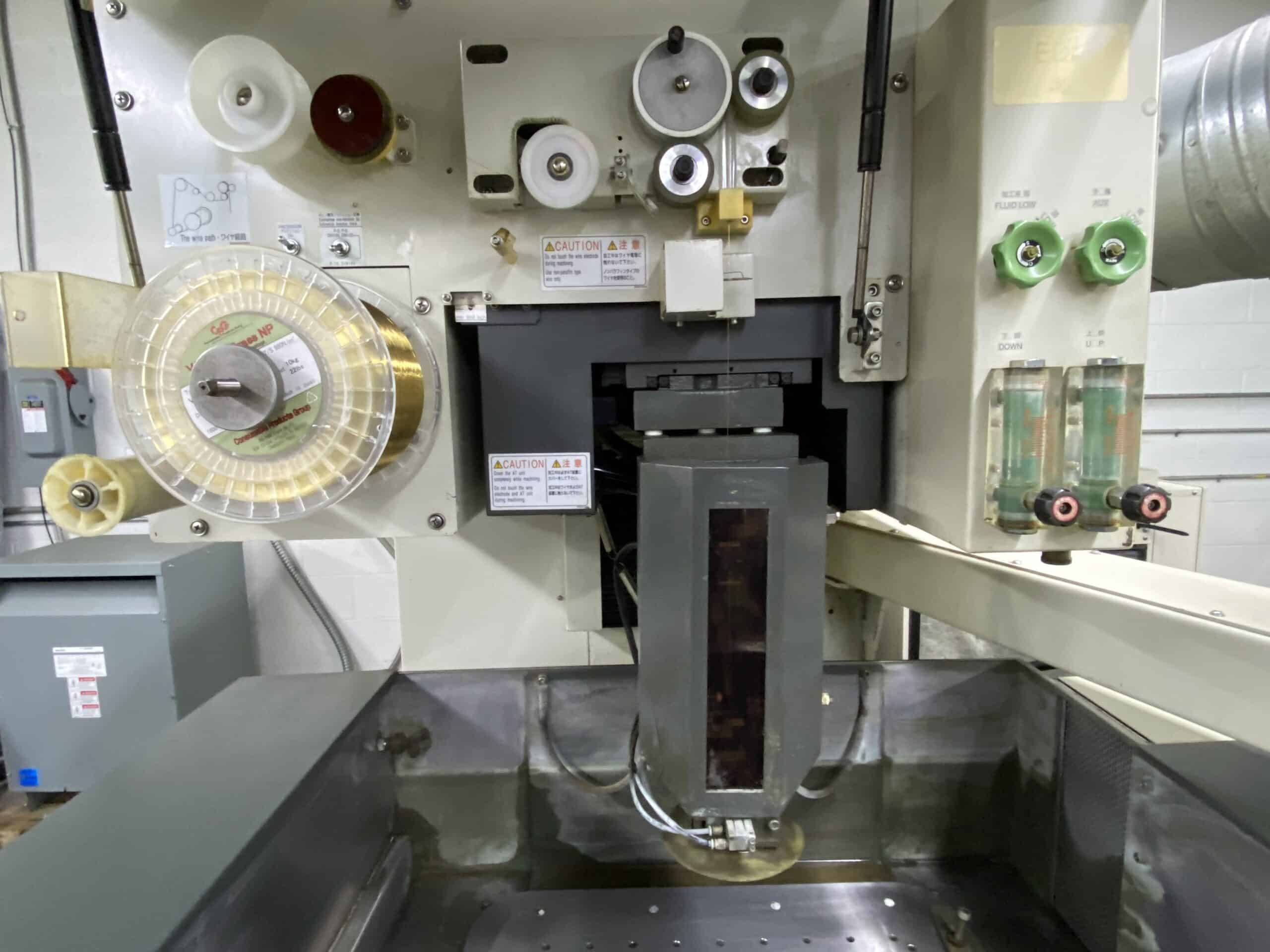

Auto Wire Threading |
Chiller |
|
Fast Fill Pump |
10 KG (22lb) Wire Spool |
|
Hand Pendant Controller |
Rotary Scales Glass Scale Feedback |
|
Wire Alignment Gauge |
4-Sided Table |
|
Ethernet Connection with FTP |

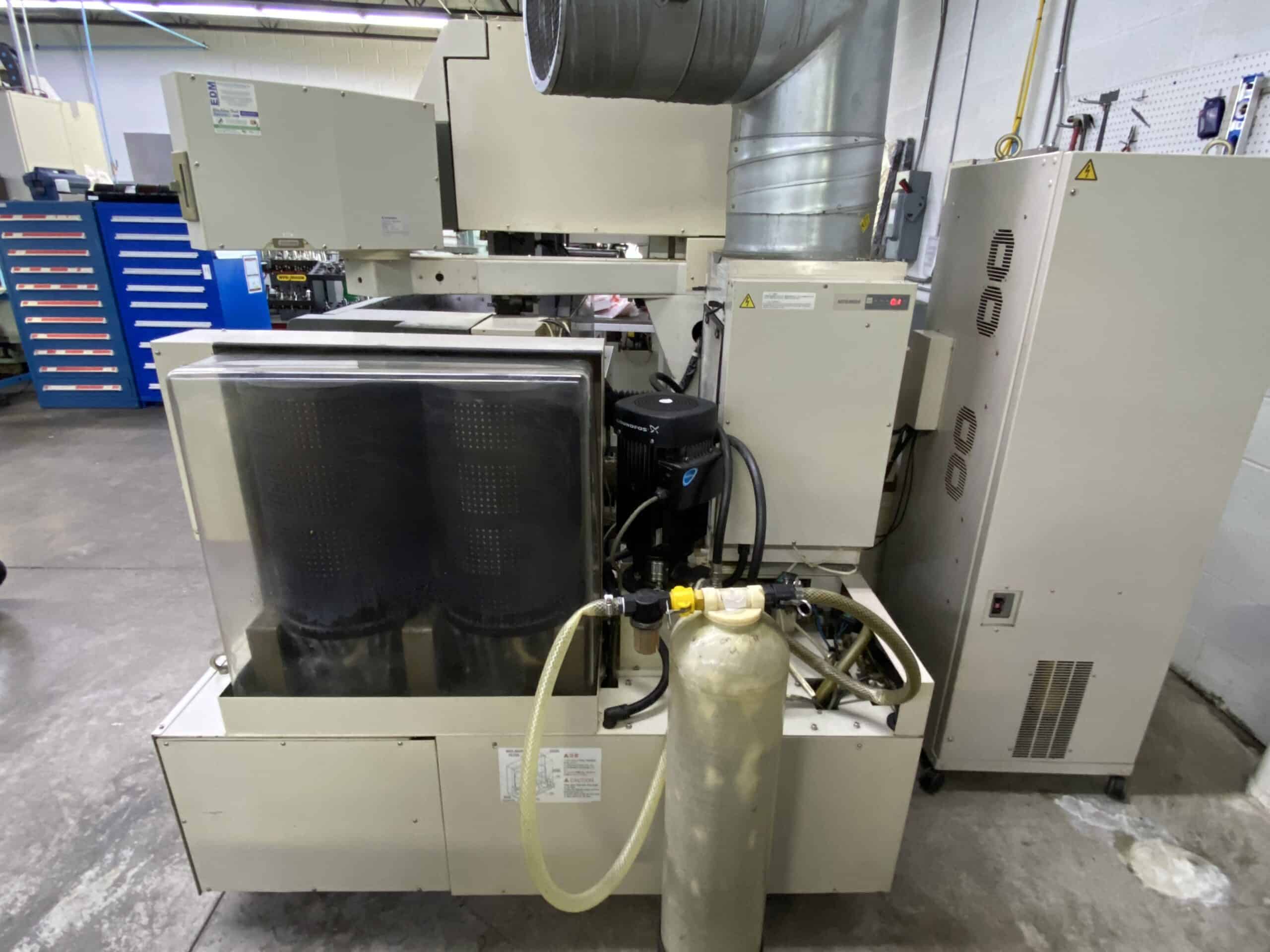

Filter System Paper Cartridge |
|
Filter Type/Precision Type 7/3 Micron |
