| Year | 2015 |
|---|---|
| Make | Hardinge |
| Model | H51MSY |
Description |
CNC Lathe |
| Reference # | 8077315 |

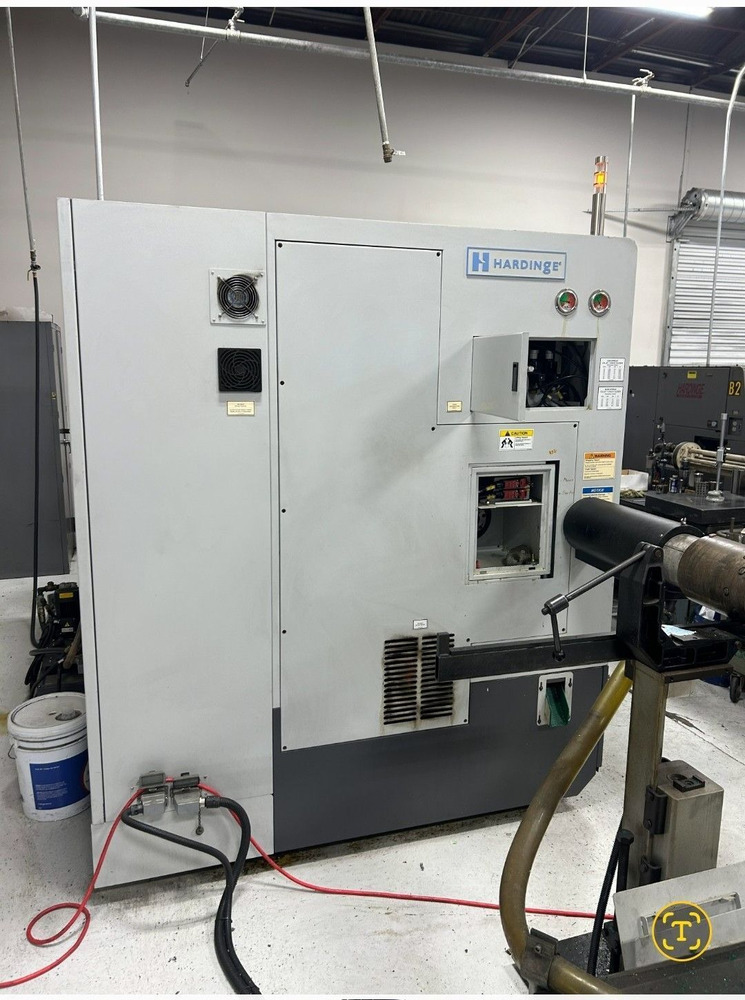

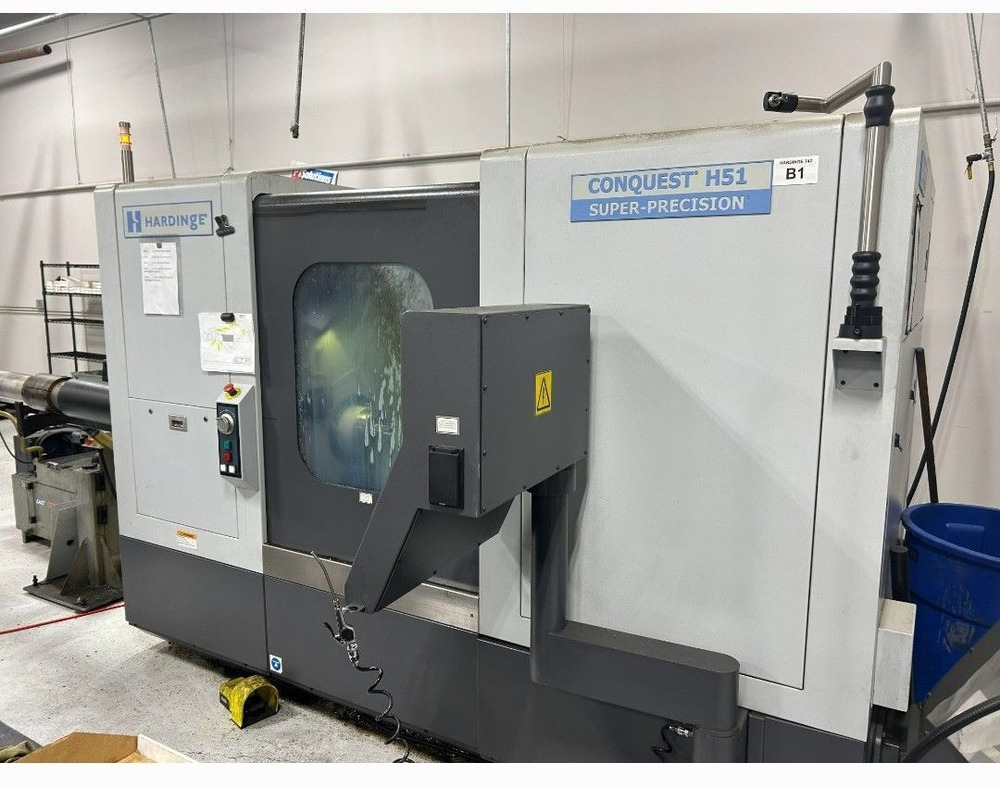

Used Hardinge H51MSY (2015) CNC Lathe for Sale. This pre-owned Hardinge CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Hardinge Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
6" |
|---|---|
| Bar Capacity |
2" |
| Swing |
27.87" |
| Turning Diameter |
12.34" |
| Spindle Speed |
4,700 RPM |

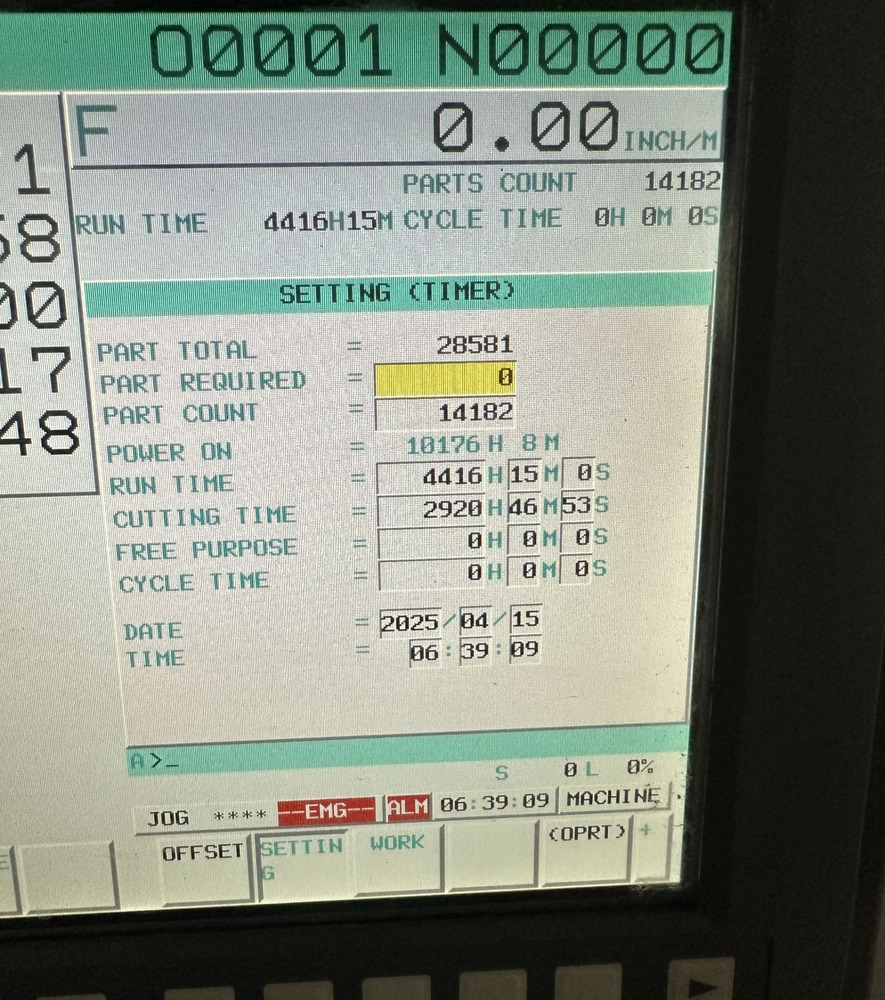

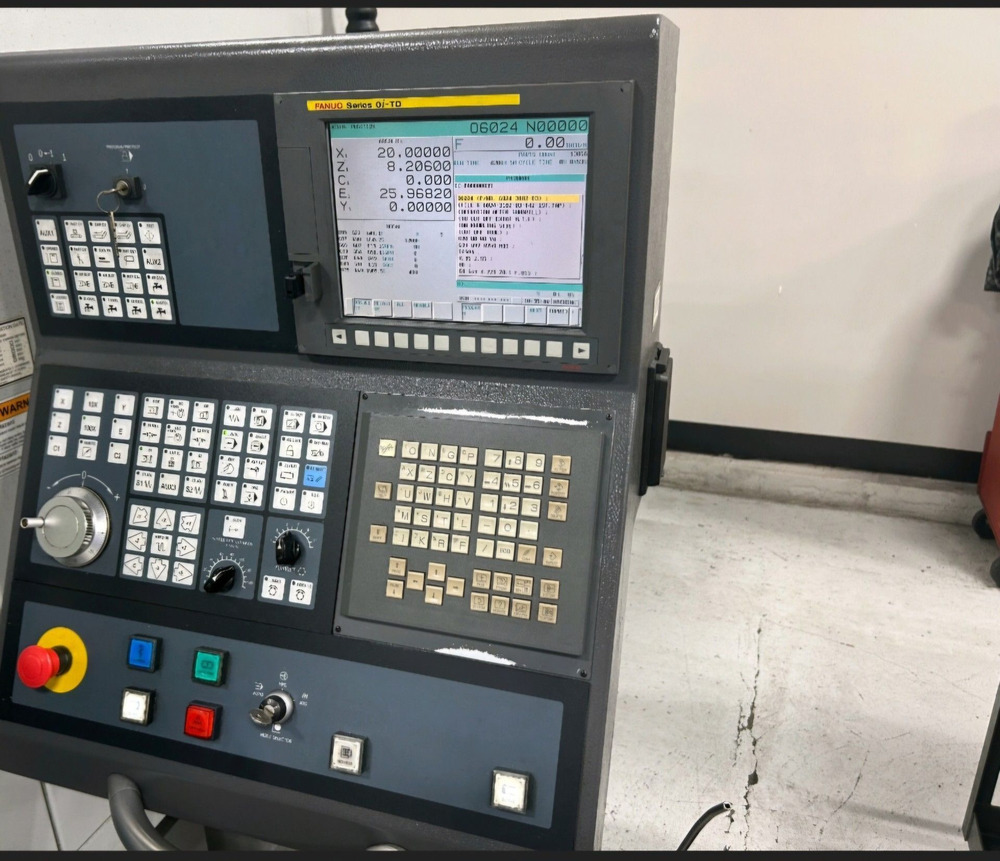

| Control |
Fanuc Oi-TD |
| Distance Between Centers |
28.275" |
| Live Tooling |
Y-Axis, Milling/ C-Axis |

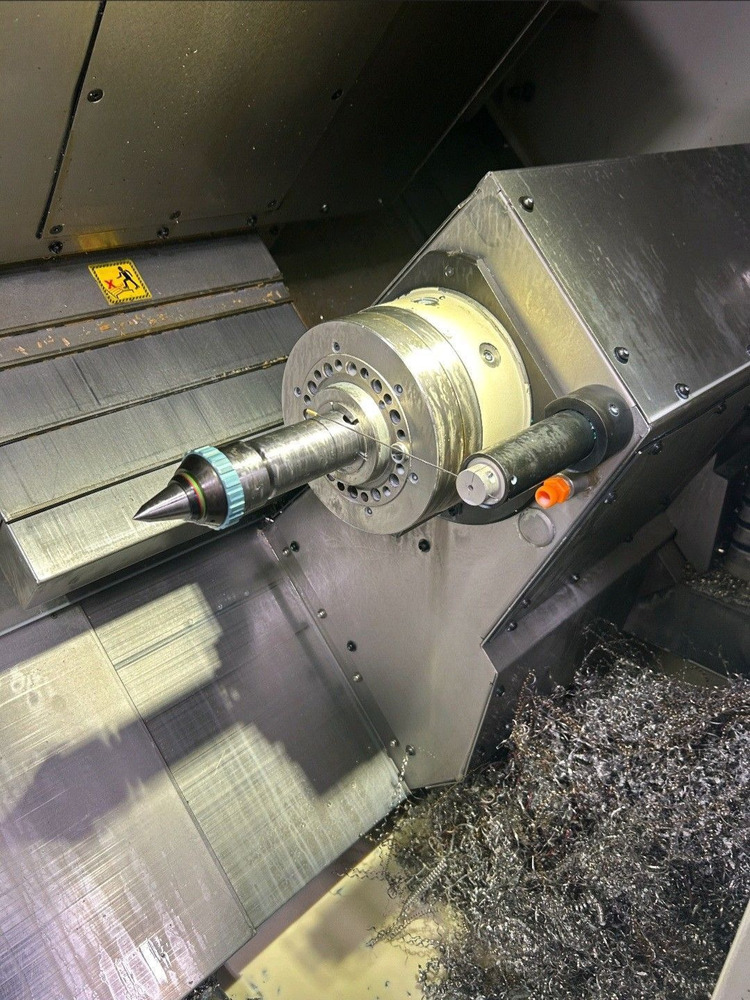

| Sub-Spindle |
Yes |
| Chip Removal |
Chip Conveyor |
| Max Spindle Motor |
20 HP |
| X-Axis Rapid Traverse Rate |
1,100 IPM |
| Z-Axis Rapid Traverse Rate |
1,500 IPM |
| Y-Axis Rapid Traverse Rate |
236 IPM |
| Live Tooling Max Speed |
8,000 RPM |
| Sub Spindle Max Speed |
6,000 RPM |
| Sub Spindle Motor |
10 HP |
| Machine Dimensions |
120" x 103" x 84.7" |
| Approx Machine Weight |
13,500 Lbs |
Features
|

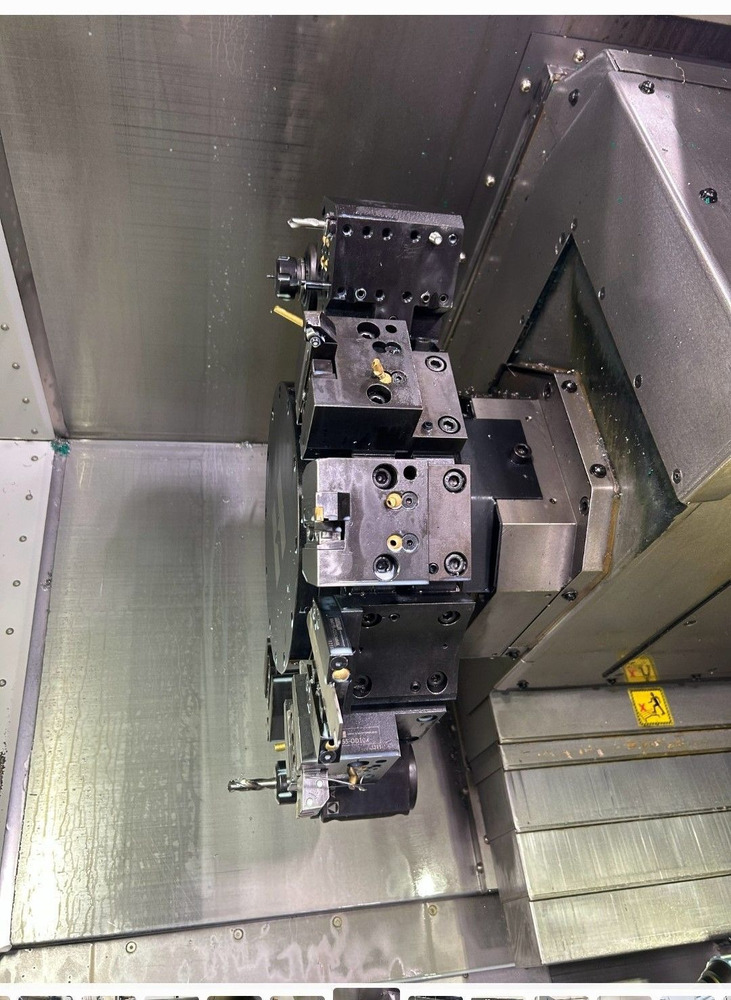

BMT-55 Live Tooling Top Plate |

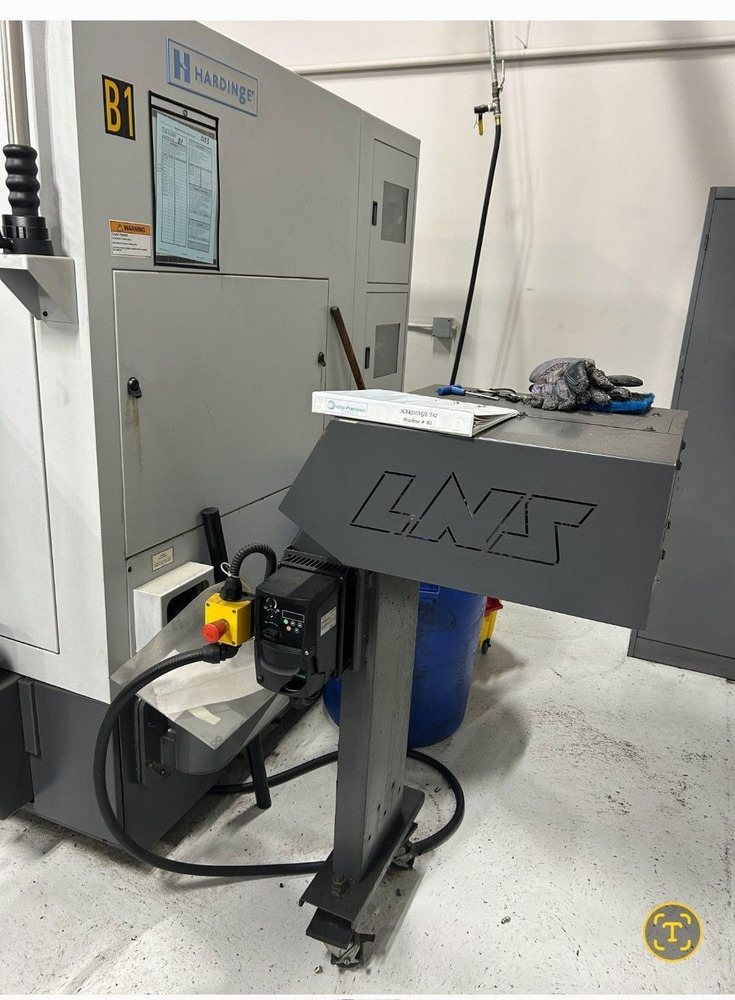

LNS Super Hydrobar Barfeed |
|

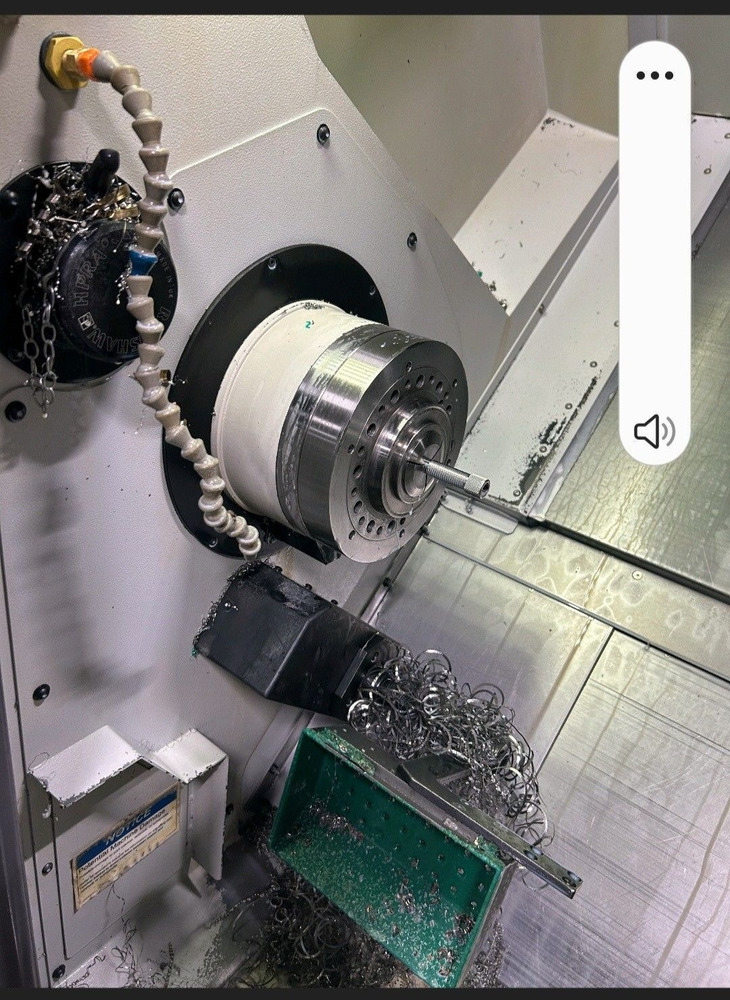

Parts Catcher Main Spindle |
Tool Setter (Manual Plug-in) |
|
All Available Tooling |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
