| Year | 2018 |
|---|---|
| Make | Doosan |
| Model | Lynx 2100LSYB |
Description |
CNC Lathe |
| Reference # | 8072524 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

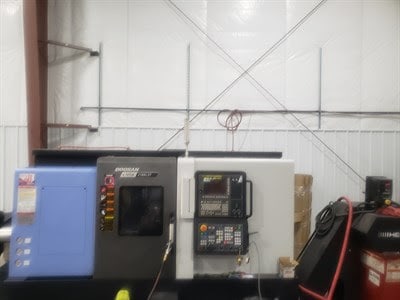

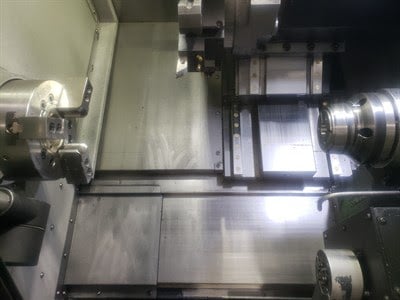

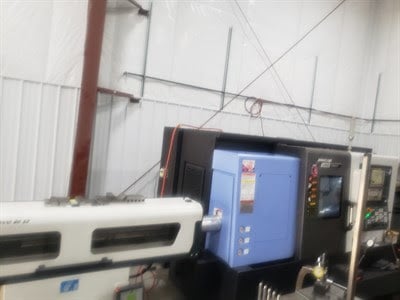

Used 2018 Doosan Lynx 2100LSYB (2018) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.6" |
| Swing |
23.6" |
| Turning Diameter |
11.8" |
| Spindle Speed |
4,500 RPM |

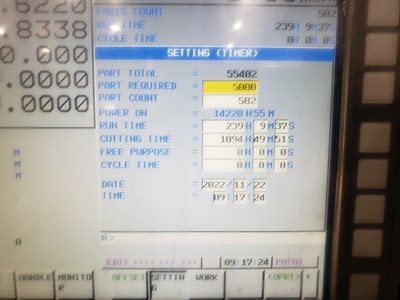

| Control |
Fanuc i Series |
| Distance Between Centers |
20.1" |

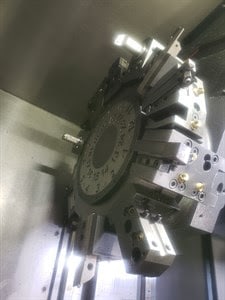

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Spindle Motor (Main) |
20 HP |

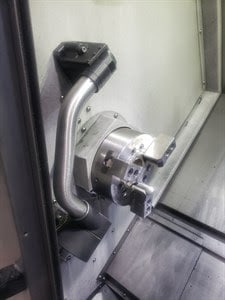

| Sub-Spindle |
6,000 RPM, 7.5 HP |
| X-Axis Travel (X1, X2, X3) |
8.1" |
| Y-Axis Travel (Y1, Y2, Y3) |
4.13" |
| Z-Axis Travel (Z1, Z2, Z3) |
22" |
| C-Axis |
.001 Degree |
| Rapid Traverse Rates X1, X2, X3 |
1,181 IPM |
| Rapid Traverse Rates Z1, Z2, Z3 |
1,417 IPM |
| Rapid Traverse Rates Y1, Y2, Y3 |
394 IPM |
| Spindle Bore Diameter (Main/Sub) |
3" / 1.7" |
| Chip Removal |
Chip Conveyor |
| Machine Weight |
9,230 Lbs |
Features
|
Auto Tool Presetter |
Barfeed Interface |
|

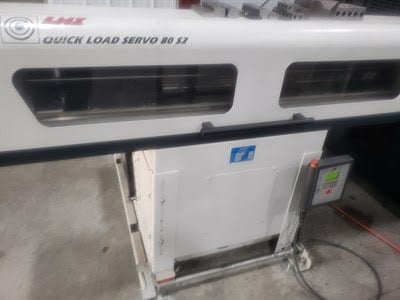

LNS Quick Load Servo S2 Barfeeder |
Parts Catcher |
|
Parts Conveyor |
A2-6 Spindle Nose (Main) |
|
BMT 55 Turret |
Collet Nose |
|
Flat 110 Spindle Nose (Sub) |
Full Complement of Rotary and Static Holders |
