| Year | 2018 |
|---|---|
| Make | Leadwell |
| Model | T-75MY |
Description |
CNC Lathe |
| Reference # | 8075216 |

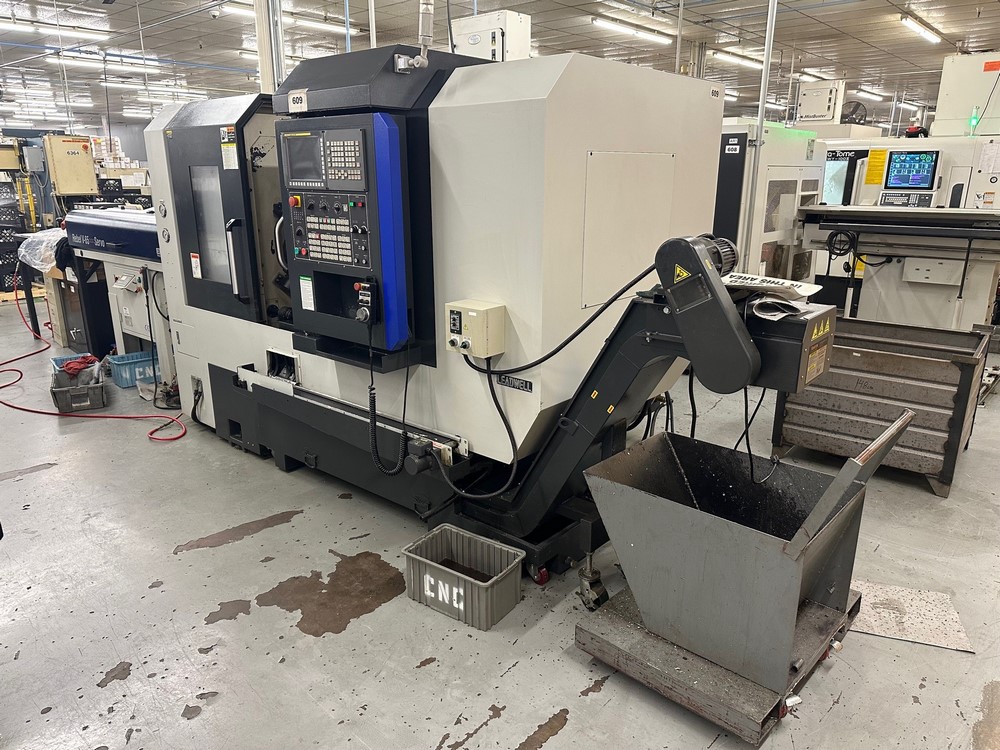

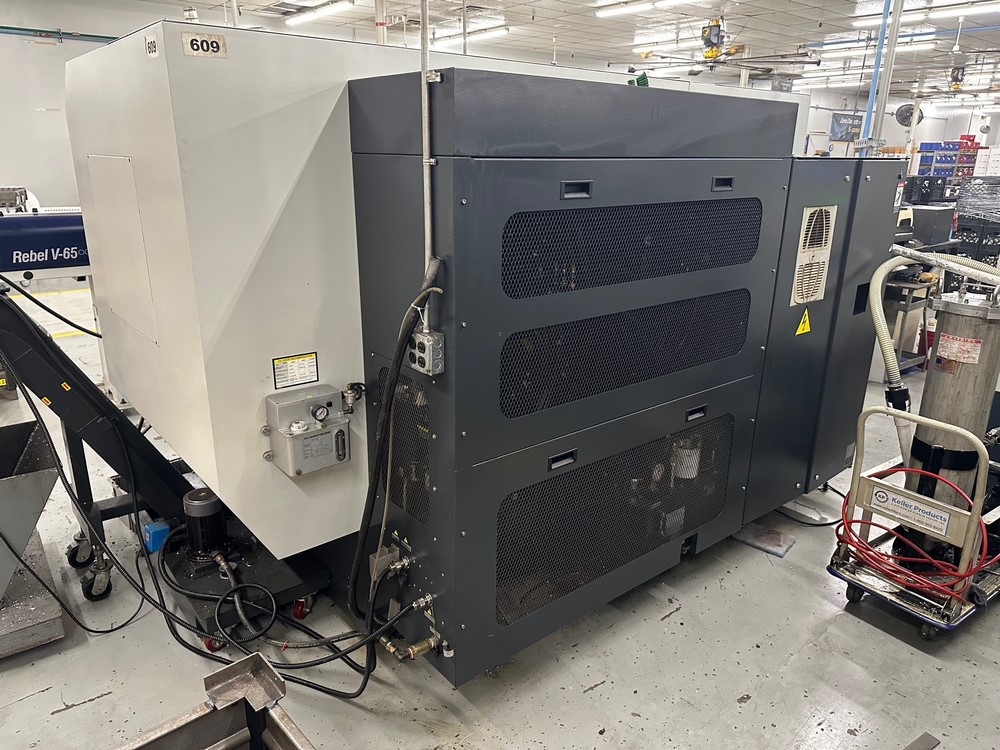

Used Leadwell T-75MY (2018) CNC Lathe for Sale. This pre-owned Leadwell CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Leadwell Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
24.8" |
| Turning Diameter |
14.9" |
| Spindle Speed |
4,500 RPM |

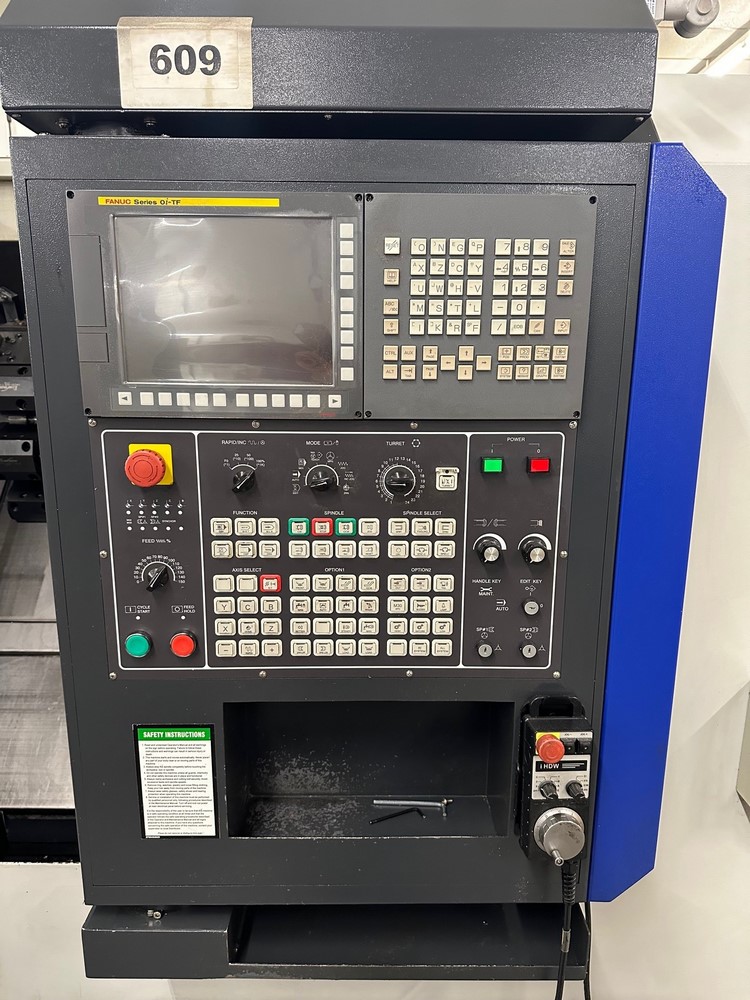

| Control |
Fanuc OI-TF CNC |
| Distance Between Centers |
18" |

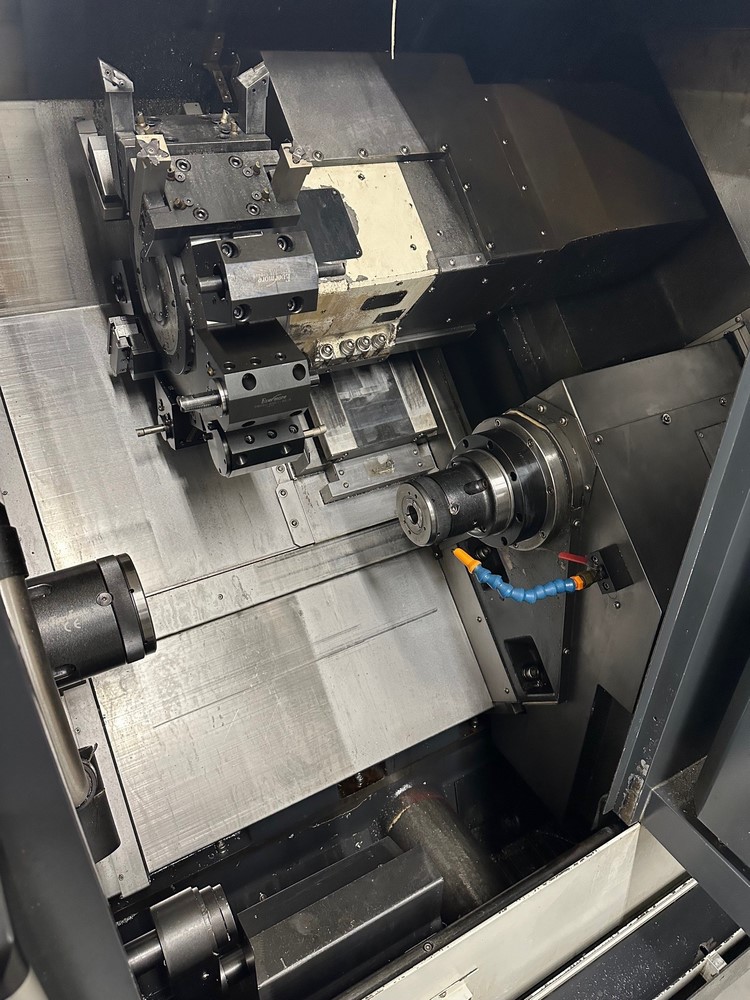

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |

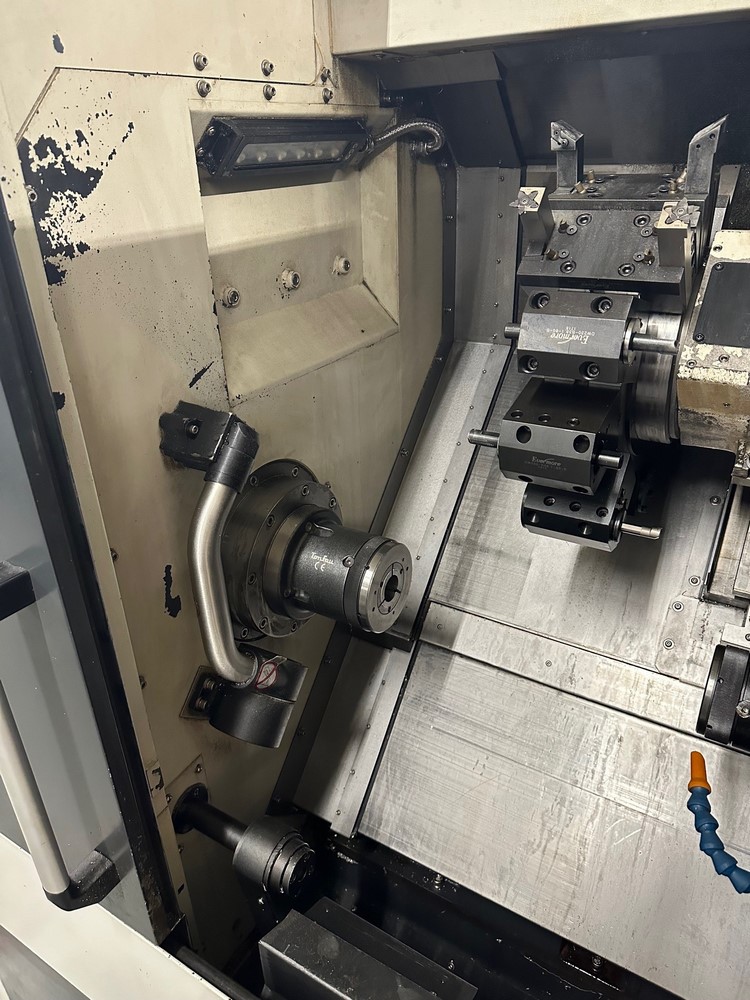

| Sub-Spindle |
Yes |
| Power Requirement |
220V / 3 PH |
| X-Axis Travel |
8.1" |
| Z-Axis Travel |
17.7" |
| Y-Axis |
+/- 1.97" |
| B-Axis |
19.7" |
| C-Axis |
0.001" |
| Main Spindle Nose |
A2-6 |
| Main Spindle Bore |
3.0" |
| Sub Spindle Nose |
A2-5 |
| Sub Spindle Chuck Size |
6" |
| Sub Spindle Bar Capacity |
1.63" |
| Sub-Spindle Spindle Bore |
2.0" |
| Sub-Spindle Spindle Speed |
6,000 RPM |
| Indexing Time Tool-to-Tool |
1.0 Sec. |
| Max. Workpiece Weight |
375 lbs |
| Approx. Shipping Weight |
15,000 Lbs. |
| Approx. Shipping Dimensions |
21' x 8' X 7' |
Features
|
Edge Technologies Rebel V-65 Servo Bar Feed |
Hydraulic Turret Clamping |
|
Keyarrow Chip Conveyor |
Live Tool Turret |
|
Coolant System |
Parts Catcher |
|
Tool setter |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
