| Year | 2020 |
|---|---|
| Make | Haas |
| Model | ST-20Y |
Description |
CNC Lathe |
| Reference # | 8072132 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

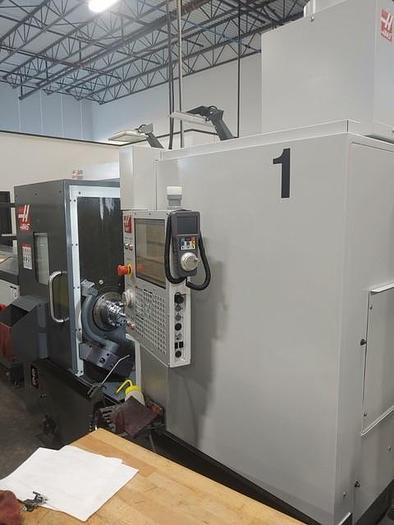

Used Haas ST-20Y (2020) CNC Lathe for Sale. This pre-owned Haas CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Haas Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
2.56" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
21" |
| Turning Diameter |
11.75" |
| Spindle Speed |
4,000 RPM |

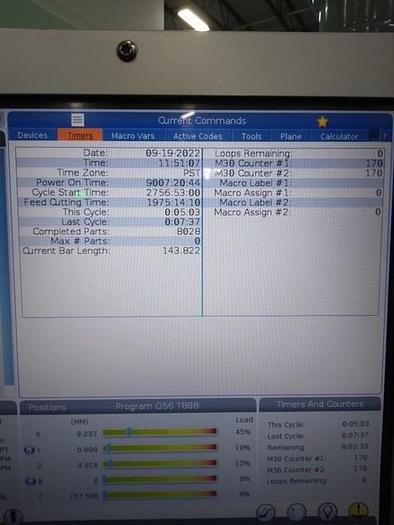

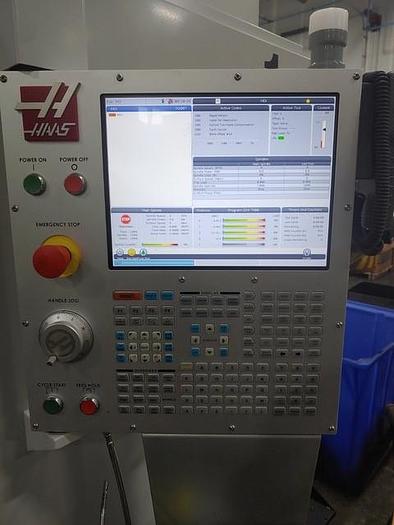

| Control |
Haas Next Gen CNC Control |
| Distance Between Centers |
22.5" |

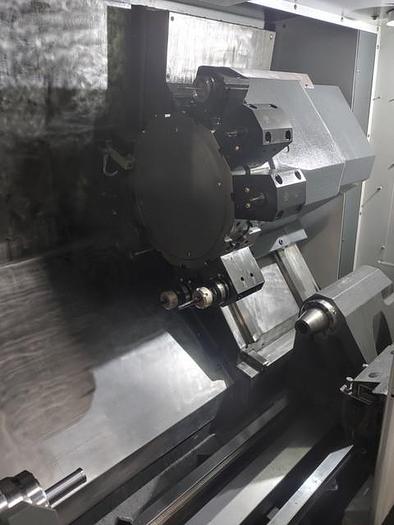

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Spindle Motor |
20 HP |
| X-Axis Travel |
8.4" |
| Y-Axis Travel |
+/- 2" |
| Z-Axis Travel |
22.5" |
| Rotation |
.01 Deg |
| Spindle Bore |
3.5" |
| Rotary Tool Speed |
4,000 RPM |
| Rotary Motor |
5 HP |
| Rapid Traverse X |
472 IPM |
| Rapid Traverse Y/Z |
945 IPM |
| Chip Removal |
Chip Conveyor |
| Machine Dimensions |
142" x 90" x 92" |
| Machine Weight |
10,480 Lbs |
Features
|
55-Gallon Coolant Tank |
Auto Tool Presetter |
|
Ethernet Interface |
1 GB Standard Program Memory |
|
MT #4 Taper |
Parts Catcher |
|
Tailstock |
A-26 Spindle Nose |
|
User-Definable Macros |
Visual Part Programming System |
|
BMT65 Driven Toolholder Kit (1) 90 degree and (1) straight |
BMT65 Standard Toolholder Kit |
|
Early Power-Failure Detection Module |
HaasConnect: Remote Monitoring |
|
HAASDrop |

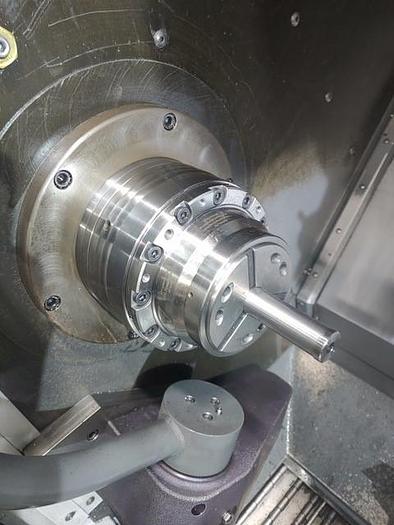

Hainbuch Spanntop Mini Chuck Size 65mm Collet |
|
Media Display M-Code (M130) |
