| Year | 2021 |
|---|---|
| Make | Okuma |
| Model | Space Turn LB4000EXII |
Description |
CNC Lathe |
| Reference # | 8071936 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

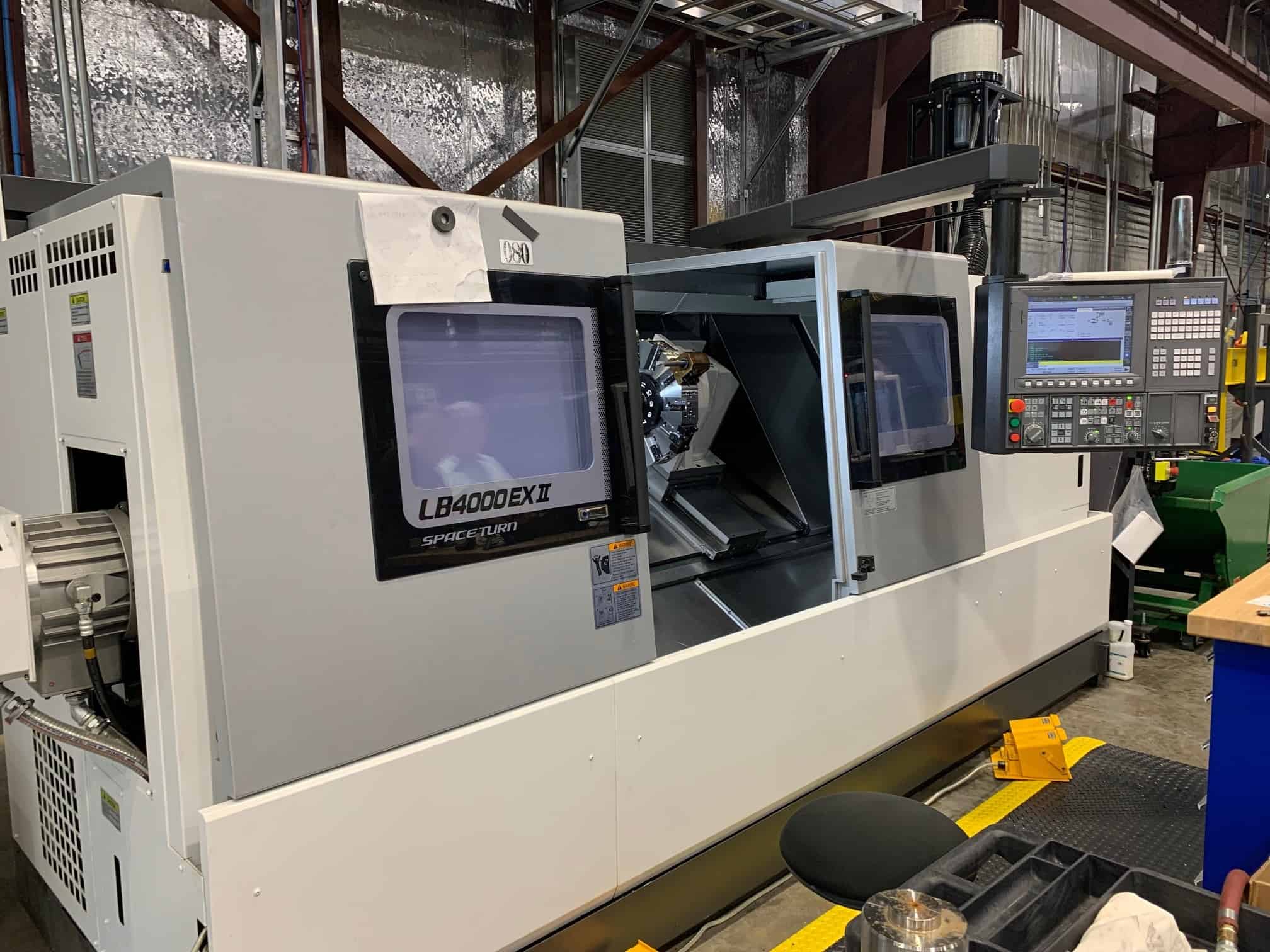

Used Okuma Space Turn LB4000EXII (2021) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

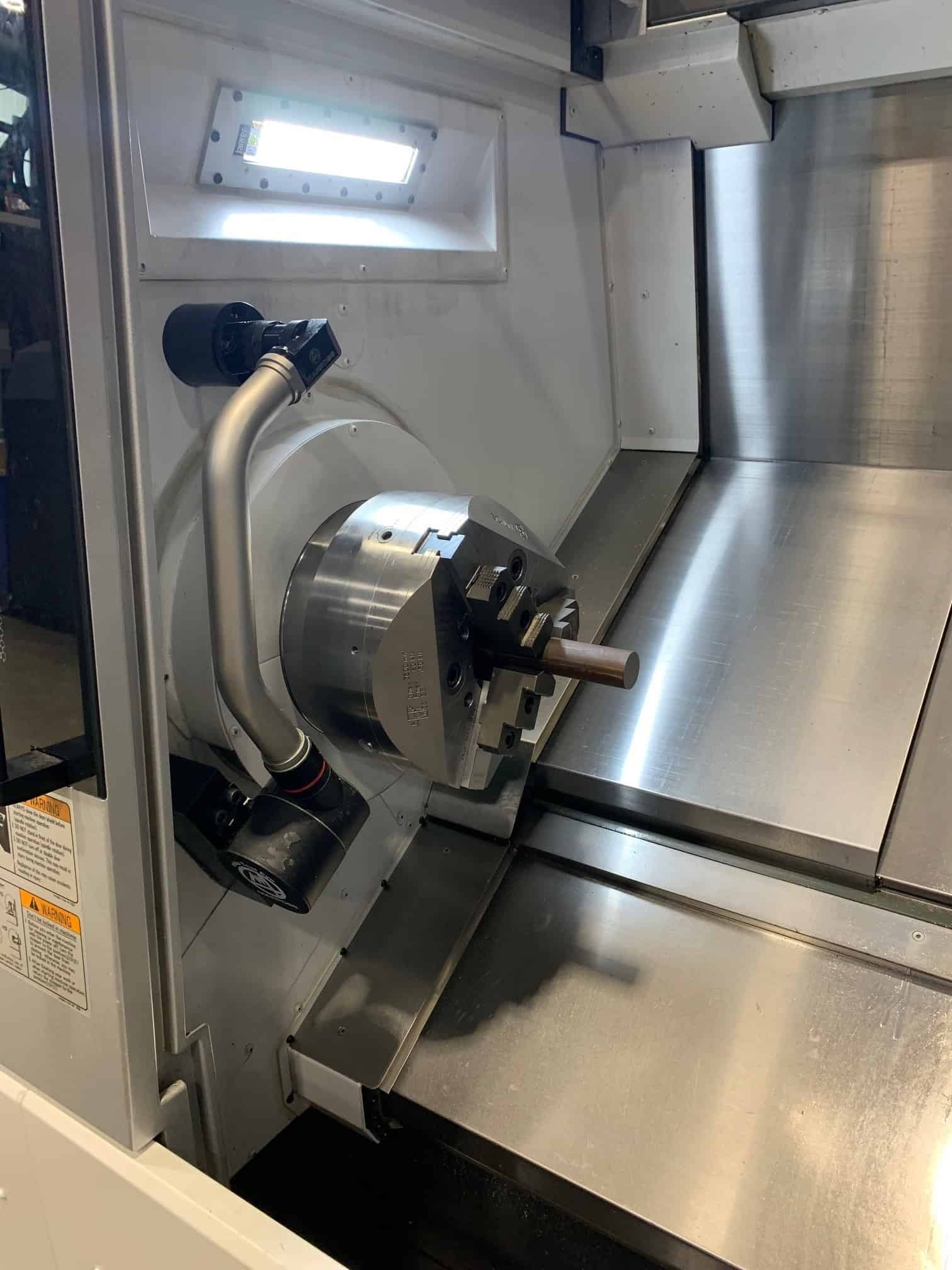

| Chuck Size |
12.4" |
|---|---|
| Bar Capacity |
4.01" |
| Swing |
26" |
| Turning Diameter |
18.9" |
| Spindle Speed |
3,000 RPM |
| Control |

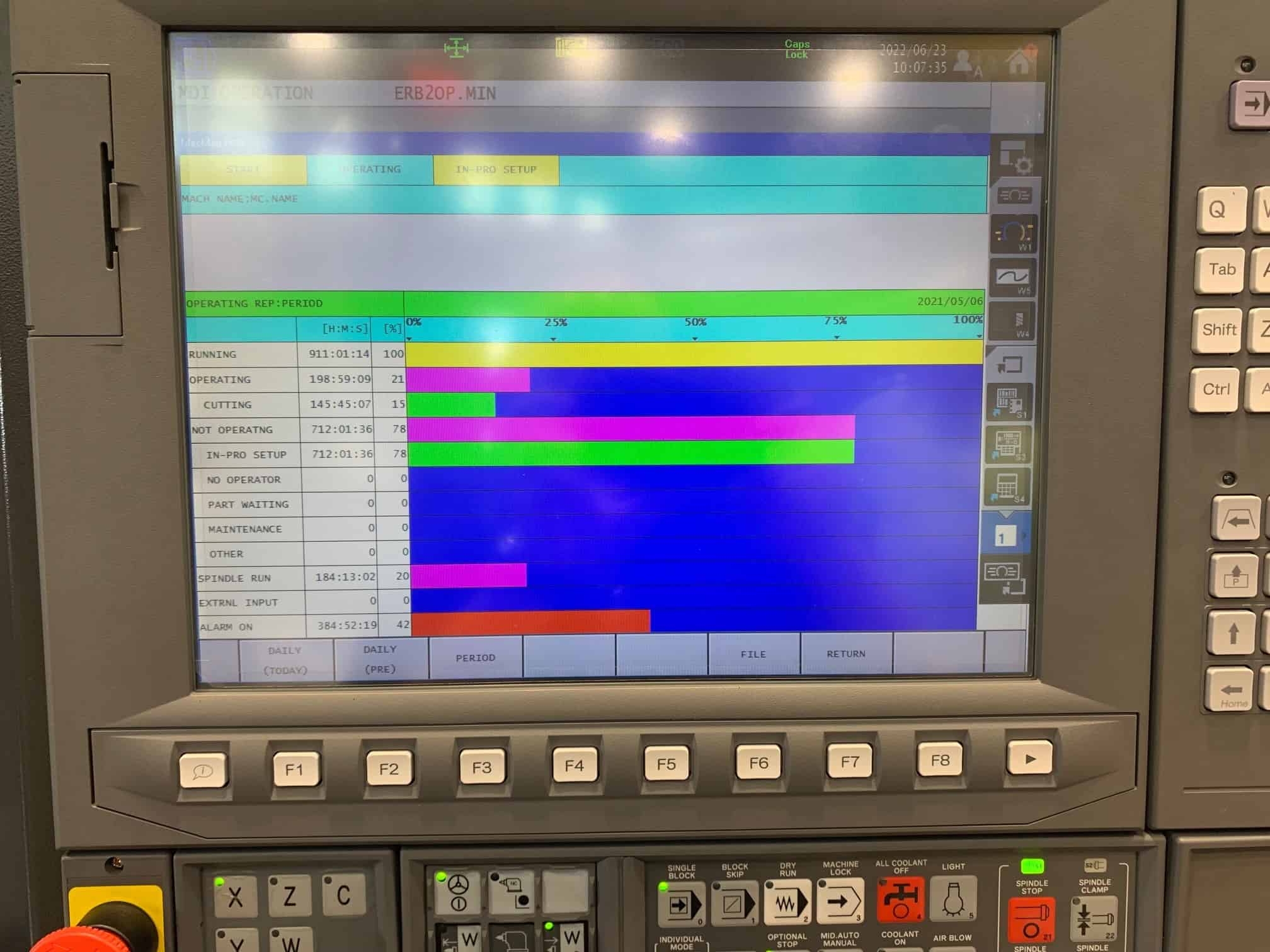

Okuma OSP P300 LA |
| Distance Between Centers |
60" |
| Spindle Bore |
4" |
| Spindle Motor |
50 HP |
| Spindle Torque |
869 Ft/Lb |

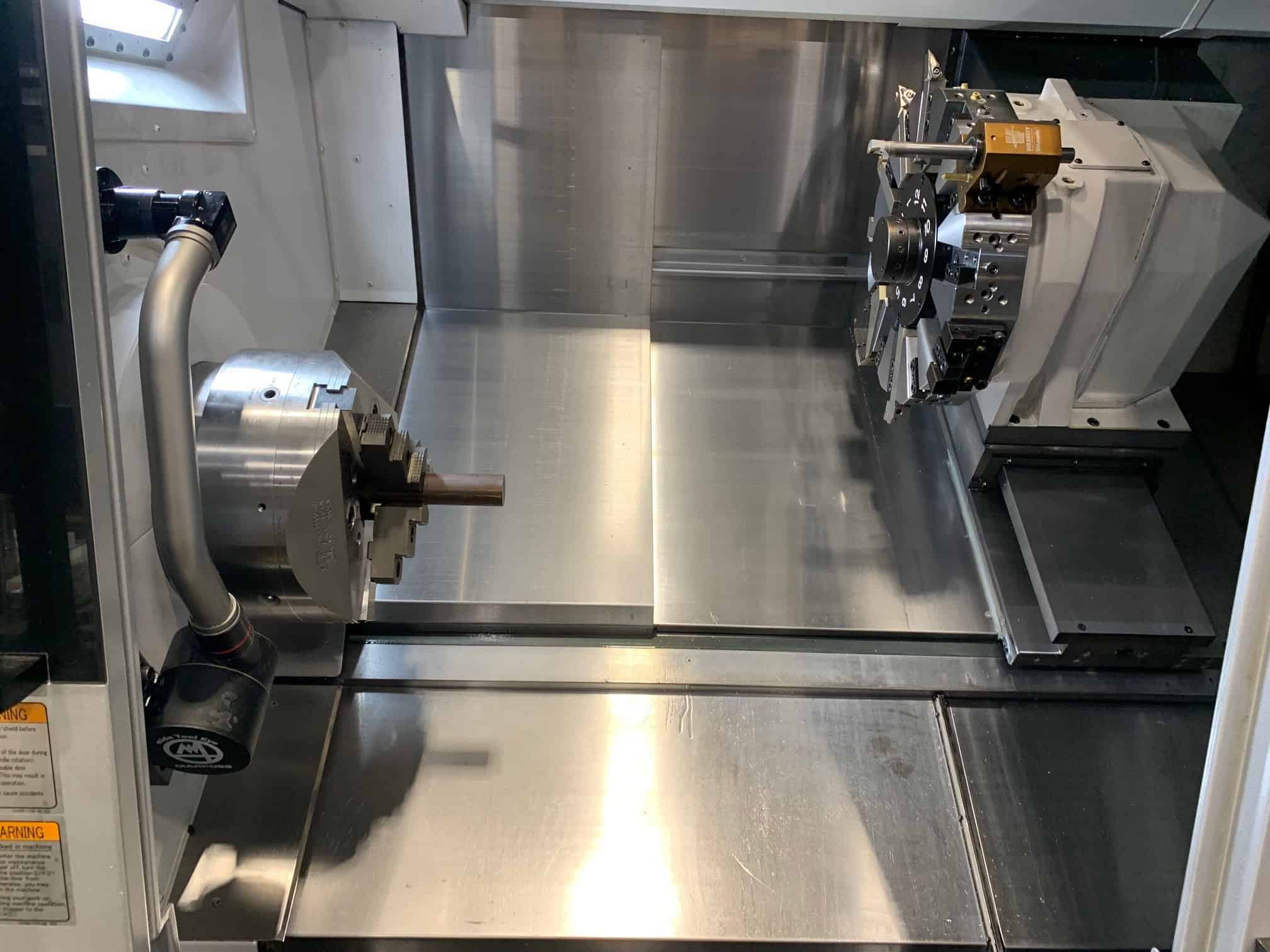

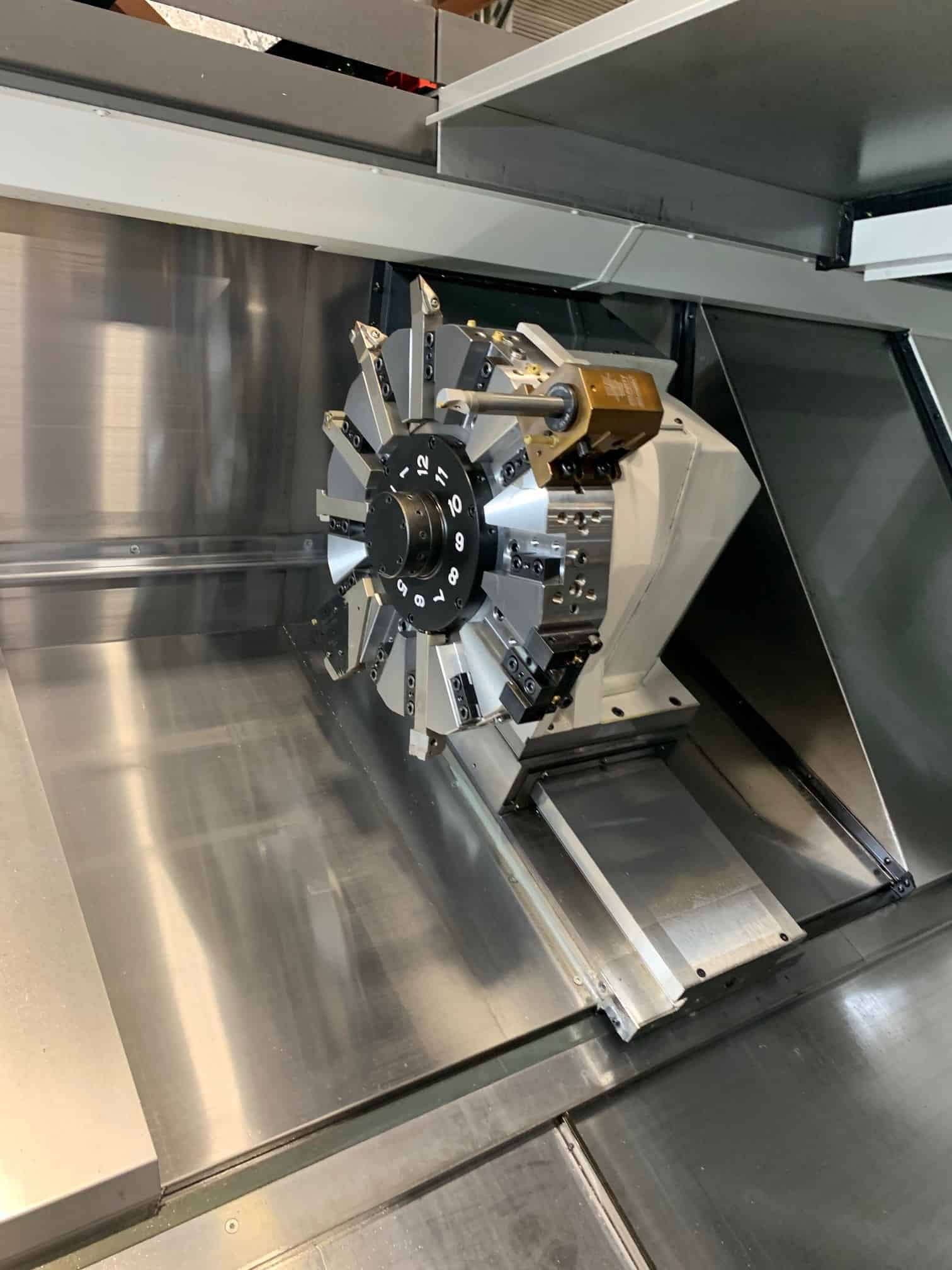

| Turret |
12 Station |
| Chip Removal |

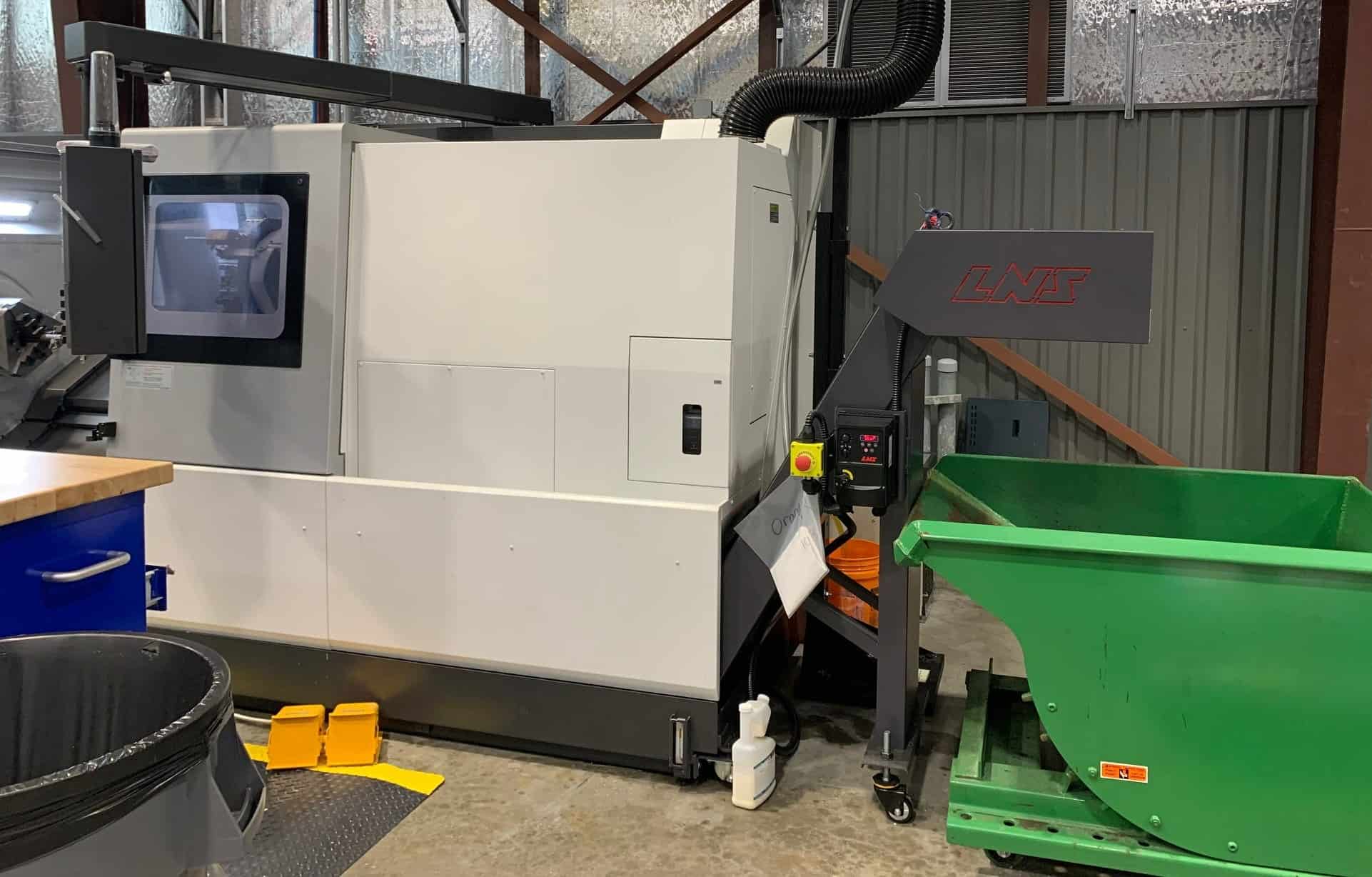

LNS Right Hinge 52" Chip Conveyor |
Features
|
Auto Tool Presetter |
Rapid Traverse Override Switch |
|
(8) Sets Spare M-Codes |
Rota THW3 3-Quick Jaw Change Chuck |
|
Royal Filtermist |

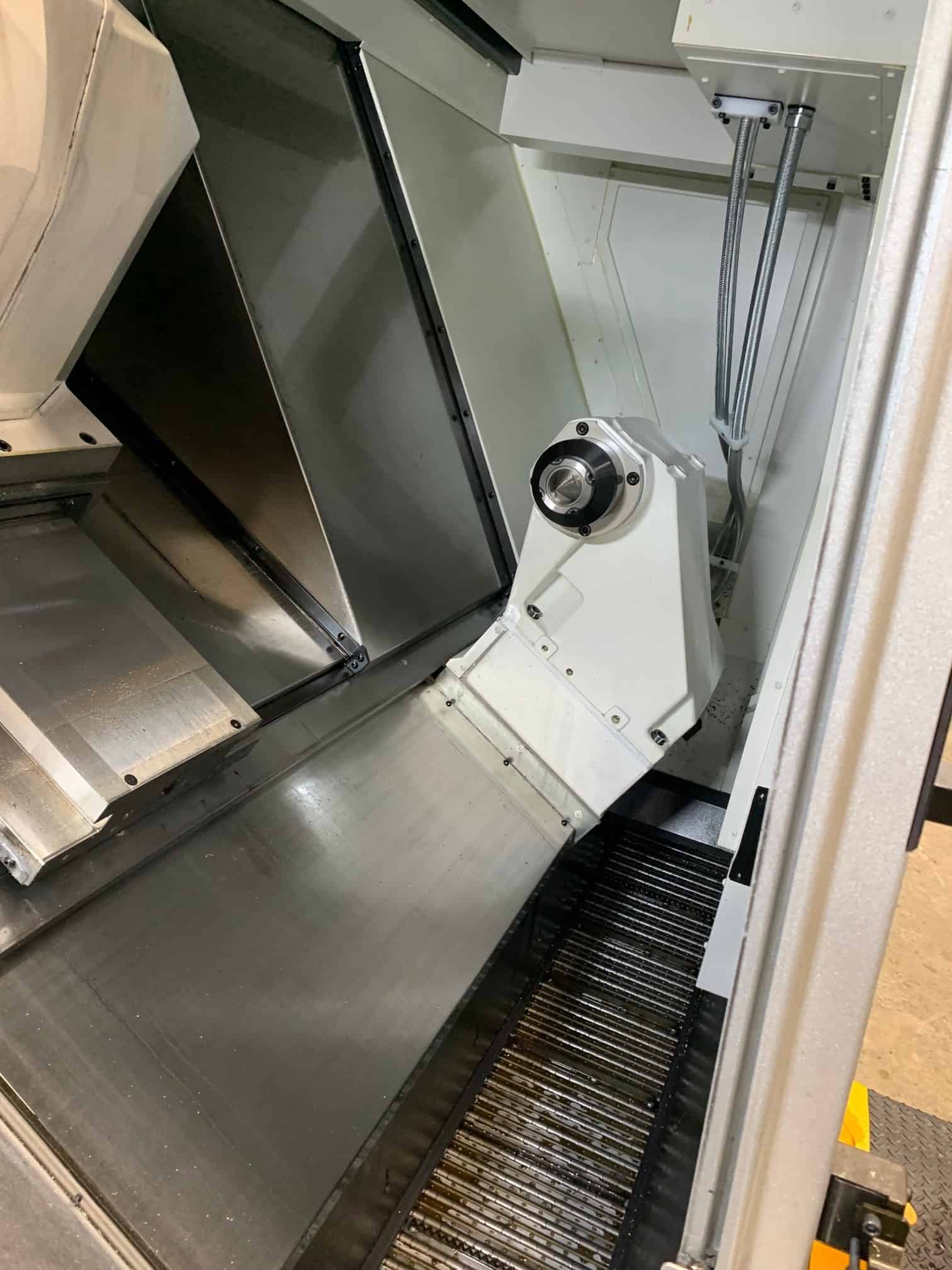

Programmable Tailstock |
|
Static Toolholder Kit |
Temperature Regulator |
|
Variable Spindle Speed Threading |
Ball Screw Driven Tailstock |
|
Big Bore |
Hydraulic Oil |
|
JIS A2-11 Spindle Nose |
Live Sleeve with Dead Center |
|
Manual Touchsetter |
Multi-Tap Transformer |
|
Negative Tool Radius Comp |
