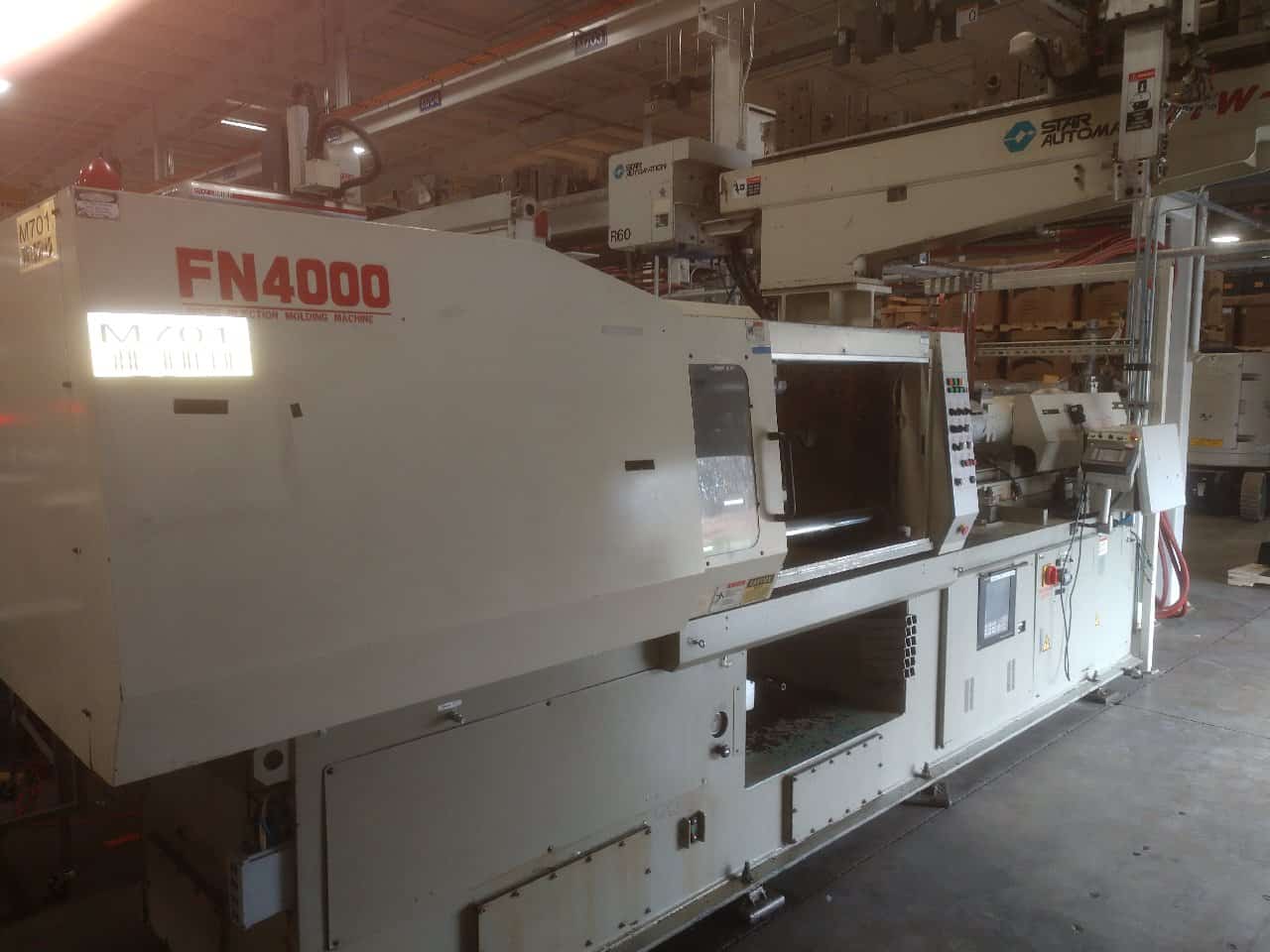

Year | 1999 |
---|---|
Make | Nissei |
Model | FN4000-36A |
Description |
200 Ton 11 oz Shot Size Injection Molding Machine |
Reference # | 8070106 |
Price |
Activate Pricing |
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
Specifications
Capacity |
200 Ton |
---|---|
Shot Size |
11 oz |
Tie Bar Spacing |
20.9" x 20.9" |
Platen Size |
30.3" x 30.3" |
Clamp Stroke |
27.6" |
Min / Max Daylight |
9.8" / 37.4" |
Ejector Stroke |
4.3" |
Horsepower |
40 |
Approx Dimensions (LxWxH) |
224.6" x 52.8" x 76.8" |
Approx Machine Weight |
15,500 lbs |

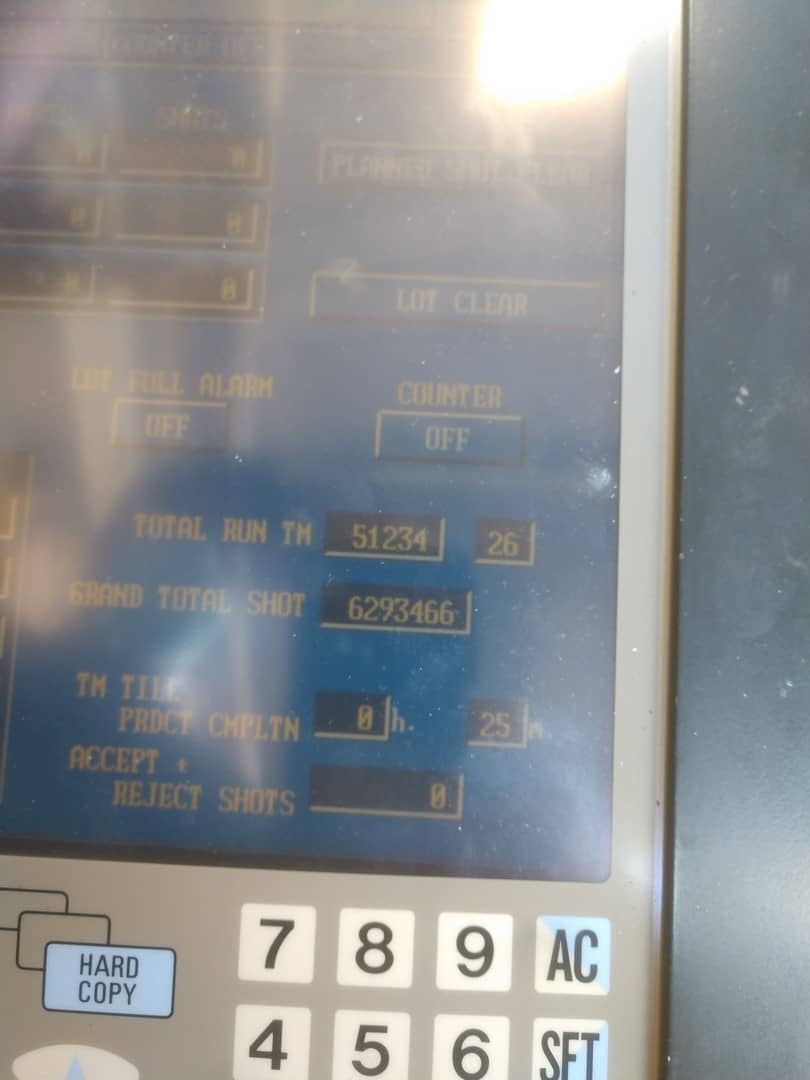

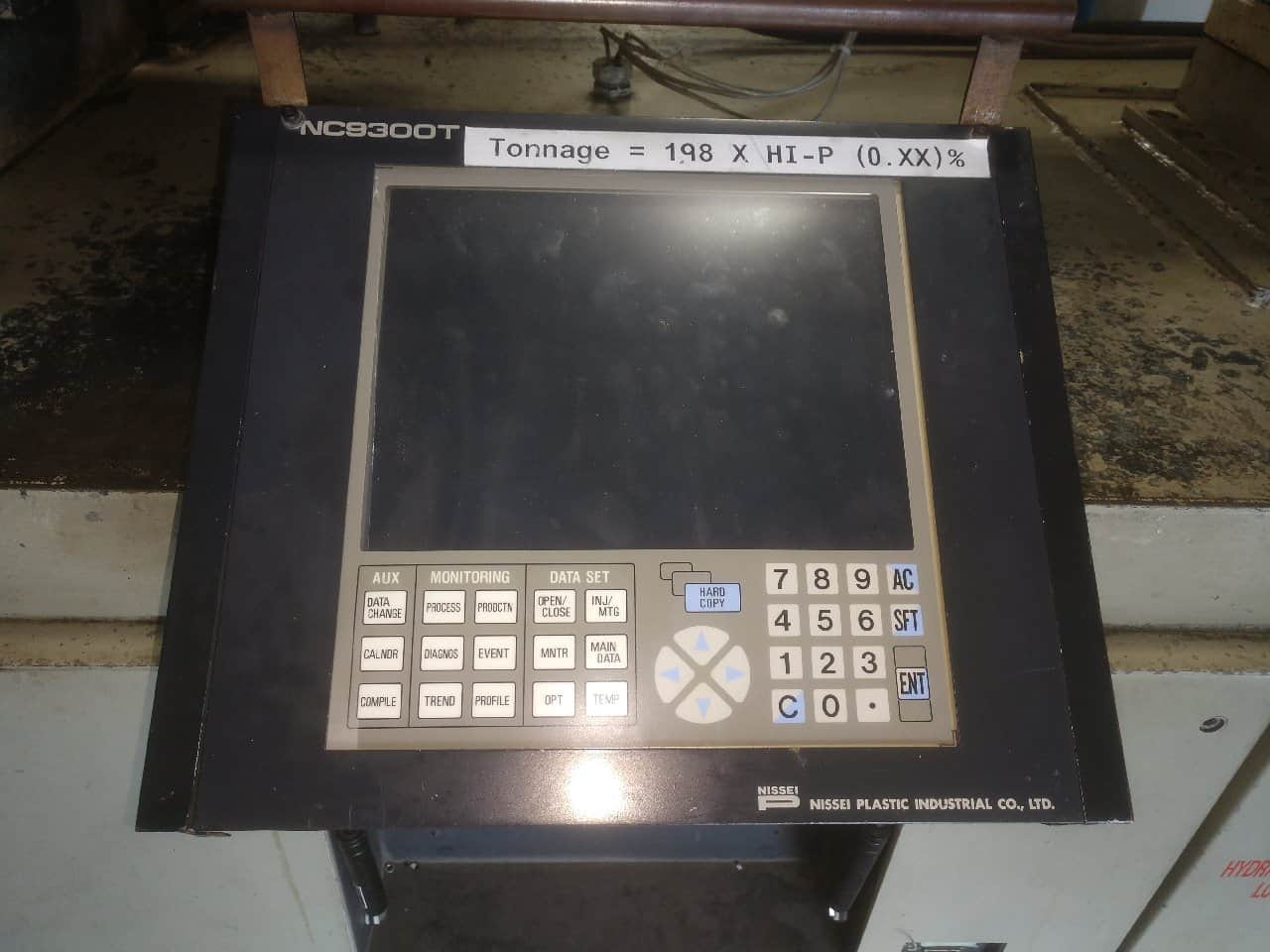

Control |
NC-9300T |
Features
Core Pull |
Hydraulic Knockout |
Robot Interface |
Under Power |
